1. 4 input Recorder
2. ตั้งเวลาบันทึกแบบแยกอิสระ 4 input
3. รองรับการเชื่อมต่อและการจัดการต่างๆกับ BlackMagic Design Videohub switcher ผ่านทาง lan
4. ระบบรองรับการจัดการบันทึกไปยัง folder ต่างๆ
5. ระบบรองรับการทำงานบน Windows 7 SP1 64 bit and Windows 8.1 SP1 64 bit เท่านั้น
6. รองรับ AJA / DeckLink or Intensity cards เท่านั้น

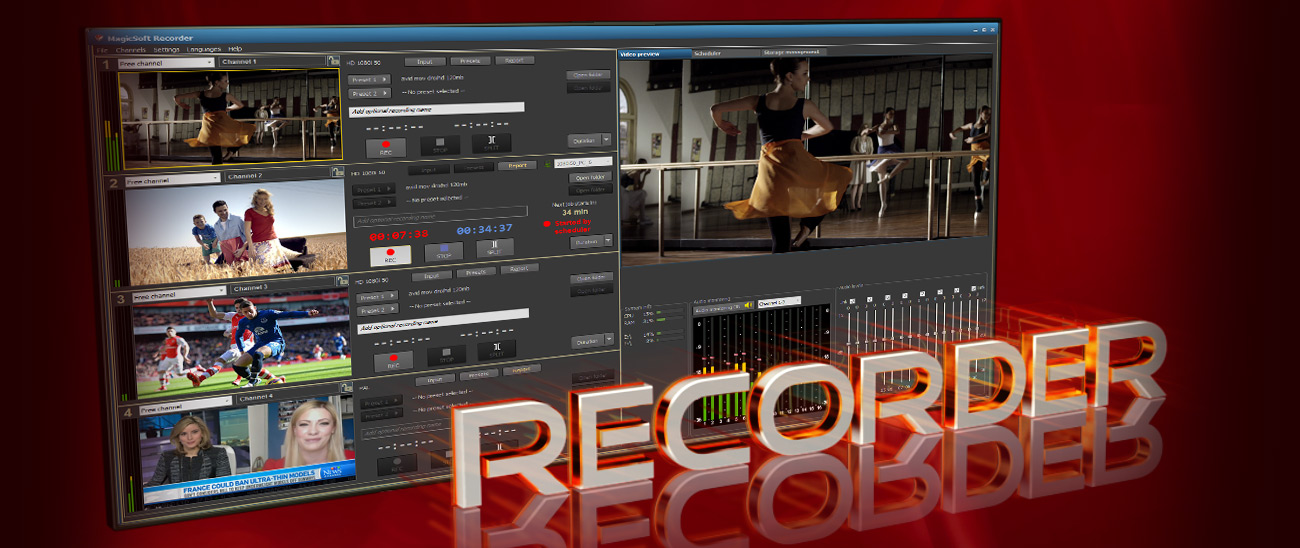

MagicSoft Recorder - Ingest Application for Broadcast and Post-production

MagicSoft Recorder is an ingest application designed for the broadcast and post-production markets.
The supported operating systems are Windows 7 / 8 / 8.1 / 10 and Windows Server 2012 / 2016 ( 64-bit versions only ).
It is particularly useful for multicam ingest and conformance recording because it supports up to 8 video inputs and each input supports 2 simultaneous recordings.

MagicSoft Recorder has modules for :
       - "TimeCode and NLE support" that adds support for timecode, inserting marks and saving projects for Final Cut Pro/Edius/Premiere/Vegas
       - "Web Browser Remote" that adds support for monitoring and managing the channels by using a web browser from Windows/MacOSX/iOS/Android

The software can generate proxy resolutions for all video modes.
Up-converted 1080i files can be generated when the input is set to SD (either 4/3 or 16 /9).
Down-converted files can be produced as follow :
         - 1080i modes can produce down-converted PAL or NTSC
         - 1080p (50 and 59.94) modes can produce down-converted 720p
         - 4K UHD modes can produce down-converted 1080p
         - 4K UHD (50 and 59.94) modes can also produce down-converted 720p

Features added by MagicSoft Recorder ver 3 :
       - support for NDI inputs (both YUV and RGBA modes are supported)
       - possibility to set a workflow for capturing on 8 bit or 10 bit for the incoming video
       - a lower CPU and RAM bandwidth consumption are archived for an 8 bit capturing workflow
       - using an intermediary storage buffer to overcome the storage problems encountered when using an over-the-network storage
       - added indicators into the user interface for the level of input buffer and storage buffer

By default, Magicsoft Recorder is able to resume automatically a recording operation in cases like :
       - lost input signal
       - computer restart
       - video mode changed (if the channel is set on "Auto-detect" mode)

The software contains a watch-dog application that ensures the functionality of the MagicSoft Recorder and sends the status and alerts by SMTP email.

MagicSoft Recorder works for all video modes by capturing the input video as YUV 4:2:2 10 bit and it can process up to 16 audio channels (32 bit 48KHz) depending on capabilities on the used frame-buffer. The files can be stored locally or over the network shared locations.

Supported inputs (depending on the capability of the used cards) :
          - SDI with audio embeded
          - SDI with audio AES
          - YUV with analog audio
          - Composite with analog audio
          - HDMI
