AG-UX180 VS AG-UX90

5 ปีที่ผ่านมา

โดย เจ้าของร้าน

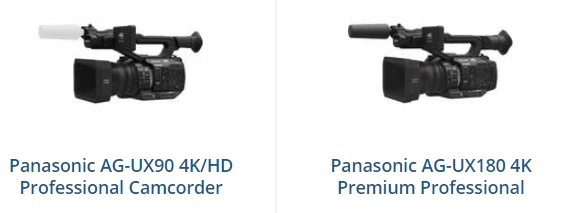

PANASONIC AG-UX180 VS PANASONIC AG-UX90 ต่างกันอย่างไร

Technical Specifications	Panasonic AG-UX90 4K/HD Professional	Panasonic AG-UX180 4K Premium
Image Sensor	1-Chip 1" MOS Sensor	1-Chip 1" MOS Sensor
Effective Sensor Resolution	8.59 MP	9.36 MP
Gain	0 to 30 dB (Native) -3 to 30 dB	0 to 24 dB (Native),-3 to 24 dB
Minimum Illumination	1.3 lux at 1/30 Shutter Speed	0.2 lux at 1/2 Shutter Speed
White Balance Range	2000 to 15,000K	2000 to 15,000K
Focal Length	8.8 to 132mm	8.8 to 176mm
35mm Equivalent Focal Length	35.4 to 531mm	24 to 480mm
Optical Zoom Ratio	15x	20x
Minimum Focusing Distance	3.3' / 1.0 m	3.3' / 1.0 m
Filter Size	67 mm	67 mm
Shutter Speed	1/2 to 1/8000 sec	1/2 to 1/8000 sec
Built-In ND Filter	Mechanical Filter Wheel with 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16) ND Filters	Mechanical Filter Wheel with 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16) ND Filters
Recording Media	1 x SDXC UHS-I Card Slot	2 x SDXC UHS-I Card Slots
	2 x SDXC Card Slots
Recording Modes	MP4 4:2:0 8-Bit:	MP4:
	3840 x 2160 at 23.98/29.97 fps (100 Mb/s)	4096 x 2160 (100 Mb/s)
	1920 x 1080 at 23.98/29.97/59.94 fps (50 Mb/s)	3840 x 2160 (100 to 200 Mb/s), 1920 x 1080 (50 to 200 Mb/s)
Variable Frame Rate	1080p: 2 to 60 fps	1080p: 120 fps,1080p: 100 fps
	1080p: 2 to 50 fps	1080p: 2 to 60 fps,1080p: 2 to 50 fps
Audio Recording	2-Channel 16-Bit 48 kHz	2-Channel 16-Bit 48 kHz
Video Connectors	1 x 1/8" (3.5 mm) TRRS A/V Output	1 x 1/8" (3.5 mm) TRRS A/V Output
	1 x 1/8" (3.5 mm) TRRS A/V (Composite) Output	1 x BNC (3G-SDI) Output
	1 x HDMI (HDMI 2.0) Output	1 x 1/8" (3.5 mm) TRRS A/V (Composite) Output
		1 x HDMI (HDMI 2.0) Output
Audio Connectors	2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input	2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
	1 x 1/8" (3.5 mm) Stereo Headphone Output	1 x 1/8" (3.5 mm) Stereo Headphone Output
Other I/O	1 x USB Type-A	1 x BNC Timecode Input/Output
	1 x USB Micro-B	1 x USB Type-A , 1 x USB Micro-B
Display Type	LCD	LCD
Screen Size	3.5"	3.5"
Screen Resolution	1,150,000 Dots	1,150,000 Dots
EVF Display Type	Not Applicable	OLED
Screen Size	.25"	.39"
EVF Resolution	1,560,000 Dots	2,360,000 Dots
Power Connectors	1 x Barrel (11.4 to 12.6 VDC) Output	1 x Barrel (11.4 to 12.6 VDC) Output
Power Consumption	12.2 W	19.7 W
Dimensions	6.7 x 7.7 x 13.4" / 16.9 x 19.5 x 34 cm	6.8 x 7.7 x 13.6" / 173 x 195 x 346 mm
Weight	4.2 lb / 1.9 kg	4.4 lb / 2 kg
