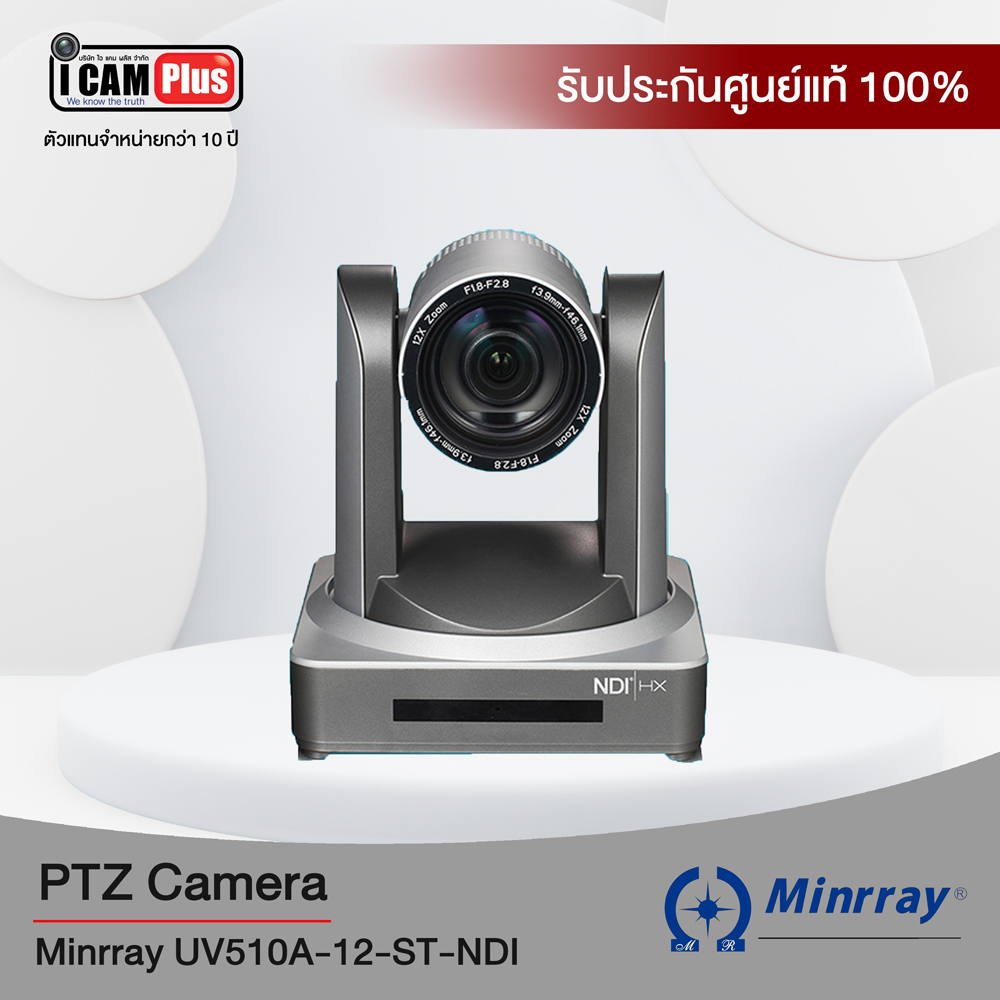

Model

UV510A-05

UV510A-10

UV510A-12

UV510A-20

UV510A-30

Camera Parameter

Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels

16: 9,2.07 megapixel

Video Format

HDMI/SDI/HDBaseT video format

1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97

U3 interface video format:

1) U3: 1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X288P30;800X600P30;

2) U3 compatible with U2:960X540P30;640X360P30;1280X720P10/15;720X576P50;720X480P60;640X480P30;352X288P30;800X600P30.

U2 interface video format:

176x144/320x240/320x180/352x288/640x480/720x480/720x576/

640x360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5

Optical Zoom

5X

f＝3.1～15.5mm

10X

f＝4.7～47mm

12X

f＝3.9～46.8mm

20X

f＝5.5～110mm

30X

f＝4.3～129mm

View Angle

20°(tele)--83.7°(wide)

6.43°(tele)--60.9°(wide)

6.3°(tele)--72.5°(wide)

3.3°(tele)--54.7°(wide)

2.34°(tele)—65.1°(wide)

AV

F1.8 – F2.8

F1.6 – F3.0

F1.8 – F2.4

F1.6 – F3.5

F1.6 – F4.7

Digital Zoom

10X

Minimum Illumination

0.5Lux (F1.8, AGC ON)

DNR

2D & 3D DNR

White Balance

Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

Focus

Auto/Manual/One push focus

Aperture/Electronic Shutter

Auto/Manual

BLC

ON/OFF

WDR

OFF/ Dynamic level adjustment

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

>55dB

Input/Output Interface

Video Interfaces

UV510A-ST model:SDI,HDMI,LAN,RS232(input & output),RS485,A-IN, NDI(optional)

UV510A-U2 model:USB2.0,LAN,RS232(input & output),A-IN

UV510A-U3 model:USB3.0,LAN,RS232(input & output),A-IN

UV510A-HD model:HDBaseT(POE),LAN,A-IN,RS232(input)

UV510A-HM model:HDMI,LAN,RS232(input)

UV510A-U2U3 model:USB2.0,USB3.0,HDMI,LAN,RS232(input)

UV510A-RF model:WiFi(RF),LAN

Video Output Interfaces

HDMI, SDI, LAN(POE for options), USB3.0, USB2.0

Image Stream

Double stream output

Video Compression Format

H.264, H.265

Control Protocol

VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps

Audio Input Interface

A-IN: Double track 3.5mm linear input

Audio Compression Format

AAC/MP3/G.711A

Network Interface

100M IP port(100BASE-TX), 5G WiFi (optional)

Network Protocol

RTMPS, RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocol, Support remote upgrade, reboot and reset.

Control Interface

RS232(input & output),RS485

Power Interface

HEC3800 outlet (DC12V),2pin waterproof aerial socket(RF model)

Power Adapter

Input: AC110V-AC220V; Output: DC12V/1.5A

Input voltage

DC12V±10%

Input current

1A (Maximum)

Power Consumption

12W(Maximum)

RF parameter

Operating frequency range

5.1—5.9 (GHz)

Transmit power

17dBm

Channel bandwidth

40MHz

Modulation mode

OFDM

Transmission distance

≤300m(Outdoor without blocking),≤150m(Indoor without blocking)

Transmission data rate

Max 300Mbps(Determined by transmission distance and channel occupancy)

Anti-interference mode

Manual/automatic channel mode selection

PTZ Parameter

Pan/TiltRotation

±170°,-30°～+90°

Pan Control Speed

0.1 -60°/sec

Tilt Control Speed

0.1-30°/sec

Preset Speed

Pan: 60°/sec, Tilt: 30°/sec

Preset Number

255 presets (10 presets by remote controller)

Other Parameter

Stored Temperature

-10℃～+60℃

Stored Humidity

20%～95%

Working Temperature

-10℃～+50℃

Working Humidity

20%～80%

Dimension

150mm×150mm×167.5mm

Weight (around)

1.4KG

Application

Indoor

Accessory

Package

Power supply, RS232 control cable, USB3.0 connection cable (U3 model), USB2.0 connection cable (U2 model), Remote controller, User manual

Optional Accessories

Ceiling / Wall Mount (Extra Cost)
