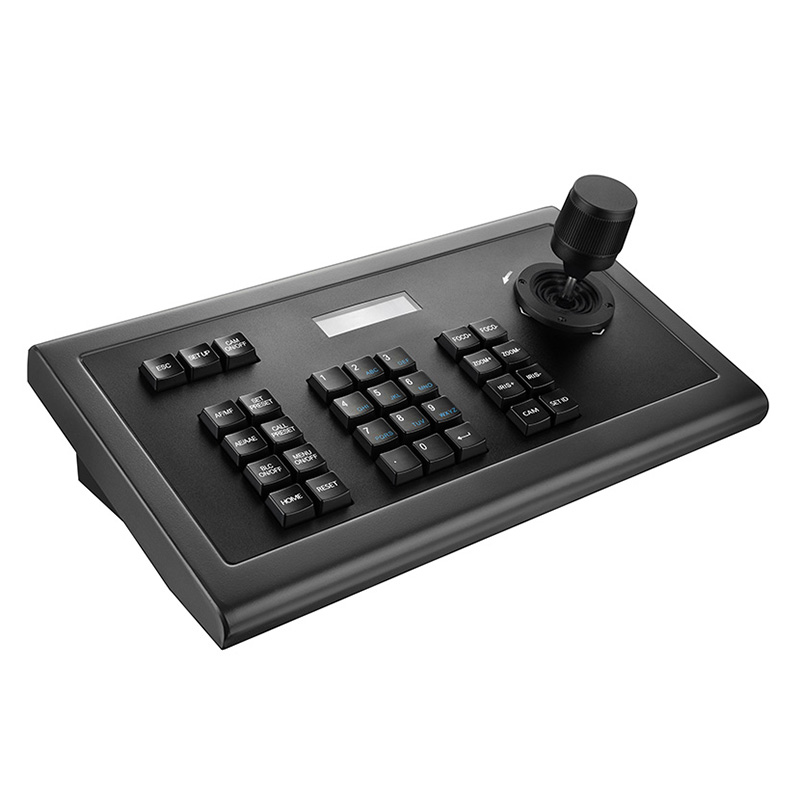

Minrray Joystick Keyboard KBD1010 Joystick keyboard KBD1010

Minrray Joystick Keyboard KBD1010 Joystick keyboard KBD1010
รหัสสินค้า SKU-01006
หมวดหมู่ Minrray
ราคา 0.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 29 มี.ค. 2565
อัพเดทล่าสุด 3 ก.ย. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : minrray, Joystick Keyboard, keyboard KBD1010, Control PTZ

รายละเอียดสินค้า

Minrray Joystick keyboard KBD1010 adopts RS485, RS422, RS232 Multiple Interface Control Signals. Support to connect up to 255 cameras. The longest communication distance is up to 1200M (0.5MM twisted pair).

Product Description

Joystick Keyboard KBD1010 Key Features：



.Adopt RS485, RS422, RS232 Multiple Interface Control Signals. Support to connect up to 255 cameras.
.Support PELCO-D, PELCO-P, VISCA control protocol。
.Metal shell, Computer keyboard button design.
.Adopt Three-dimensional joystick to control the speed of the camera.
.Control camera rotation, zoom, aperture, focus, and other camera settings.
.LCD display in English and Chinese，Real-time display of the working status of the decoder and matrix.
.Key sound prompt function.
.Unique control code learning function. Customers can modify the control code instructions by themselves
.Any device on the RS485 bus can be set to a different protocol and baud rate.
.RS422 communication interface has automatic recovery function of short circuit overcurrent protection.
.The longest communication distance is up to 1200M (0.5MM twisted pair).

Specification of Joystick Keyboard KBD1010



Parameter / Model

KBD1010

Communication Mode

RS485 Half duplex, RS422 Full duplex, RS232 Serial Port

Communication baud rate

2400bps, 4800bps, 9600bps, 19200bps

Interfaces

5PIN; RS232

Joystick

Three-dimensional (Control: up, down, left, right, rotate)

Display Mode

LCD Blue Screen Display

Power Supply

DC12V±10%

Power Consumption

6W MAX

Working Temperature

-10℃～50℃

Storage Temperature

≦90%RH(No frosting)

Dimensions

320mm（L）X179.3mm（W）X106.4mm(H)



Dimension(unit：mm)
