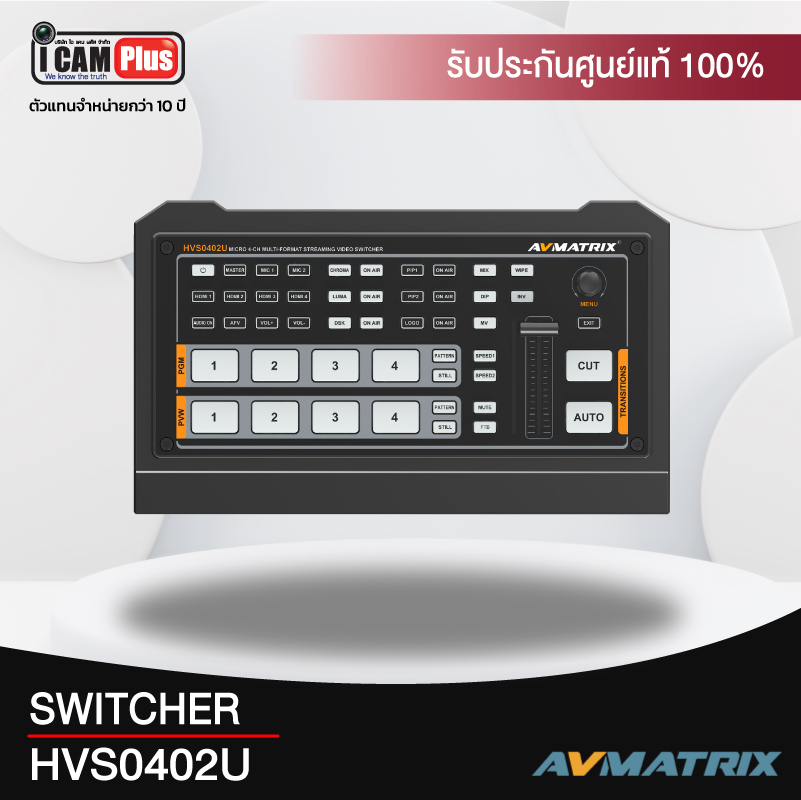

AV MATRIX HVS0402U MICRO 4 CHANNEL HDMI LIVE STREAMING VIDEO SWITCHER

AV MATRIX HVS0402U MICRO 4 CHANNEL HDMI LIVE STREAMING VIDEO SWITCHER

Scaled Output & Multiview
The switcher supports mult-format inputs inciuding 1080p, 1080i, 720p, 576i and 480p HDMI signals. And 2 HDMI outputs can be used as AUX output that can selec ot video source from HDMI 14, PVW, PGM or Clean PGM, and output format can be up/down scaled. Besides, all cameras as well as setting status/menu can be monitored via multiview output.

USB Capture for Streaming
Connect the switcher to a com computer wi with Window lows 7/8/10, Mac OS via USB output, and use soft ftwarare like OBS, F to realize live streaming in Youtube, Facebook, Twitter, etc. platforms. The video source of USB out not only can be the PGM output but also can be HDMI1, HDMI2, HDMI3, HDMI4, PV or Clean PGM output.PotPlayer, VMix, etc.

USB Capture for Streaming
Connect the switcher to a computer with Windows 7/8/10, Mac OS via USB output, and use softwarare like OBS, PotPlayer, VMix, etc. source of USB out not only to realize live streaming in Youtube, Facebook, Twitter, etc. platforms. The video can be the PGM output but also can be HDMI 1, HDMI2, HDMI3, HDM14, PW or Clean PGM output

USK & DSK
The switcher supports chroma key and Iuma key, which is convenient for users to key off blue/green and black background colors for vitual studio or live event applications. Besides, User can gain an exact color level by using the color picking, clip and gain key adjustment.

Transition Effects
There are WIPE(9x2 patterns), MIX and DIP transition effects available from the switcher.The transition effect works for switching via AUTO and T-Bar. User also can have transition without effect by switching via CUT.
2 PIP/POPThe switcher has 2 PIP function that it can overlay 2 sub-screen into the PGM out, and the size and postion of sub-screen can be adjusted. Besides, user can use POP to have two same-size screens overlay into PGM out.

LOGO Overlay
User can add a logo from USB flash disk into PGM. The logo's size and position can be adjusted, and the logo image can be PNG, JPG, BMP, etc. format.

Powerful Media Management
The video switcher has a powerful built-in media manage ement function with 49 preset patterns. User also can import image from USB fiash disk, or capture and sto tore the scre creenshot image of HDMI 1, HDMI 2, HDMI3, HDMI 4, Clean PGM or PGM.

Audio MIXING /AFV
The switcher can mix 4 HDMI embedded audio and 2 extemnal analog audios (Mic/ Line-level) into the PGM out. User can turn on/off or adjust volume or audio delay for each audio independenty. In addition, 4 HDMI embedded audios can be set to AFV mode.

PC Control Softaware
A free PC control software can be downloaded from website. User can remotely control all settings of the device through the control software, including transition effects, audio confguration, multiview settings and media management, etc.
