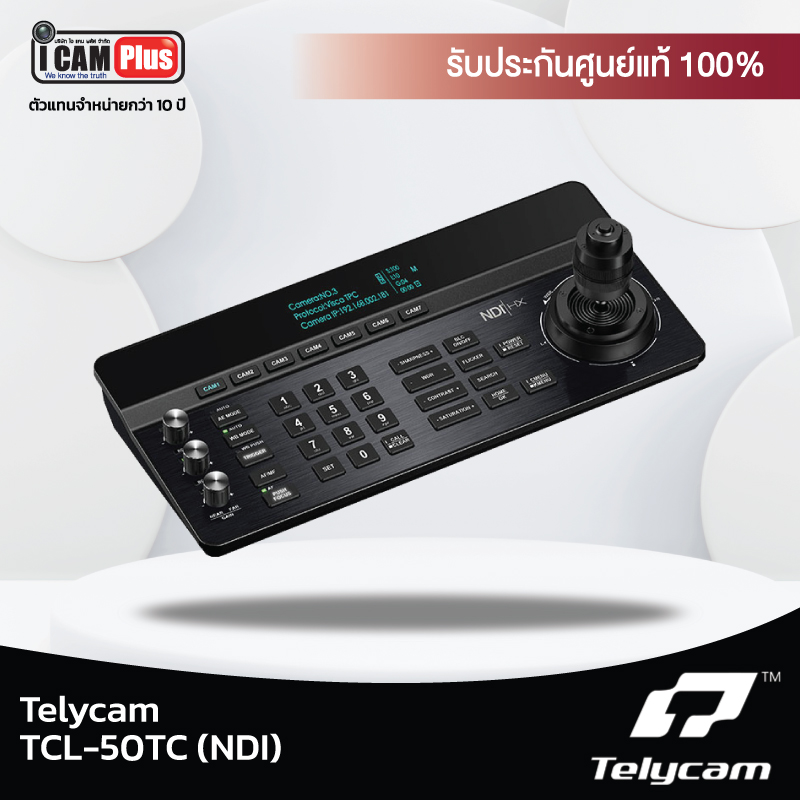

Telycam TLCTLC-50TC (NDI)

NDI/IP Remote Control Keyboard

Highlights

• Be able to control different brands of cameras

• Be able to use different protocols to control camera simultaneously: NDI/VISCA over IP/VISCA/ONVIF

• Simple and intuitive panel design to enable control and adjust the image simply

• Has a wide range of control interfaces: NDI/Ethernet, RS232, RS485, RS422

Broad Compatibility

Supports multiple protocols NDI, VISCA over IP, Serial VISCA, ONVIF, PELCO P/D, Users can control multiple cameras with different protocols with one keyboard, or multiple keyboards controlling one camera through a network interface.It supports up to 7 cameras of daisy chain control.

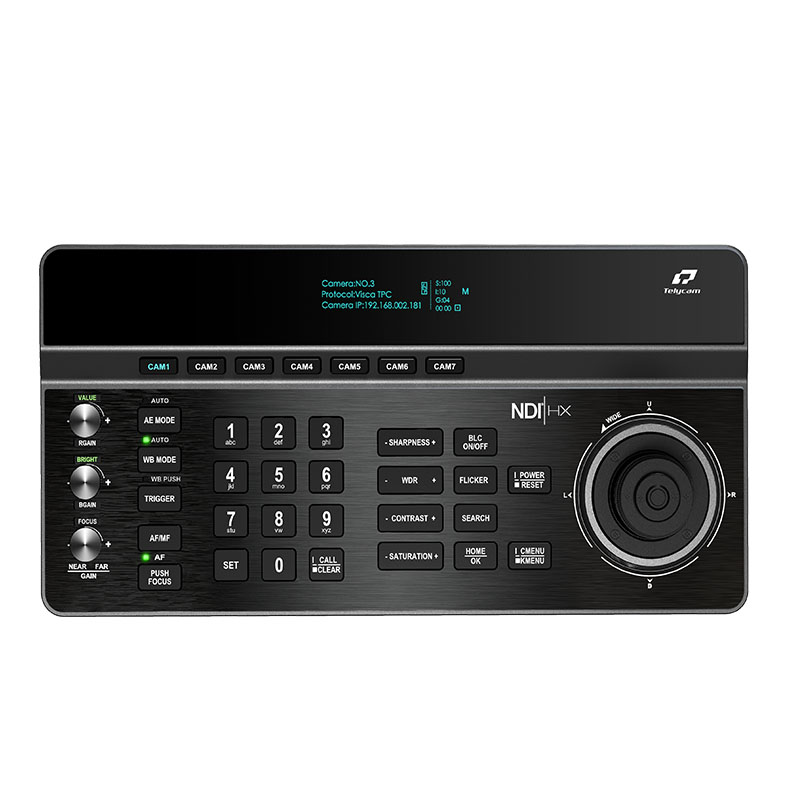

 Simple and Clear Layout

A high-definitionscreen to show detailed camera and control status.

With a four-dimensional joystick controller to make smooth control of the camera’s all-around rotation and zooming.

Intuitive Control Indication

The control buttons and function knobs allow to set the camera’s exposure mode, white balance mode, and focus mode, as well as adjusting image parameters according to your preferences and scene applications.128 preset positions can be set, recalled, and cleared via the numerical button area.

Comes with 7 camera shortcut control buttons, to switch control between multiple cameras.

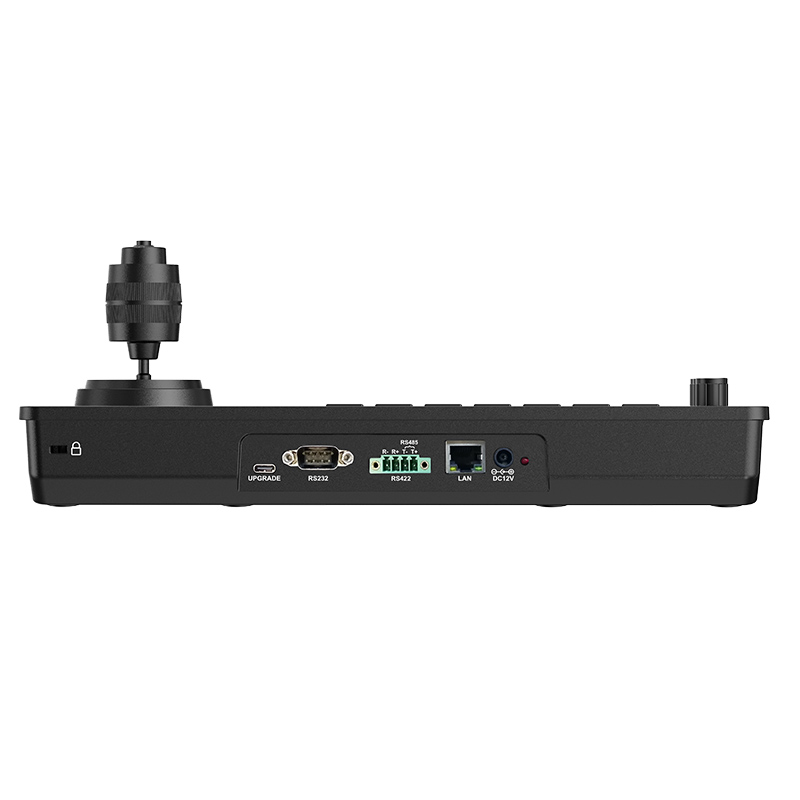

Various Control Port

Whether need RS232, RS485, RS422, or even RJ45 control, the TLC-50TC can meet all requirements.TLC-50TC can be connected to all these interfaces simultaneously.TLC-50TC supports POE and supports 10M, 100M, 1000M adaptive network RJ45 connection.
