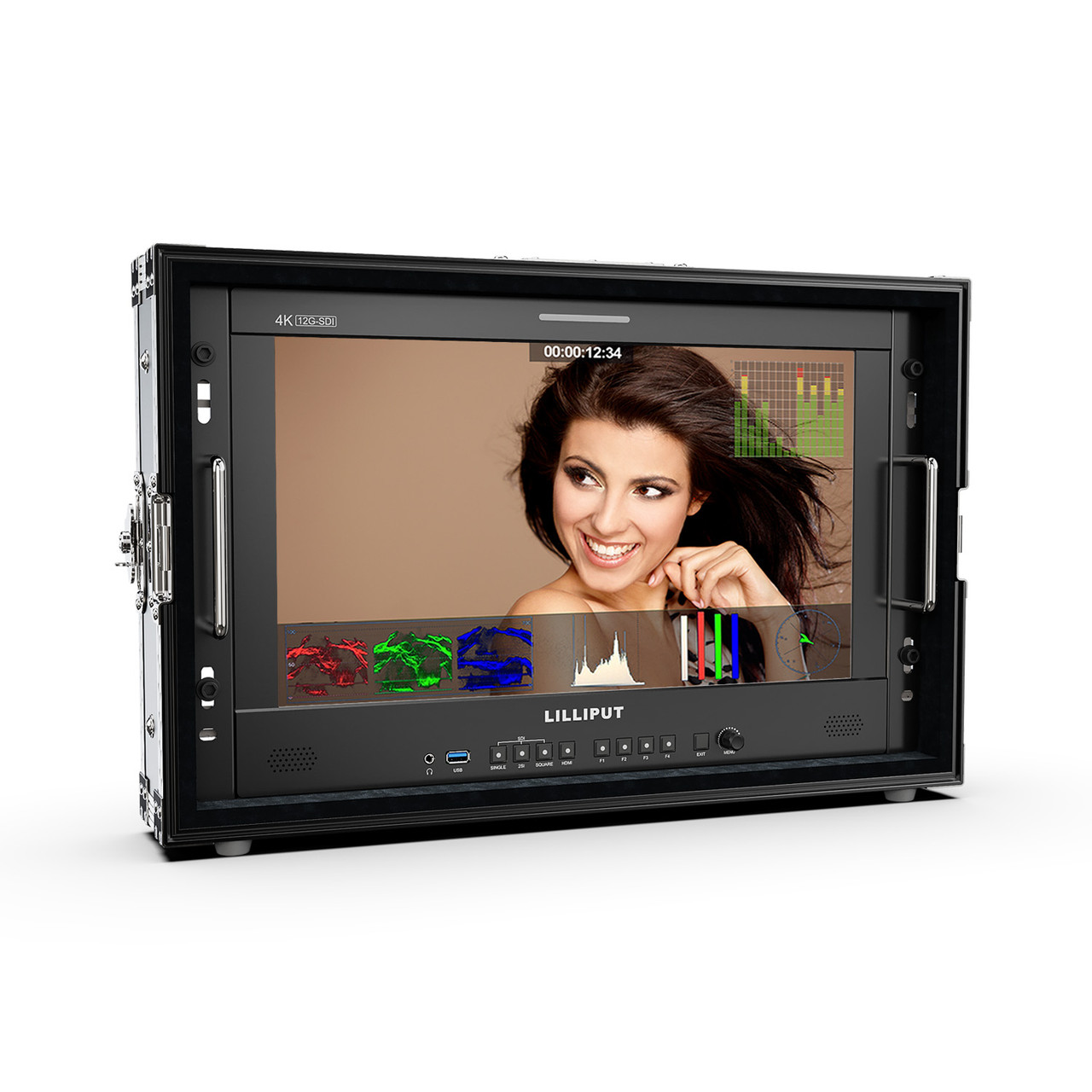

Lilliput Q18 12G-SDI Broadcast/Production Monitor

Studio / Broadcast Monitor

• Studio / Broadcast monitor for professional camcorder & camera

• Application for video production & making movies. MODEL: Q18 4K-3840x2160 Resolution

• 12G-SDI 12G-SFP 4K-HDMI

• HDR: 3D-LUT

• REMOTE CONTROL


12G-SDI / 4K HDMI Signal

12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals.

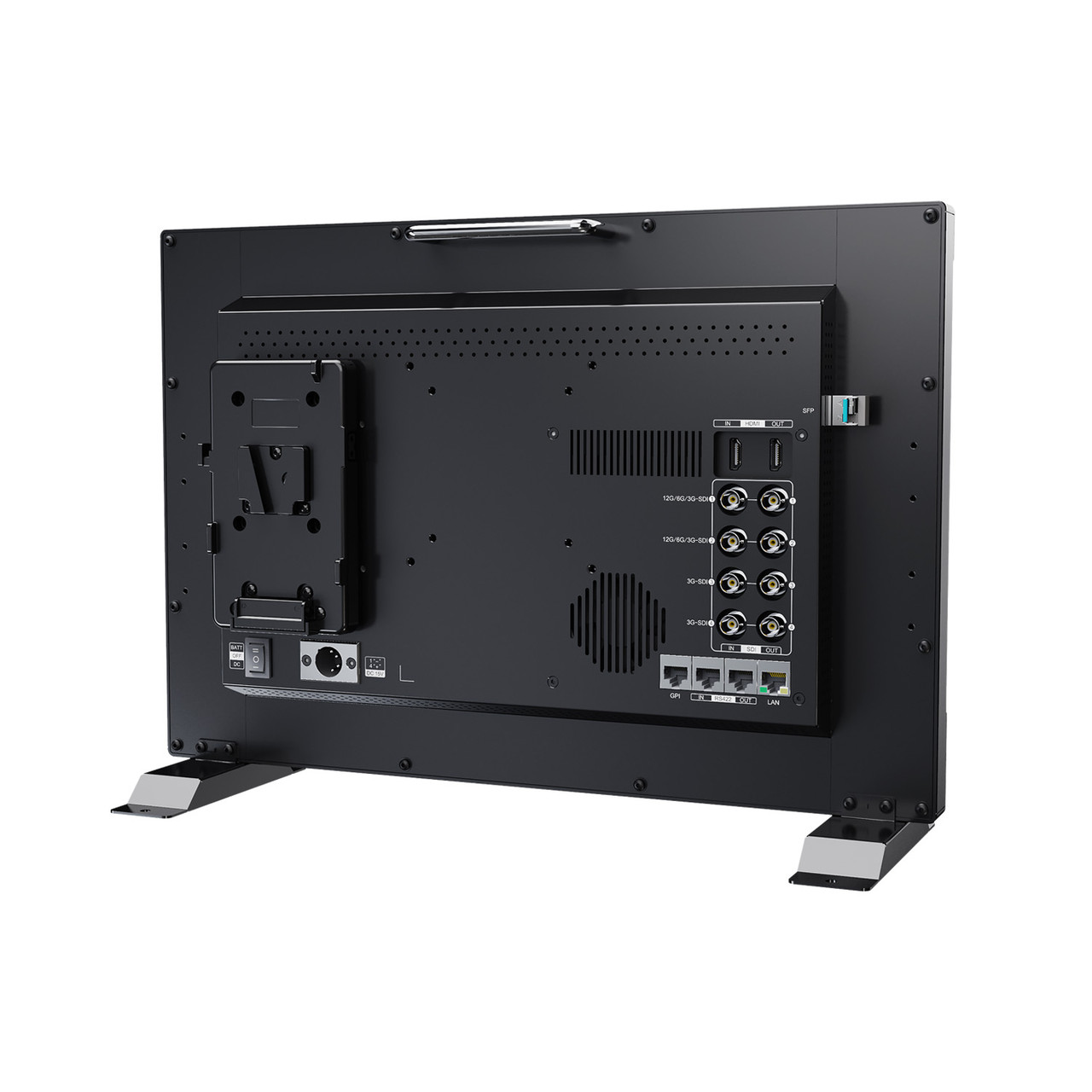

Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096x2160 (60p, 50p, 30p, 25p,24p)&3840x2160 (60p, 50p,30p, 25p, 24p)signal.

12G SFP+ interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.

Accurate Color Calibration

A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.

Color Temperature

According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.

Gammas

Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bitswould be left to describe the dark tones where the camera is relatively less sensitive.

Remote Control Application

Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.

LAN / RS422

Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.


Brightness, contrast, saturation, tint, sharpness, backlight and color temperature can be controlled in this pattern.

Source

Switch between four different SDI signals and single HDMI signal

Marker

Skip the complex menu options and select necessary marker directly.

Function

Includes waveform, histogram, and other features in this pattern.

Audio

Any audio channel can be matched and control level meter and audio vector.

JMD

Tally/UMD

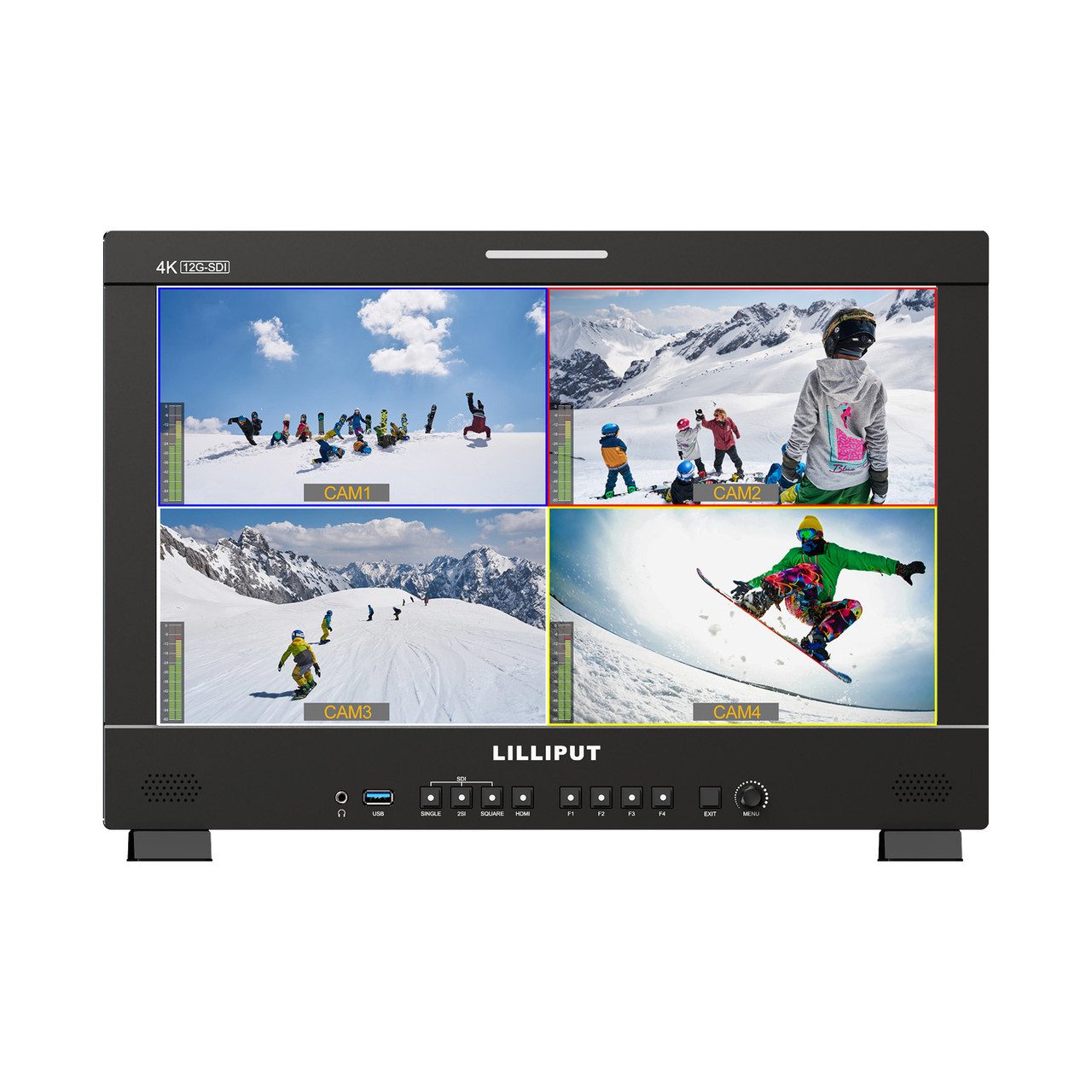

Quad Split Multiview

In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, 3G-SDI, HDMI2.0 and 12G-SFP+ Moreover,images can be differentiated with colorful borders to enhance the senses of monitoring.


SINGLE 2SI SQUARE HDMI

The four images are allowed to select the input signal source separately, and cinematographers can also quickly switch between each input signal via physical buttons.

In the mode of quad split multiview, user can select any one input signal for audio/sound output, for example, SDI, HDMI or SFP+.

Audio Vector (Lissajous)

The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.
