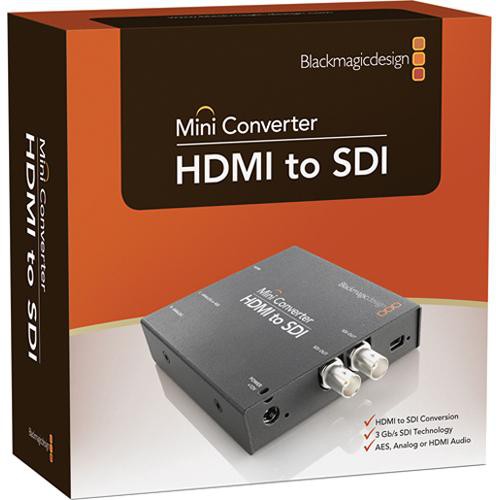

Blackmagic Design Mini Converter HDMI to SDI

Blackmagic Design Mini Converter HDMI to SDI

PRODUCT HIGHLIGHTS

- (1) HDMI Input, (2) SDI Output

- Embedded Audio

           The Mini Converter HDMI to SDI from Blackmagic Design will accept an HDMI signal and convert it to 2 SDI outputs. You can also choose to embed audio from balanced AES/EBU or analog audio inputs. Use this device to add SDI output to cameras with HDMI connections or add SDI outputs to computers with HDMI or DVI connectors.

Embedded Audio

This unit can embed SDI audio from balanced AES/EBU or analog audio inputs.

Universal Power

A power supply with international socket adapters for all countries is included

SPECIFICATIONS

Input HDMI (x1)

Output SDI (x2) - switchable between SD, HD & 3Gbs SDI

Audio

Analog: (2) channels of professional balanced analog with standard 1/4" jack connections

Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard

Standards SDI Format Support:

625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

SDI Compliance:

SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI

SDI Video Sampling: 4:2:2 None

SDI Video Rates: SDI video connections are switchable between standard definition and high definition. SDI Color Precision: 4:2:2

SDI Color Space: YUV

SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit

SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

Analog Color Precision:4:2:2

Analog Color Space: YUV

HDMI Format Support:

625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60

HDMI Color Precision:

4:2:2 and 4:4:4

HDMI Color Space:

YUV and RGB

Copy Protection:

For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP

Power 12VDC

Dimensions (HxWxD) 5.5 x 5.25 x 2.5" (14 x 13.3 x 6.4 cm)

Weight 1 lb (0.45 kg)
