Blackmagic Design Mini Converter SDI to HDMI 6G

Blackmagic Design Mini Converter 6G-SDI to HDMI 4K

PRODUCT HIGHLIGHTS

- Single Link SD/HD/3G/6G-SDI Input

- 4K HDMI Output

- Supports SD, HD, UHD 4K & DCI 4K Signals

- Automatic Input Signal Detection

- Redundant SDI Input & Looped SDI Output

- 24-bit, 48 kHz Audio

- Analog & AES-EBU Digital Audio Outputs

- Control via DIP Switches or Software

- USB 2.0 Port for Firmware Updates

- 12V Universal Power Supply Included

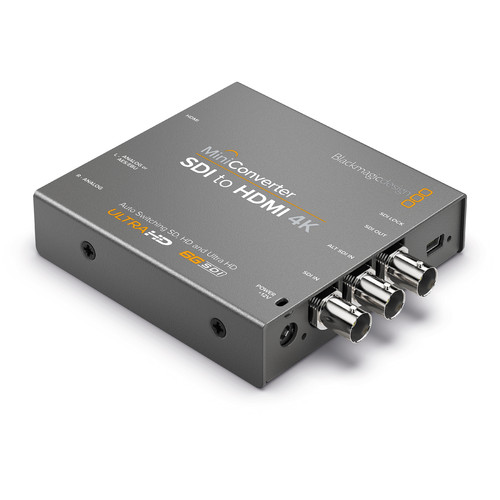

             The Mini Converter 6G-SDI to HDMI 4K from Blackmagic Design allows you to convert single link SD/HD/3G/6G-SDI to a single 4K HDMI output. This allows you to use professional SDI equipment which outputs Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) video signals with projectors and televisions that support 4K over HDMI. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

             Using 4K HDMI and 6G-SDI technologies, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports single link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. When connecting to UHD sources and the HDMI output detects an HDTV or HD monitor, the output signal is automatically down-converted from UHD to HD. A redundant SDI input is provided as an optional back up, and an SDI loop-through output is available for sending the SDI signal to an additional device. SDI input audio is de-embedded and available via the HDMI output or the 1/4" output jacks as AES/EBU digital audio or balanced analog audio.

              The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

Additional Features

• 4:2:2 and 4:4:4 Sampling and color precision
• 24-bit, 48 kHz audio sampling
• Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M standards

SPECIFICATIONS

Video Input 1 x 6G-SDI

1 x 6G-SDI redundant input

Video Output 1 x HDMI, Type A

1 x 6G-SDI, loop-through

Multi-Rate Support Auto detection of SD, HD, or 6G SDI signals

Reclocking Yes

Audio Input Embedded in SDI

Audio Output Embedded in HDMI output

2 x 1/4" jack, 2 channels of analog or AES/EBU digital audio

Format Support SD:

NTSC 525/29.97 and 525/23.98

PAL 625/25

HD:

720p 59.94/60

1080i 50/59.94/60

1080PsF 23.98/24/25/29.97/30

1080p 23.98/24/25/29.97/30/50/59.94/60

2K:

2048x1080PsF 23.98/24/25

2048/1080p 23.98/24/25

UHD/4K

3840x2160p 23.98/24/25/29.97/30

4096x2160p 24

SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M

SDI Video Rates Switchable between SD, HD, and 6G SDI

SDI Video Sampling 4:2:2

SDI Audio Sampling 24-bit, 48 kHz

SDI Color Precision 4:2:2 and 4:4:4

SDI Color Space YUV and RGB

SDI Auto Switching Automatically detects SD, HD, or 6G-SDI

HDMI Format Support SD:

NTSC 525/23.98 and 525/29.97

PAL 625/25

HD:

720p 50/59.94/60

1080i 50/59.94/60

1080p 23.98/24/25/29.97/30/50/59.94/60

2K:

2048x1080p 23.98/24/25

UHD/4K

3840x2160p 23.98/24/25/29.97/30

4096x2160p 24

HDMI Color Precision 4:2:2 and 4:4:4

HDMI Color Space YUV and RGB

Settings Control DIP switches or USB software for Mac PS X and Windows

Firmware Upgradeable Via USB 2.0

Power Supply 12 VDC

Power Consumption 5.2 W

Operational Voltage Range 12 to 31 VDC

Operating Temperature 32 to 104° F (0 to 40 ° C)

Storage Temperature -4 to 113° F (-20 to 45 ° C)

Relative Humidity 0 to 90% non-condensing

Dimensions 4.49 x 3.63 x 0.90" (11.40 x 9.22 x 2.29 cm)

Weight 9.13 oz (258.83 g)
