Blackmagic Design DeckLink Mini Monitor Hd

Blackmagic Design DeckLink Mini Monitor

PRODUCT HIGHLIGHTS

- 4-Lane PCIe Slot Playback Card

- SDI and HDMI Outputs

- Outputs Uncompressed 10-Bit Video

- 4:2:2 Video Sampling

- 16 Ch Audio Embedded in HD SDI

- 8 Ch Audio Embedded in SD SDI

- 8 Ch Audio Embedded in SD and HD HDMI

- OS X, Windows, and Linux Compatible

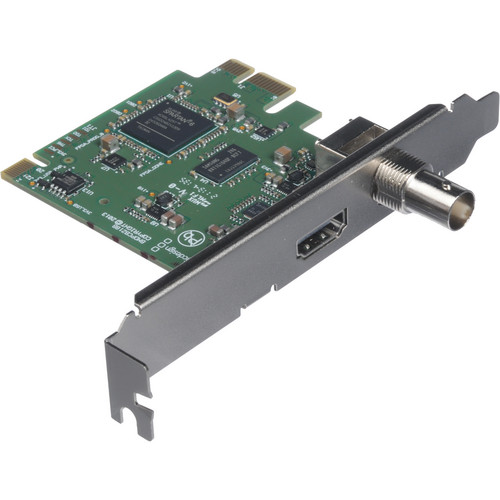

               The Blackmagic Design DeckLink Mini Monitor is a PCIe slot playback card with both SDI and HDMI outputs for color-correcting or delivering client presentations in more precision on top-resolution HDMI or SDI monitors. You'll be able to send video from your computer to a large HDMI display locally or to an SDI monitor up to 300 ft away.

              The card outputs up to 10-bit uncompressed video, and you can output by SDI and HDMI simultaneously or through only one of these. All the outputs are active, so once you plug a cable into them, they'll begin functioning. The card automatically switches between SD and HD, so it'll handle all common video formats.

Outputs

SDI 10-bit SD/HD switchable video with 16 ch HD / 8 ch SD embedded audio

HDMI type A video with 8 ch audio embedded in SD and HD

4-Lane PCI Express Card

The Mini Monitor is a 4-lane PCI Express card and is compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows 8 and Linux. The only Mac capable of accepting the card is a Mac Pro as other Macs can't be opened to enable installation.

Codecs Supported

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2

Internal Software Upgrade

Firmware built into software driver, loaded at system start or via updater software.

SPECIFICATIONS

Connections 1x SDI output:

Outputs 10-bit SD/HD switchable video and 16 ch audio embedded in HD and 8 ch in SD

1x HDMI type A output:  Outputs video and 8 ch audio embedded in SD and HD

Computer Interface 1x PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots

Codecs Supported AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2

Software Supported Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Cubase, Autodesk Smoke, Adobe Photoshop, Avid Symphony, Avid News Cutter, Tools On Air just:in, Tools On Air live:cut, Tools On Air just:play, Tools On Air just:live, Softron OnTheAir MovieRecorder, Softron OnTheAir CG, Steinberg Nuendo, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro, Vidcaster Studio, Vidcaster Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Steinberg Nuendo, Flash Media Encoder, Xsplit Broadcaster, Wirecast, Livestream Procaster, Harris Infocaster

SD Format Support 625/25 PAL, 525/29.97 NTSC

HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60

SDI Compliance SMPTE 259M and 292M

Audio Sampling Television standard sample rate of 48 kHz and 24 bit

Video Sampling 4:2:2

Color Precision 10-bit

Color Space REC 601, REC 709

HDMI Configuration HDMI automatically configures to connected display

HDMI Resolution Pixel for pixel HD resolution input to connected device

HDMI Color Precision 10-bit

Multiple Rate Support SDI and HDMI are switchable between SD and HD

Colorspace Conversion Hardware based real time

HD Down Conversion Software based down conversion during video playback

Real Time Effects Apple Final Cut Pro internal effects

Adobe Premiere Pro Mercury Playback Engine effects

Avid Media Composer 6 internal effects

Operating System Requirements Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later

Windows 7 or Windows 8 Linux

Operating Temperature 32 to 104°F (5 to 40°C)

Storage Temperature -4 to 113°F (-20 to 45°C)

Relative Humidity 0 to 90% non-condensing

Dimensions 3.6" deep (9.2 cm)

Weight .17 oz (5 g)
