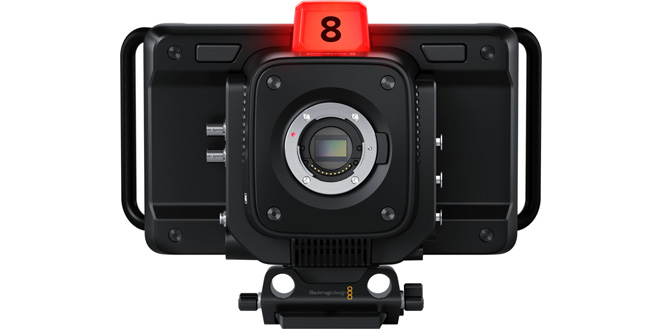

Blackmagic Design รุ่น Studio Camera 4K Pro G2 | รับประกันศูนย์ไทย

Effective Sensor Size

17.78mm x 10mm (Four Thirds)

Lens Mount

Active MFT Mount.

Lens Control

Iris, focus, zoom on supported lenses.

Dynamic Range

13 Stops.

Dual Native ISO

0dB and 18dB gain.

Sensitivity at 0dB Gain

f11 with 2160p59.94.

f12 with 2160p50.

at 2,000 lux with 89.9% reflectance.

Signal to Noise Ratio

63dB for 2160p.

Shooting Resolutions

3840 x 2160 (Ultra HD) up to 60 fps.

Frame Rates

23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.

Off-speed frame rates up to 60 fps in Ultra HD.

Focus

Auto focus available using compatible lenses.

Screen Dimensions

7 inch 1920 x 1200

Screen Type

LCD capacitive touchscreen.

Screen Brightness

2000 nits

Controls

Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.

Mounting Options

2 x 1/4 inch tripod mount.

1 x 3/8 inch tripod mount.

SDI Video Inputs

1

SDI Video Outputs

1

SDI Rates

1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Outputs

1

Analog Audio Input

2 x XLR analog switchable between mic and line levels. Phantom power support.

1 x 3.5mm Stereo Input. Can also be used for Timecode input.

Analog Audio Output

1 x 5-pin XLR for talkback headset.

1 x 3.5mm TRRS mini jack for headphones with mic.

Reference Inputs

Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.

SDI Audio Output

2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16

Remote Control

Remote camera control over SDI, HDMI or Ethernet.

Ethernet

10Gb/s

Computer Interface

2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

SD Video Standards

None

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,

1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24‑bit.

Media

2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.

Media Format

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Codecs

Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5

Live Tally Indicator

1 x front facing for talent,

1 x rear facing for operator.

Talkback

SDI Channels 15 and 16.

Software Included

Blackmagic Camera Setup for Mac and Windows.
