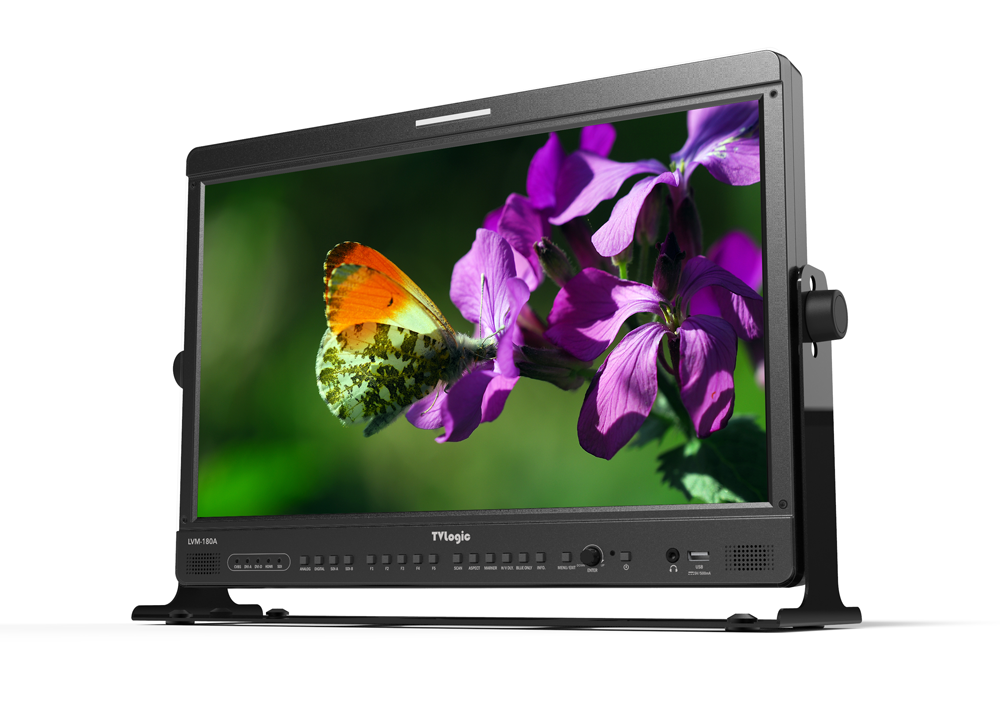

The 18.5" 3G-SDI/HDMI Wide-View LCD Broadcast Monitor from TVLogic features a 1920 x 1080 IPS LCD screen and HDMI, DVI, 3G-SDI, and composite BNC inputs, as well as 3G-SDI and composite outputs. It also features a 3.5mm headphone output and both LAN and GPI ports for remote control. A stand is also supplied for desktop-mounting the monitor.
The monitor has a slim design with fairly small bezels. Built-in software features include waveform, vectorscope, closed caption, audio meter, and numerous broadcast image tools. The monitor has a brightness of 500 cd/m² and a wide viewing angle of 178°.
TVLogic LVM-180A Specs
Display
| Panel Type | LCD |
| Display Size | 18.5" / 47.0 cm |
| Screen Area | 16.1 x 8.0" / 408 x 203 mm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 119 ppi |

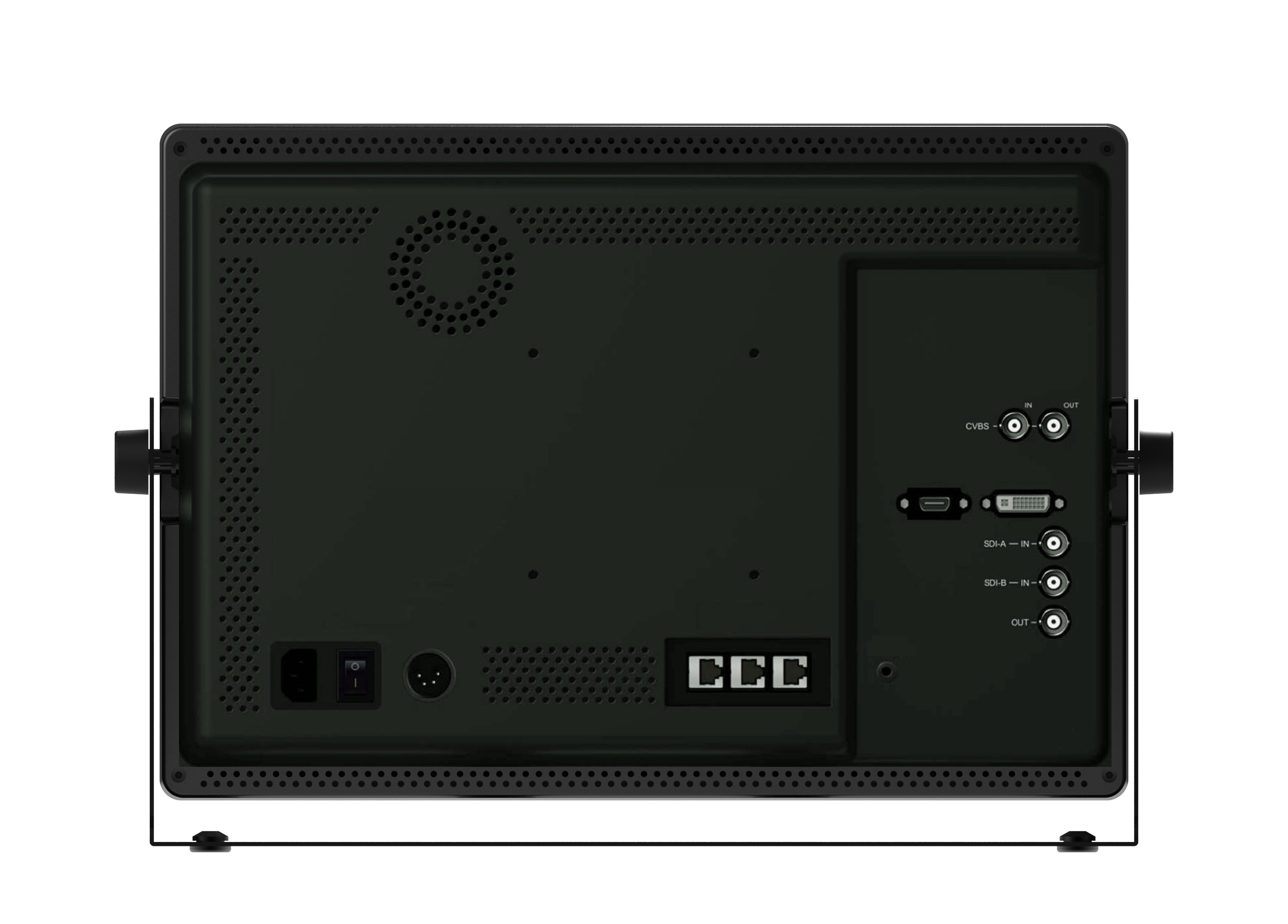

| Video I/O | 2 x BNC (3G-SDI) Input 1 x HDMI Input 1 x BNC (Composite) Input 1 x DVI-I Input 1 x BNC (3G-SDI) Loop Output 1 x BNC (Composite) Loop Output |
| Embedded Audio | SDI HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x XLR 4-Pin (2.5 A / 24 VDC) Input |
| Other I/O | 1 x RJ45 (LAN) 1 x RJ45 (GPI) |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Video Format | SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI 1080p: 60/50/30/25/24 1080i 720p 576p 576i 480p 480i |
| PC Resolutions | 1366 x 768 1280 x 1024 1024 x 768 800 x 600 720 x 400 |
| Video Standard Compliance | SMPTE 425M/425M-A/425M-B |
Power
| Battery Type | None |
General
| Dimensions | 17.4 x 12.2 x 2.6" / 442.5 x 309.2 x 65.4 mm 19 x 13.1 x 5.4" / 483 x 332.9 x 137.5 mm |
| Weight | 15.4 lb / 7 kg |
