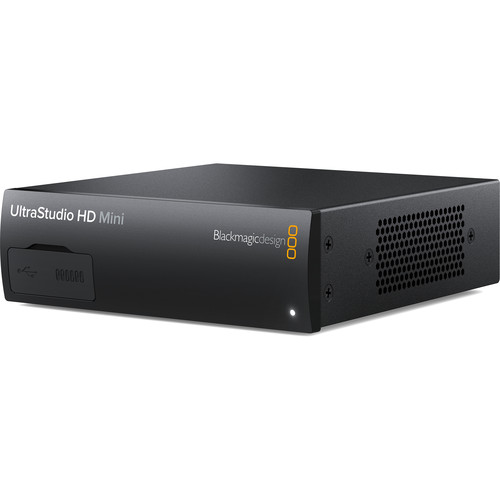

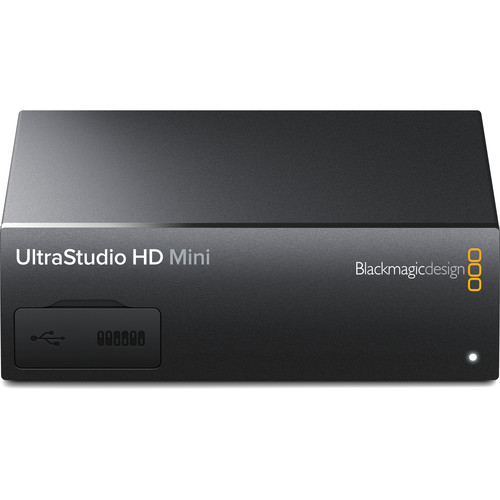

Blackmagic Design UltraStudio HD Mini

Blackmagic Design UltraStudio HD Mini
Blackmagic Design UltraStudio HD MiniBlackmagic Design UltraStudio HD MiniBlackmagic Design UltraStudio HD Mini
รหัสสินค้า SKU-01412
หมวดหมู่ BLACKMAGIC
ราคา 23,300.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 25 พ.ค. 2566
อัพเดทล่าสุด 8 ต.ค. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

รายละเอียดสินค้า

Perform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini. SDI and analog video inputs can import video from modern or legacy professional video equipment. Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD

Blackmagic Design HD Mini Overview

erform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini. SDI and analog video inputs can import video from modern or legacy professional video equipment. Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays. With the built-in RS-422 connection, the UltraStudio HD Mini can also interface with professional broadcast decks.

Control
Use the DIP switches on the front panel or the RS-422 deck control port on the rear for software control. The separately available Teranex Mini Smart Panel can be purchased separately and can be used to control the UltraStudio Mini as well as for confidence monitoring.
Processing
  • Color Space Conversion: Hardware based real time.
  • HD Down Conversion: Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback.
  • Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Real-Time Effects Support
  • Final Cut Pro X internal effects
  • Premiere Pro CC Mercury Playback Engine effects
  • Avid Media Composer internal effects
Thunderbolt 3 Connectivity
Connects via Thunderbolt 3 to stream video. Bus-power over Thunderbolt 3 is sufficient to power the UltraStudio Mini, no separate power supply is required.
Software Application Support
  • Blackmagic Design: DaVinci Resolve, Fusion
  • Apple: Final Cut Pro X
  • Premiere Pro CC, After Effects CC, Photoshop CC
  • Avid: Media Composer, Pro Tools
  • Autodesk: Flame
  • Steinberg: Cubase, Nuendo

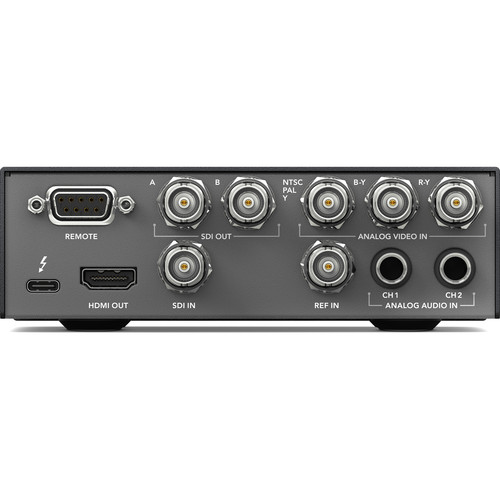

Inputs / Outputs
System Connection USB-C (Thunderbolt 3)
Video Inputs 1 x BNC (3G-SDI) Female
1 x 3BNC (Component/Composite) Female
Audio Inputs 2 x 1/4" TRS Analog Female
Video Outputs 2 x BNC (3G-SDI) Female
1 x HDMI (1.4b) Female
Other I/O 1 x DE-9/DB-9 RS-422 Input
1 x BNC Reference Input
Format Support
Input Video Format SDI (4:4:4/4:2:2)
DCI 2K at 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines
576i / 625 lines
Output Video Format HDMI (8-Bit 4:4:4 RGB)
1080p at 30 fps
SDI (8/10/12-Bit 4:4:4 RGB)
1080p at 30 fps
Embedded Audio SDI: 16-Channel
HDMI: 2-Channel
Standards
Video Standard Compliance SMPTE 259M/292M/296M/372M/425M-A/425M-B
HDR Compatibility None
Hardware
OS Compatibility Windows 10 or Later (64-Bit Only)
Windows 11
macOS 11.1 or Later
Linux
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Power I/O None
Environmental
Operating Temperature 32.0 to 104.0°F / 0.0 to 40.0°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
General
Dimensions 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm
Weight 1.34 lb / 608 g
Packaging Info
Package Weight 1.84 lb
Box Dimensions (LxWxH) 9.05 x 7.85 x 2.3"
