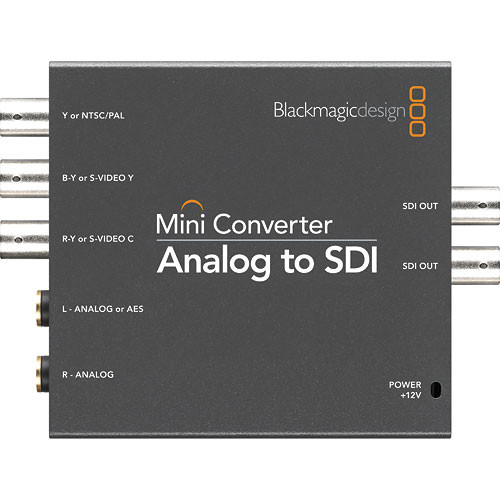

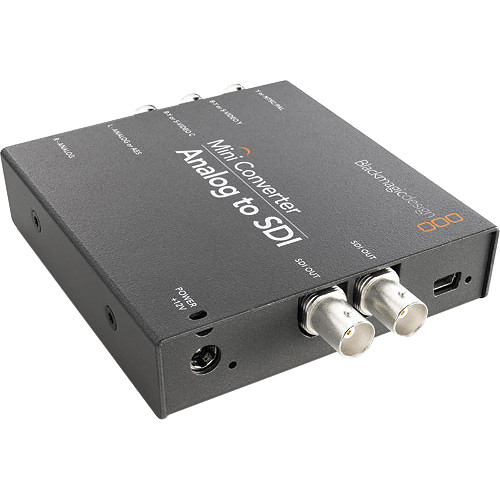

The Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component, NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI audio from balanced AES/EBU or analog audio inputs. Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.
Analog to SDI Conversion
Use this device to convert analog video sources to SDI video output.
Embedded Audio
This unit can embed SDI audio from balanced AES/EBU or analog audio inputs.
Blackmagic Design CONVMA Specs
| Input | (1) component, NTSC, PAL, and S-video via 3x BNCs |
| Output | (2) SDI (switchable between SD, HD & 3Gbs SDI) |
| Audio | Analog: (2) channels of professional balanced analog with standard 1/4" jack connections Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard (Audio inputs are shared) |
| Power | 12VDC |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
Packaging Info
| Package Weight | 1.12 lb |
| Box Dimensions (LxWxH) | 5.75 x 5.5 x 2.65" |
