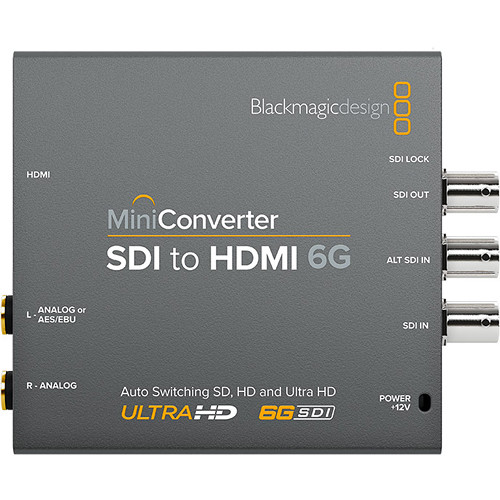

The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output.
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, and SMPTE ST-2081 standards
- Down-conversion for monitoring Ultra HD on HD monitors
- Built-in 3D LUTs
- HDMI instant lock for instant video display when an SDI input is connected
Blackmagic Design CONVMBSH Specs
| Video Inputs | 2 x BNC (6G-SDI) |
| Input Video Format | SDI DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 2K 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
| Audio Inputs | None |
| Video Outputs | 1 x HDMI 1 x BNC (6G-SDI) |
| Output Video Format | HDMI (4:4:4/4:2:2 RGB, YUV) UHD 4K at 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
| Audio Outputs | 2 x 1/4" TRS Stereo Analog Female |
| HDR Compatibility | Not Specified by Manufacturer |
| Expansion Slots | None |
| Wi-Fi | None |
| Power I/O | 1 x Barrel (12 to 31 VDC) Input |
| Power Consumption | Device: 12 to 18 VDC (5.2 W) |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| Dimensions | 4.49 x 3.63 x 0.9" / 114.05 x 92.2 x 22.9 mm |
| Weight | 9.06 oz / 257 g |
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 6 x 6 x 2" |
