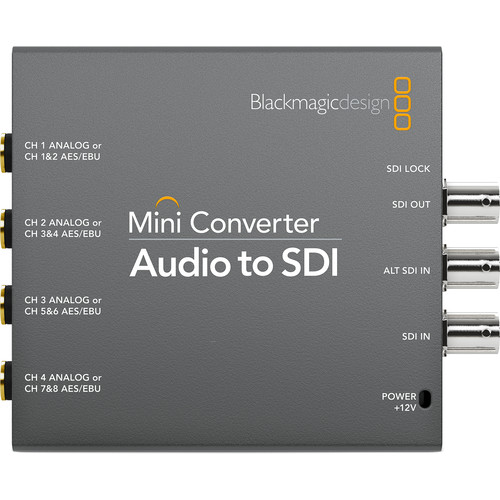

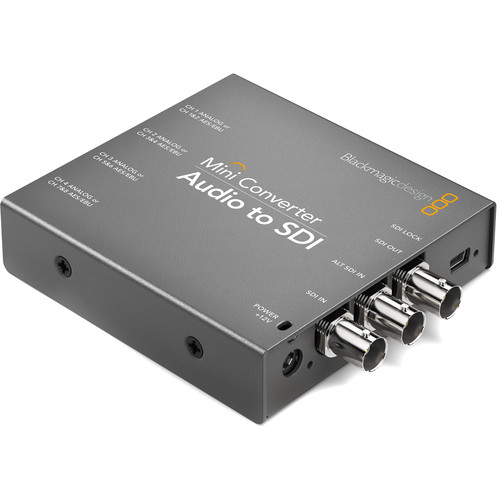

Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks.
In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.
Blackmagic Design CONVMCAUDS Specs
| SDI Input | 1 x SDI on BNC (switchable between 3G/HD/SD) 1 x 3G/HD/SD-SDI redundant input (automatically switches over if main SDI input is lost) |
| Audio Input | 4 x 1/4" jacks support 4 channels of balanced analog, or 8 channels of balanced AES/EBU digital audio |
| SDI Output | 1 x SDI on BNC (switchable between 3G/HD/SD) |
| SDI Auto Switching | Auto-detection of 3G/2K/HD/SD-SDI |
| Updates and Configuration | Via USB 2.0 high-speed (480 Mb/s) |
| Reclocking | Yes |
| SDI Compliance | SMPTE 292M/259M/296M/372M/424M-B/425M ITU-R BT.656/BT.601 |
| SDI Video Rates | SDI video connections are switchable between HD and SD |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| SDI Auto Switching | Automatically selects between 3G/HD/SD |
| SDI Format Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 525i: 59.94 NTSC 625i: 50 PAL |
| 2K Format Support | 2K DCI 25p/24p/23.98p 2K DCI 25PsF/24PsF/23.98PsF |
| Software Control | Mac OS X and Windows software upgrade via USB |
| Internal Software Upgrade | Via included updater application |
| Operating System | Mac OS X 10.11 El Capitan, macOS Sierra or later Windows 8.1 or Windows 10 |

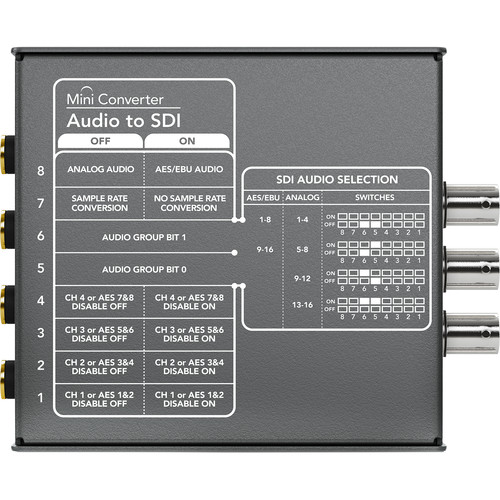

| Settings Control | Mini switches or USB software |
| Power Supply | +12 V universal power supply included, with international socket adapters for all countries and cable tie point |
| Power Consumption | 8.4 W |
| Operational Voltage Range | 12 VDC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.5 x 3.6 x 0.9" / 11.5 x 9.2 x 2.3 cm |
| Weight | 7.6 oz / 215 g |
Packaging Info
| Package Weight | 1.065 lb |
| Box Dimensions (LxWxH) | 5.8 x 5.55 x 2.6" |
