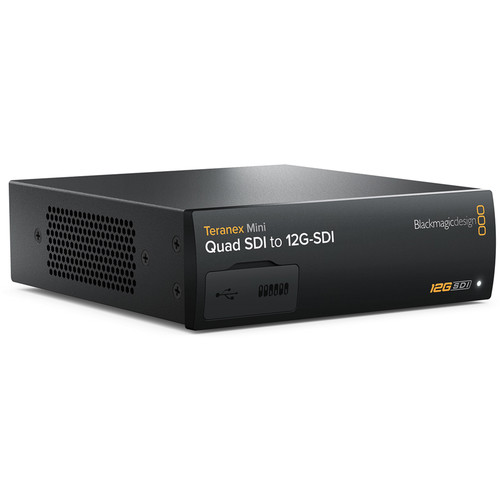

Connect Quad-Link SDI sources to 12G-SDI equipment with the Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter. Housed in a low-profile sleek black enclosure, this Teranex Mini Converter fits in studio and post-production workflows without disrupting the decor. While the functionality of this unit may be obvious, connecting the unit via Ethernet enables you to use the included control software to complete control and make adjustments to fit your needs. As an additional option, a front panel controller with a built-in confidence monitor can be purchased separately. DIP switch controls are also available behind the front panel flap.
Quad-Link and 12G-SDI protocols support high resolution video including DCI and UHD 4K as well as HD and SD signals. Automatic input signal detection acknowledges the signal resolution and configures the input accordingly. 24-bit 48 kHz broadcast-quality audio is supported.
Blackmagic Design Teranex Mini Specs

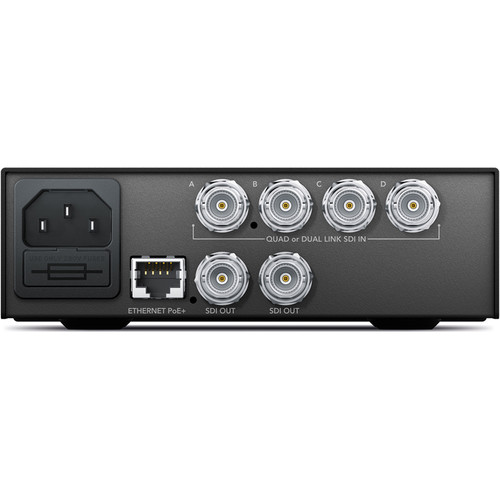

| Video Inputs | 4 x BNC 12G-SDI |
| Video Outputs | 2 x BNC 12G-SDI |
| Other I/O | 1 x RJ-45 Ethernet 1 x USB |
| Re-clocking | Yes |
| Format Support | 4096 x 2160 23.98/24/25/29.97/30 3840 x 2160 23.98/24/25/29.97/30/50/60 2048 x 1080p 23.98/24/25 2048 x 2160PsF 23.98/24/25 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25 1080i 50/59.94/60 720p 50/59.94/60 NTSC PAL |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Space | YUV, RGB |
| Settings Control | Front-panel mini switches USB Ethernet Front-mounted smart panel (available separately) |
| Power Supply | Built-in AC power supply, required IEC C14 power cable not included PoE+ (Power over Ethernet) |
| Power Consumption | 16 W |
| Operational Voltage Range | 90-240 VAC |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 140°F / -20 to 60°C Relative Humidity: 0-90%, non-condensing |
| Dimensions | 5.5 x 6.7 x 1.75" / 140 x 170 x 44 mm |
| Weight | 1.3 lb / 580 g |
| Package Weight | 1.935 lb |
| Box Dimensions (LxWxH) | 9 x 7.85 x 2.3" |
