Lilliput Q15 - 15.6" 12G SDI Monitor (with Optional Fiber input)

Lilliput Q15 - 15.6" 12G SDI Monitor (with Optional Fiber input)

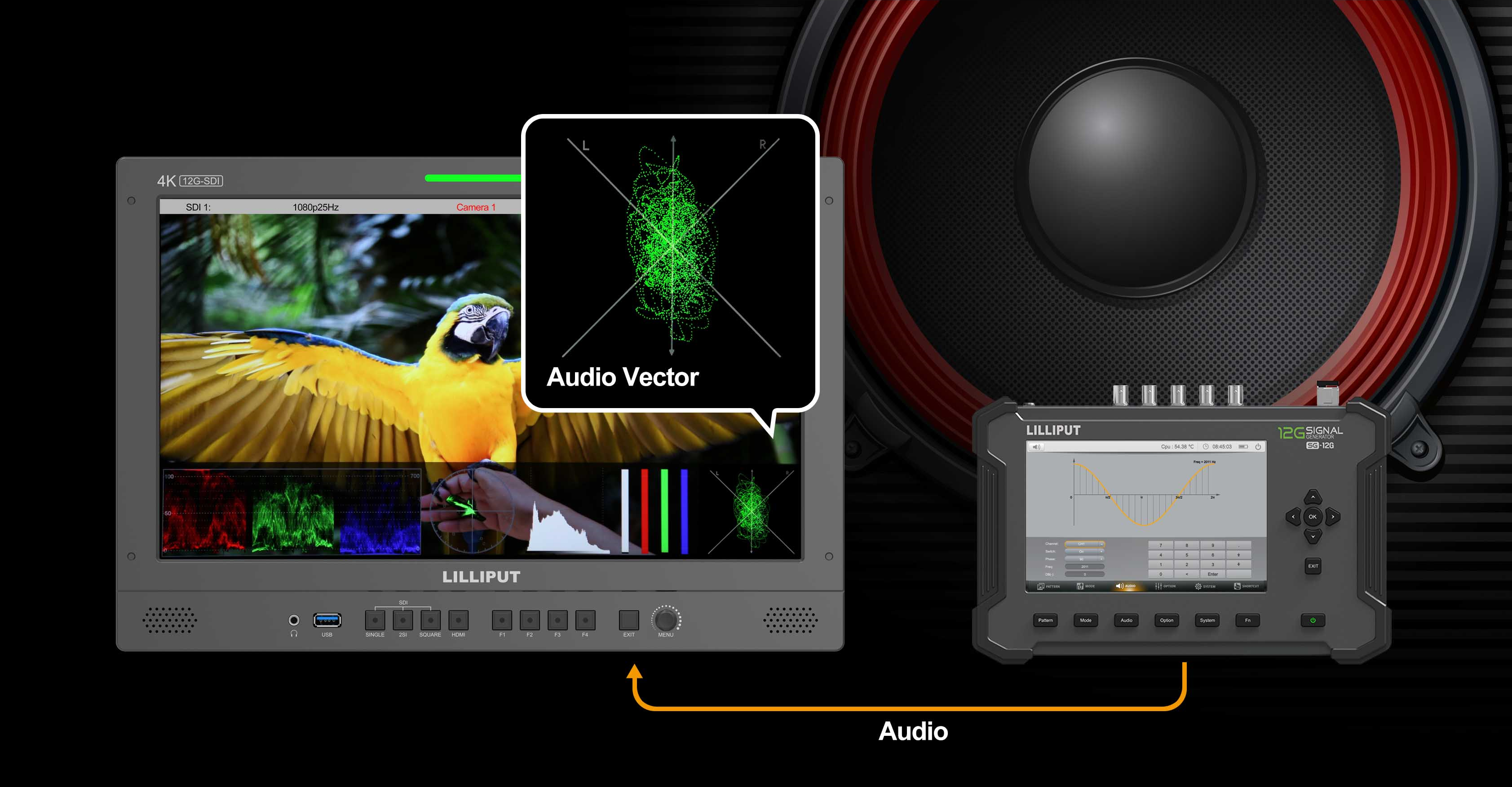

The Lilliput Q15 is a stable work horse machine, packed with features and facilities for the serious photographer, videographer, or cinematographer. Compatible with a multitude of inputs - and featuring an optional 12G SDI SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording  -  a first for a Lilliput monitor.



Audio In / Out (48 kHz PCM Audio)
Built In Speakers 2x
Ear Jack 3.5mm
Display
Aspect Ratio 16:9
Brightness 330cdm²
Contrast Ratio 1000:1
Resolution
Technology Caklibration to REC.709 with optional calibration unit
Viewing Angle 176° / 176° (H/V)
HDR ST2084 - 300/ 1000/10000/HLG
LUT Support 3D LUT (.cube format)
Screen Size 15.6"
Supported Log Formats SLog2 / SLog3 / CLog / NLog / Arrilog / JLog / User
Remote Control
GPI 1
LAN 1
Supported Formats
HDMI Formats Supported 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
SDI Formats Supported 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
SFP Formats Supported 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
Video Loop Output
HDMI Video Loop Output 1x HDMI 2.0
SDI Video Loop 2x12G, 2x3G (Supported 4K-SDI Formats Single / Dual / Quad Link)

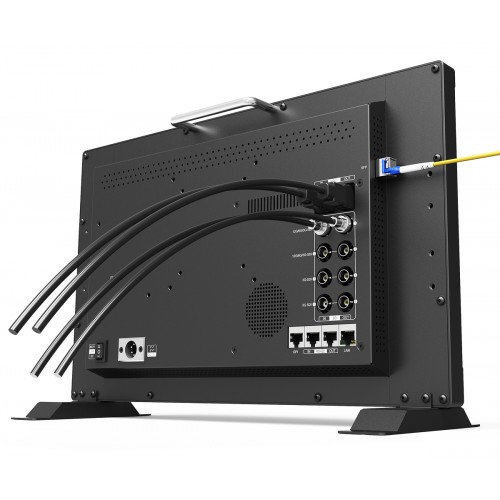

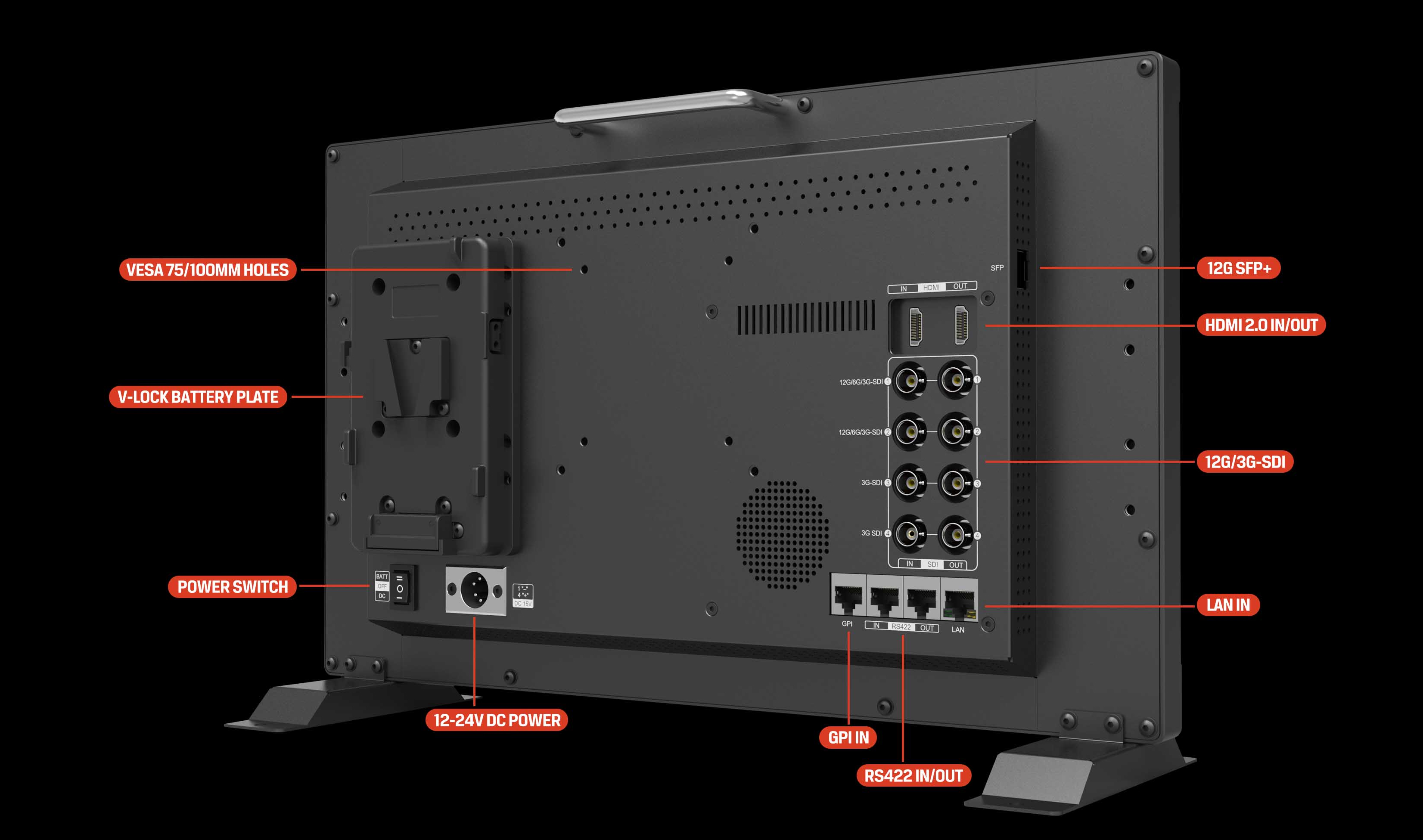

Connections
HDMI Video Input 1x HDMI 2.0
SFP 1x 12G SFP+ (Fiber module optional)
SDI Video Input 2x12G, 2x3G (Supported 4K-SDI Formats Single / Dual / Quad Link)
Size
Dimensions 393 x 267 x 51.4mm
Weight 2.93Kg
Power
Battery V-Lock or Anton Bauer Compatible (Battery not included - requires 14.8V)
Input Voltage DC 12-24V
Power Consumption =< 32.5W (15v)
Environment
Operating Temperature 0°c - 40°c
Storage Temperature -20°c - 60°c
