Blackmagic Design Fairlight HDMI Monitor Interface, a compact video signal converter that changes the Ethernet data from a Fairlight Console Channel Control to standard HDMI format. It also features an Ethernet/SDI input switch to select the SDI

Blackmagic Design RESFA/MONINT Overview

Make your existing HDMI monitor compatible with a Fairlight console by utilizing the Blackmagic Design Fairlight HDMI Monitor Interface, a compact video signal converter that changes the Ethernet data from a Fairlight Console Channel Control to standard HDMI format. It also features an Ethernet/SDI input switch to select the SDI input for lip sync checks.

In addition to the HDMI Type-A output for connection to your HDMI display, this interface incorporates two SDI outputs to allow hookup to a remote SDI monitor. LEDs are present for easy verification of valid Ethernet and SDI input signal. Configuration and updates are handled through USB and power is provided via the included external power supply.

Use HDMI Monitors with Fairlight Consoles
If you are using the Fairlight Console components in your own custom desk with HDMI monitors, you can use Fairlight HDMI Monitor Interface to generate the graphical feedback from Fairlight Console Channel Control. This compact converter can be placed discretely on the back of your HDMI monitor and converts the Fairlight console Ethernet data to HDMI.
Instant Graphic Feedback
You get instant graphic feedback for the channel control status just as you would with the Fairlight Console LCD Monitor.
SDI Support
The interface input can also be switched to SDI so you can see the talent up close for checking lip sync while editing. The SDI output mirrors the HDMI output so you can connect the interface to a remote SDI monitor.

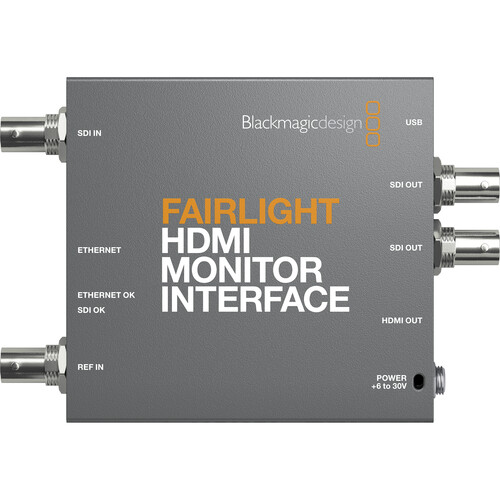

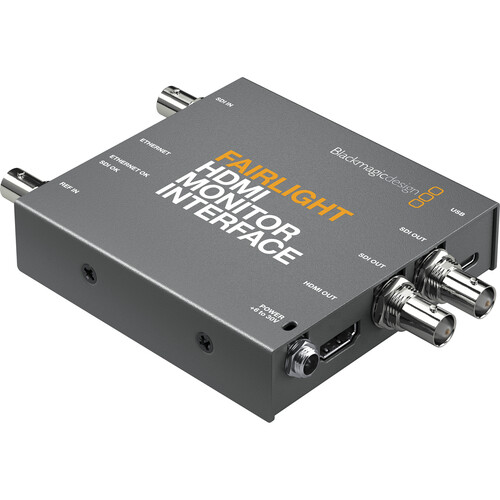

I/O Ports
  • Ethernet input on an RJ45 port
  • 3G-SDI input on a BNC jack
  • Dual 3G-SDI outputs on BNC jacks
  • HDMI Type-A output
Input Status LEDs
The interface features status LEDs for easy confirmation of valid Ethernet and SDI input signal.
Configuration and Updates via USB Type-C
A USB Type-C port is provided for software configuration (via Fairlight Studio and Console setup utility) and software updates.
Convenient Software Upgrades
The Fairlight HDMI Monitor Interface utilizes an internal software upgrade function via an updater application.
External Power Supply
The Fairlight HDMI Monitor Interface comes with a +12V universal power supply and international socket adapters

Blackmagic Design RESFA/MONINT Specs

Video Inputs 1 x RJ45 Female
1 x BNC (3G-SDI) Female
Input Video Format SDI (4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
Audio Input Connectors None
Video Outputs 2 x BNC (3G-SDI) Female
1 x HDMI Female
Output Video Format SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Output Connectors None
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M-B/425M-A/425M-B
Other I/O 1 x BNC Reference Input
1 x USB-C Firmware, Control Input
Expansion Slots None
Wi-Fi None
Power
Power I/O 1 x Barrel (6 to 30 VDC) Input
Power Consumption 12 VDC (6 W)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm
Weight 8.1 oz / 230 g
Packaging Info
Package Weight 1.095 lb
Box Dimensions (LxWxH) 5.8 x 5.6 x 2.6"
