Blackmagic Design SmartView 4K 2

Blackmagic Design SmartView 4K 2
Blackmagic Design SmartView 4K 2Blackmagic Design SmartView 4K 2Blackmagic Design SmartView 4K 2
รหัสสินค้า SKU-01484
หมวดหมู่ BLACKMAGIC MONITER
ราคา 58,830.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 26 พ.ค. 2566
อัพเดทล่าสุด 11 ต.ค. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

รายละเอียดสินค้า

Blackmagic Design SmartView 4K 2 is a professional 15.6" TFT LCD monitor with a native resolution of 3840 x 2160 and two multi-rate 12G-SDI inputs. The inputs automatically switch between SD, HD, and 4K formats, including up to DCI 4K (4096 x 2160) at 60 fps. An SMPTE-compatible optical fiber socket enables you to add a separate

Blackmagic Design SmartView 4K Overview

The Blackmagic Design SmartView 4K 2 is a professional 15.6" TFT LCD monitor with a native resolution of 3840 x 2160 and two multi-rate 12G-SDI inputs. The inputs automatically switch between SD, HD, and 4K formats, including up to DCI 4K (4096 x 2160) at 60 fps. An SMPTE-compatible optical fiber socket enables you to add a separate module for SDI fiber input.
When monitoring SD, 720p, or 1080p SDI sources, the built-in Teranex processor uses Blackmagic's PixelMotion algorithms to automatically deinterlace and scale video up to UHD 4K. This gives users optimum image quality, even when working with lower-resolution images.
Built-In Control Buttons and Customizable Frame Markers
The SmartView 4K 2's machined metal frame provides built-in control buttons for access to advanced broadcast features including 3D LUTs, H/V delay, blue channel only, and customizable frame markers. The chassis is rack-mountable (6 RU) and also has VESA mounting holes for installation on articulating arms.
Local and Remote Control
In addition to the front panel buttons, the monitor can be controlled remotely via the rear Ethernet connection using the downloadable Mac or Windows software, ideal for hard-to-reach setups. With both AC power as well as 12 VDC power inputs, the SmartView 4K is well suited for use in the studio or on the set.
DCI 4K Resolution
The 15.6" active matrix TFT LCD screen provides bright viewing with wide viewing angles. Its native 3840 x 2160 resolution displays every pixel from footage with a resolution up to DCI 4K60. It also provides high-quality upscaling of SD and HD footage to UHD 4K, letting the SmartView 4K fit into existing and future workflows.
The backlit front-panel buttons are great for use in dimly lit studios or locations, letting you set input selection, brightness, selection of 3D LUTs, and other advanced features such as H/V delay, blue channel only, and frame guides. The settings can also be adjusted remotely via a Mac or PC connected over Ethernet using the included software.
3D LUT Support
Dual 3D LUT support lets you customize color for on-set grading and monitoring. Combined with the 12G-SDI input, the SmartView 4K can display DCI 4K60 footage from high-end cameras such as the Blackmagic URSA, letting you view native LOG gamma color spaces with Rec. 709 or custom color spaces using the 3D LUTs.
Connections

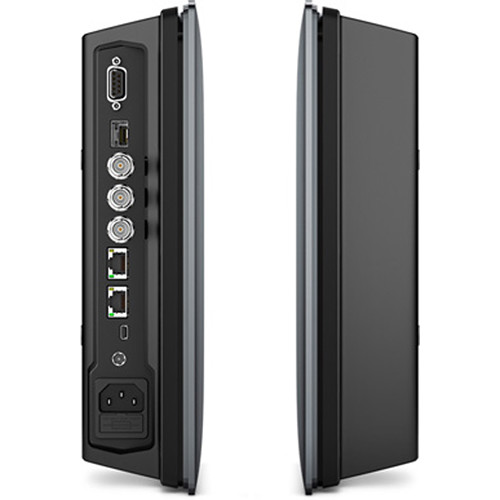

The SmartView 4K features two multi-rate 12G-SDI inputs, letting you select between two different sources with the push of a button. The connections automatically detect and reclock between single-link SD, HD, and 3G/6G/12G-SDI formats, supporting resolutions from SD to DCI 4K (4096 x 2160) at 60 fps. A 12G-SDI loop-through output is provided for sending your input signal to an additional device. There is also an SMPTE-compatible optical fiber socket for adding a module to connect via an optical fiber cable, as well as an Ethernet port with loop-through, AC and DC power inputs, a tally input connector, and a USB port for updates.
Additional Features
  • Built-in Teranex processor automatically deinterlaces and scales SD and HD video up to UHD resolution for improved quality on lower-resolution video inputs
  • Machined metal chassis
  • 19" rack-mountable; 6 RU
  • Both AC and DC power input options
SMPTE Compliance
  • SMPTE 259M, SMPTE 292M, SMPTE 296M
  • SMPTE 372M, SMPTE 424M Level A and B
  • SMPTE 425M, SMPTE 2082

Blackmagic Design SmartView 4K Specs


Display
Panel Type TFT LCD
Display Size 15.6" / 39.6 cm
Resolution 3840 x 2160
Aspect Ratio 16:9
Touchscreen No
Contrast Ratio 1000:1
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi) 282 ppi
Response Time 25 ms
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR, HDR
Image Controls Blue Only, Focus Peaking, H/V Delay, Pixel Zoom
Video I/O 2 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
Embedded Audio SDI: 16-Channel
Audio I/O None
Built-In Speaker None
Other I/O 2 x RJ45 (LAN)
1 x DE-9/DB-9 (Tally)
1 x Mini-USB 2.0
Expansion Slots 1 x SFP+ Slot
Media/Memory Card Slot None
Format Support
Video Format SDI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
DCI 2K PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Power
AC Input Power 90 to 240 VAC, 50 / 60 Hz
DC Input Power 12 to 15 VDC
Battery Type None
Power Consumption 24 W (Maximum)
Mounting
Rack Form Factor 6 RU
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 90%
Storage Temperature -4 to 140°F / -20 to 60°C
General
Material of Construction Metal
Dimensions 18.98 x 10.47 x 2.75" / 48.21 x 26.59 x 6.96 cm
Weight 7.94 lb / 3.60 kg
Packaging Info
Package Weight 9.585 lb
Box Dimensions (LxWxH) 20.8 x 12.3 x 3.7"
