Blackmagic Design ATEM Streaming Bridge

Blackmagic Design ATEM Streaming Bridge
Blackmagic Design ATEM Streaming BridgeBlackmagic Design ATEM Streaming BridgeBlackmagic Design ATEM Streaming BridgeBlackmagic Design ATEM Streaming Bridge
รหัสสินค้า SKU-01511
หมวดหมู่ Blackmagic Switcher
ราคา 10,500.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 29 พ.ค. 2566
อัพเดทล่าสุด 15 ต.ค. 2567
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

รายละเอียดสินค้า

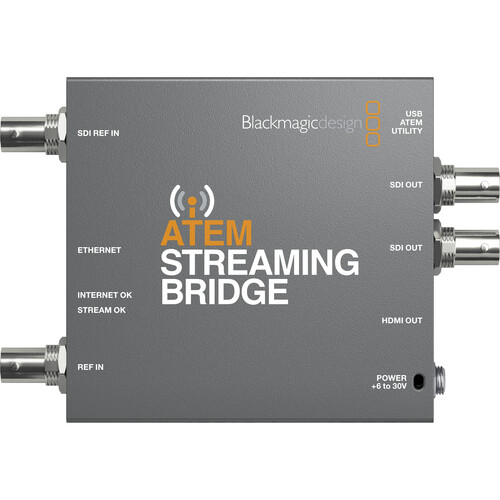

Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers allows you to convert the IP signal from any ATEM Mini Pro unit into SDI and HDMI video. It features two SDI outputs and a single HDMI output and supports resolutions up to 1080p60.

Blackmagic Design Atem Streaming Bridge Overview
Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers allows you to convert the IP signal from any ATEM Mini Pro unit into SDI and HDMI video. It features two SDI outputs and a single HDMI output and supports resolutions up to 1080p60. You can connect the Streaming Bridge directly to the streaming output of your ATEM Mini Pro, and it will provide SDI and HDMI output for use in broadcast environments, or directly to a monitor. You can also connect the streaming bridge to the same LAN that an ATEM Mini Pro is connected to, and the devices will find each other allowing you to easily stream across the network.

The downloadable software enables you control the decoding settings as well as set an IP address to the device and save that information to your computer. That information can be emailed to any computer connected to an ATEM Mini Pro, and this allows the ATEM Mini Pro to locate and stream to the Streaming Bridge connected to the internet.

Blackmagic Design Atem Streaming Bridge Specs


Inputs / Outputs
Audio Inputs None
Video Outputs 2 x BNC (3G-SDI)
1 x HDMI (HDMI 1.4)
Audio Outputs None
Other I/O 1 x RJ45
2 x BNC Reference
Expansion Slots None
Format Support
Output Video Format HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M-B/425M-A/425M-B
IP Streaming
Video IP Decoding H.264: 1920 x 1080
Hardware
Wi-Fi None
Power
Power I/O 1 x Barrel (6 to 30 VDC) Input
Power Consumption Device: 6 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% (Recommended)
General
Certifications CE, FCC, Kcc
*as per Manufacturer
Dimensions 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm
Weight 8.1 oz / 230 g
Packaging Info
Package Weight 1.07 lb
Box Dimensions (LxWxH) 5.8 x 5.5 x 2.7"
