Blackmagic Design GPI & Tally Interface

Blackmagic Design GPI & Tally Interface
Blackmagic Design GPI & Tally InterfaceBlackmagic Design GPI & Tally InterfaceBlackmagic Design GPI & Tally InterfaceBlackmagic Design GPI & Tally Interface
รหัสสินค้า SKU-01529
หมวดหมู่ Blackmagic Switcher
ราคา 22,150.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 29 พ.ค. 2566
อัพเดทล่าสุด 11 ส.ค. 2567
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

รายละเอียดสินค้า

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used

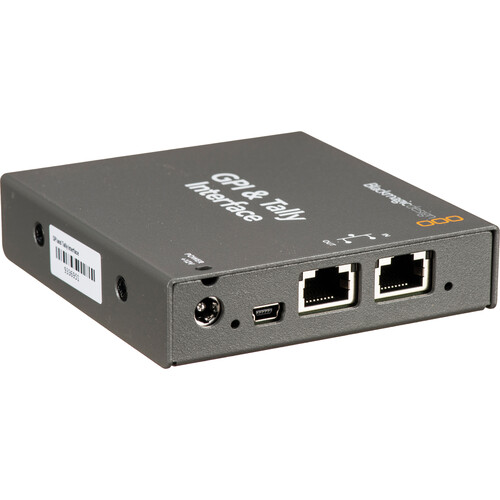

Blackmagic Design GPI & Tally Interface

The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

Displays tallies for indicating the on-air status of video signals
8 contact closure inputs & 8 contact closure outputs
Compatible with ATEM switchers and Videohub routers
Connect to multiple interfaces offering enhance flexibility in operation

Blackmagic Design GPI & Tally Interface Specs

Connections dd

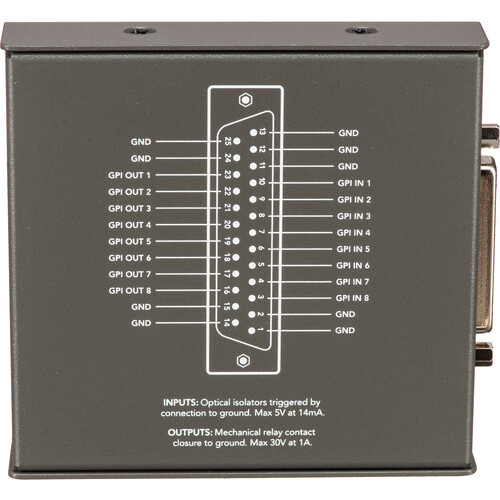

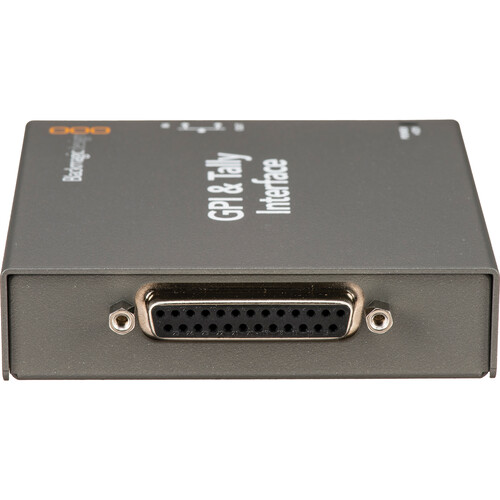

Contact Closure 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
Inputs Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
Outputs Mechanical relay contact closure to ground (maximum 30 V @ 1 A)

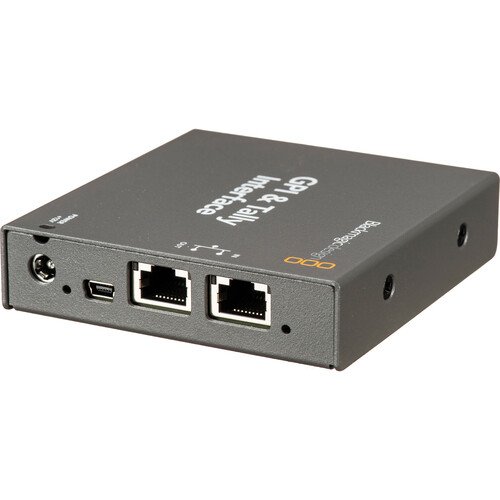

Ethernet 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates
Extras
Software Included Configured via ATEM Switcher utility
Firmware Upgrade Firmware built into software driver. Loaded at system startup or via updater software
Operating System Microsoft Windows 7 and Apple Mac OS X
Power Supply 12 V power supply included with international socket adapters for all countries
Packaging Info
Package Weight 0.92 lb
Box Dimensions (LxWxH) 5.7 x 5.45 x 2.55"
