AVMATRIX PVS0613U Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display
| รหัสสินค้า | SKU-01531 |
| หมวดหมู่ | AVMatrix Switcher |
| ราคา | 45,000.00 บาท |
| VAT7% | กรุณาติดต่อสอบถาม |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 29 พ.ค. 2566 |
| อัพเดทล่าสุด | 31 ส.ค. 2566 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | ชิ้น |
รายละเอียดสินค้า
AVMATRIX PVS0613U Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display
The Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display from AVMATRIX supports a mix of different resolutions and frame rates up to 1080p60 over two HDMI and four SDI auto-detecting inputs. The switcher provides a flexible solution for sports, events, education, and various other live production applications. All the signals can be scaled to 1080p60 or 1080i60 on PGM output, and you can switch between the sources and apply audio mixing and transition effects.
Featuring a USB-C 3.0 output, the switcher can also be connected to your Windows/Mac/Linux computer as if it was a webcam. You'll be able to stream connected video and audio signals to UVC/UAC compatible platforms such as OBS Studio, Skype, YouTube Live, Facebook Live, Zoom, and Teams.

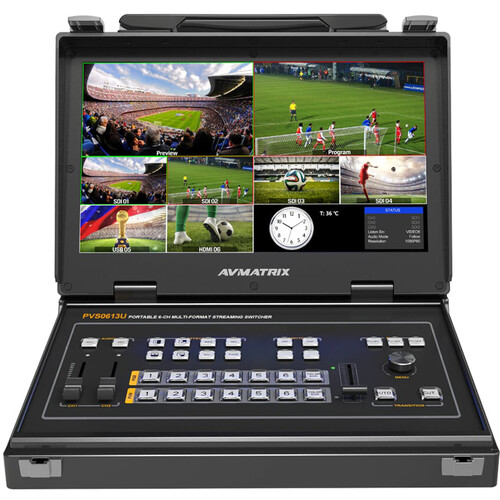

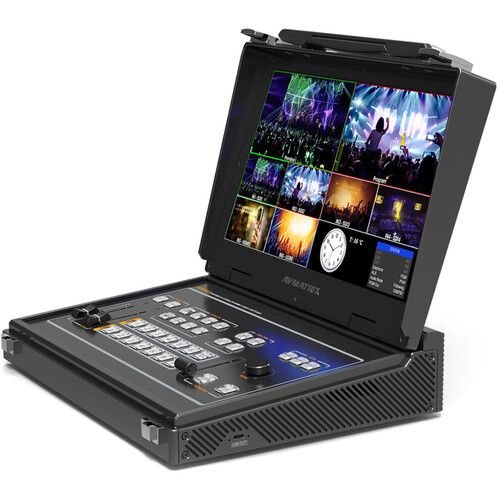

In an all-in-one portable design, the switcher is housed in a robust metal case and has a 13.3" Full HD IPS display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter. A clock and a menu list are also displayed in the bottom right corner.
AVMATRIX PVS0613U Specs
| Video Inputs | 2 x HDMI 4 x BNC (3G-SDI) |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo 1 x 2RCA Analog |
| Video Outputs | 1 x HDMI (Program) 2 x BNC (3G-SDI) (Program) 1 x USB-C |
| Output Video Format | HDMI / SDI 1080p at 24/25/30/50/60 fps 1080i 50/60 fps USB-C WUXGA (1920 x 1200) 1080p WUXGA+ (1680 x 1050) UXGA (1600 x 1200) WXGA+ (1440 x 900) FWXGA (1366 x 768) SXGA (1280 x 1024) 1280 x 960 WXGA (1280 x 800) 1280 x 720 (Non-Standard WXGA) XGA (1024 x 768) 1024 x 576 960 x 540 856 x 480 SVGA (800 x 600) 576i / 625 lines 720 x 480 VGA (640 x 480) 640 x 360 |
| Audio Outputs | 1 x 1/8" / 3.5 mm TS Stereo 1 x 2RCA Analog |
| Multiview Output | 6-Way Multiview viaHDMI, SDI |

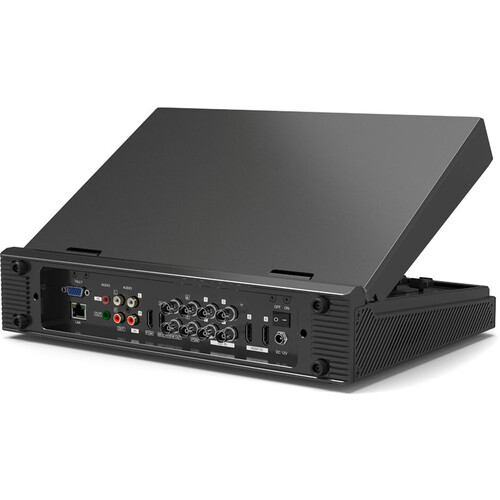

| Other I/O | 1 x BNC Output 1 x DE-15/DB-15 Tally 1 x RJ45 LAN |
| Video Standard Compliance | SMPTE 259M/292M/424M |
| Display Size | 13.3" |
| Screen Resolution | 1920 x 1080 |
| OS Compatibility | Windows 10 Windows 8 Windows 7 macOS 10.8 or Later Linux 2.6.38 or Later *As of March, 2021: Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi | None |
| Bluetooth | None |
| Power I/O | 1 x Barrel (12 VDC at 2 A) Input |
| Power Consumption | 25 W |
| Operating Temperature | 12 to 92°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 20 to 70% |
| Dimensions | 13 x 9.6 x 2.6" / 330 x 244 x 67 mm |
| Weight | 8.8 lb / 4 kg |
| Package Weight | 11.405 lb |
| Box Dimensions (LxWxH) | 15.2 x 14.5 x 5" |
