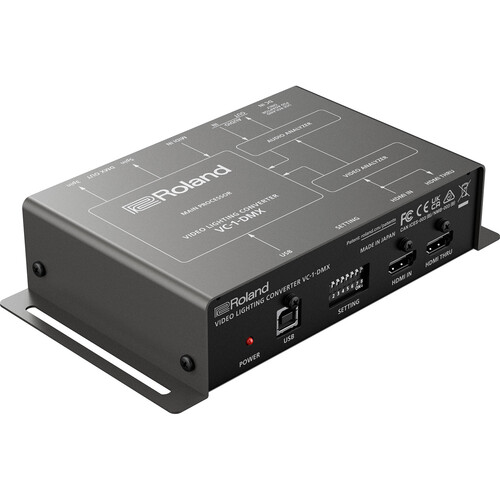

The folks at Roland know that the VC-1-DMX Video Lighting Converter is a unit for dynamic lighting that elevates the energy and excitement of any interactive event, from music concerts and dance clubs to house parties and the local karaoke bar. With the VC-1-DMX Video Lighting Converter, it's never been easier to bring the impact of a pro light show to any event you put on.
The VC-1-DMX automatically generates control commands for your DMX lighting setup based on input from video and audio sources, eliminating the need for a dedicated lighting operator. Color and brightness change based on the current video image and lights, and the mirror balls operate in sync with the music tempo. And if you want to dive deeper, the VC-1-DMX supports external MIDI operation from hardware control surfaces, electronic musical instruments, and computer-based production software.
- Automatically generates dynamic lighting effects to enhance any event
- Outputs a DMX signal synchronized with incoming video and audio signals
- Real-time analysis and lightning-fast processing with advanced Roland technology

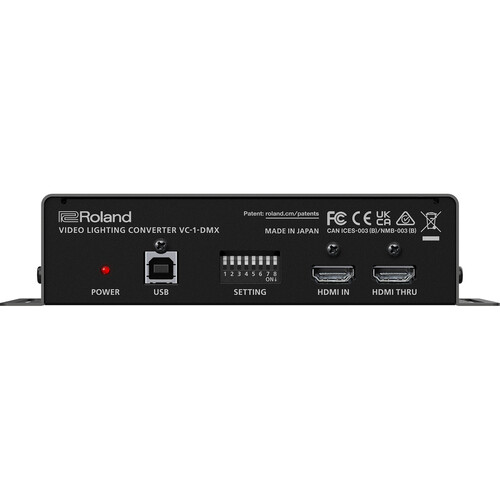

- Connect your A/V source to the HDMI input for analysis and distribute the unprocessed signal to a monitor or switcher via HDMI thru
- Analog audio is also supported with stereo I/O
- Supports external MIDI control via dedicated MIDI input and USB MIDI
- Customize DMX settings with dedicated software for macOS and Windows
- Select preset maps for various DMX lighting fixtures with dip switches on the side panel
- 480i59.94
- 576i50
- 480p59.94
- 576p50
- 720p59.94
- 720p50
- 1080i59.94
- 1080i50
- 1080p59.94
- 1080p50
- VGA (640 x 480, 60 Hz)
- SVGA (800 x 600, 60 Hz)
- XGA (1024 x 768, 60 Hz)
- HD (1280 x 720, 60 Hz)
- XGA (1280 x 800, 60 Hz)
- SXGA (1280 x 1024, 60 Hz)
- FWXGA (1366 x 768, 60 Hz)
- SXGA+ (1400 x 1050, 60 Hz)
- UXGA (1600 x 1200, 60 Hz)
- Full HD (1920 x 1080, 60 Hz)
- WUXGA (1920 x 1200, 60 Hz)
- Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11
- 1920 x 1200, 60 Hz: Reduced blanking.
Roland VC-1-DMX Specs
GeneralChannels 512 Dimming Yes Cooling System Passive PowerPower Source AC Adapter EnvironmentalEnvironmental Protection None PhysicalRack Mount Yes Dimensions 7.1 x 4.5 x 1.6" / 180.0 x 115.0 x 41.0 mm Weight 1.3 lb / 570 g Packaging InfoPackage Weight 2.7 lb Box Dimensions (LxWxH) 16.8 x 14.6 x 6.6"
