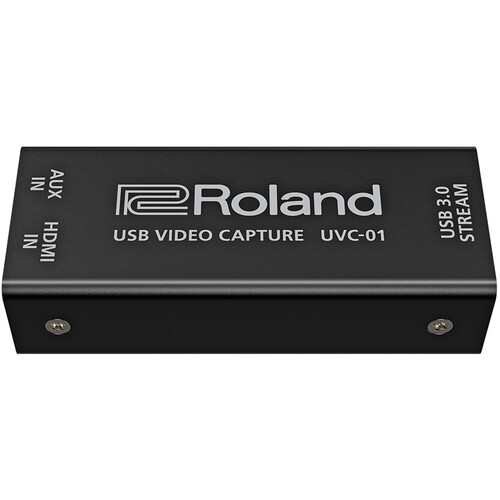

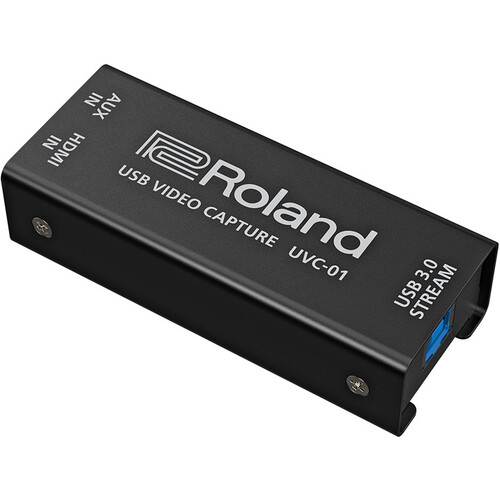

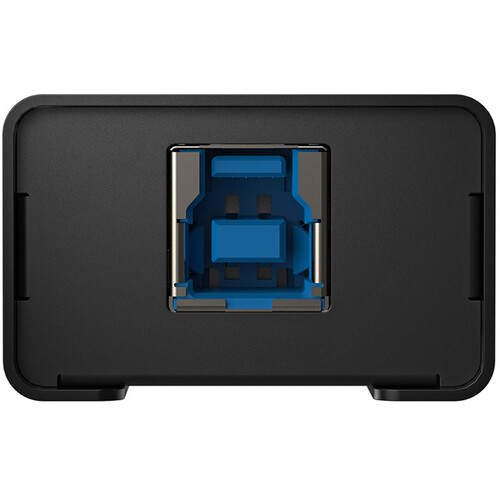

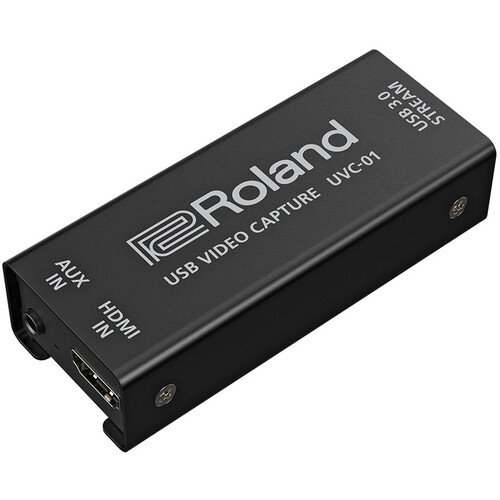

The Roland UVC-01 USB Video Capture allows you to connect an HDMI source to your computer to integrate the signal into your live streams. Simply connect your HDMI-equipped camera, switcher, game system, or other device to the HDMI input, and then plug the UVC-01 to your computer's USB port using an included USB cable. The UVC-01 supports up to uncompressed 1080p60 resolution and works plug-and-play with Mac and Windows computers.
With your signal sent to the computer, you can use it in various streaming platforms, such as OBS, YouTube Live, and Facebook Live. You can also use your HDMI camera as a webcam using this device, so that you can capture higher-quality webcam video.

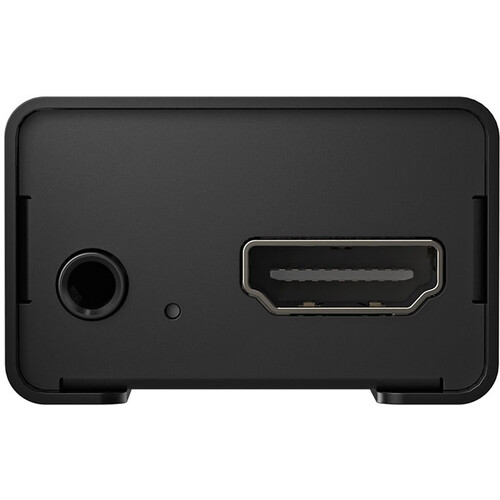

The UVC-01 features an ultra-compact and lightweight design and can easily be incorporated into your setup, and it's powered from your computer over the USB connection. While it supports embedded HDMI audio on input and output, it also offers a 3.5mm AUX audio input port for connecting independent audio.
Roland UVC-01 Specs
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| System Connection | USB-B 3.0 / 3.1/3.2 Gen 1 |
| Video Inputs | 1 x HDMI |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog |
| Input Video Format | HDMI 1080p at 50/59.94/60 fps 1080i 50/59.94 fps 720p 50/59.94/60 fps UXGA (1600 x 1200) 60 fps SXGA+ (1400 x 1050) 60 fps FWXGA (1366 x 768) 60 fps SXVGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 60 fps VGA (640 x 480) 60 fps 576p 50 fps 576i / 625 lines 50 fps 480p 59.94 fps 480i / 525 lines 59.94 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz LPCM (Linear Pulse-Code Modulation): 44.1 kHz |
| Output Video Format | USB-B 1080p at 60 fps WUXGA (1920 x 1200) 60 fps 720p 60 fps HD+ (1600 x 900) WUXGA+ (1680 x 1050) UXGA (1600 x 1200) WXGA+ (1440 x 900) FWXGA (1366 x 768) 1360 x 768 WXGA (1280 x 800) SXGA (1280 x 1024) XGA+ (1152 x 864) XGA (1024 x 768) 1024 x 576 960 x 540 856 x 480 SVGA (800 x 600) 576i / 625 lines 720 x 576 720 x 480 VGA (640 x 480) 640 x 360 QVGA (320 x 240) |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Embedded Audio | HDMI |
| Dimensions | 3.5 x 1.5 x 0.9" / 90 x 37 x 23 mm |
| Weight | 3.4 oz / 96 g |
| Package Weight | 0.52 lb |
| Box Dimensions (LxWxH) | 6.8 x 5.6 x 1.7" |
