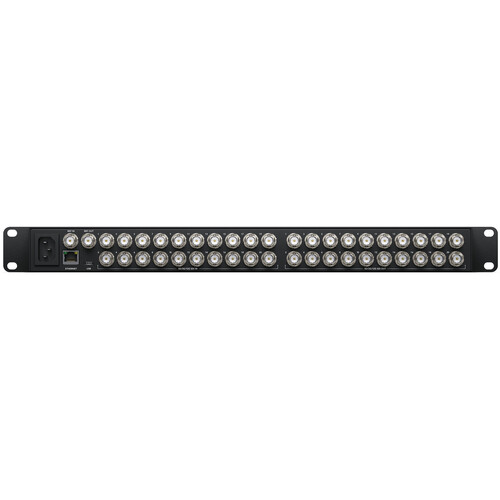

Blackmagic Videohub 20x20 12G

Blackmagic Videohub 20x20 12G
Blackmagic Videohub 20x20 12GBlackmagic Videohub 20x20 12G
รหัสสินค้า SKU-01603
หมวดหมู่ Routing & Distribution
ราคา 107,150.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 1 มิ.ย. 2566
อัพเดทล่าสุด 11 ส.ค. 2567
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

รายละเอียดสินค้า

Blackmagic Videohub 20x20 12G Support a mix of multiple video formats using the Videohub 20x20 from Blackmagic Design. This advanced router provides 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 20x20 12G centralizes all your SDI cables in one hub

Blackmagic Videohub 20x20 12G

Support a mix of multiple video formats using the Videohub 20x20 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 20x20 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering, to route video to multiple streaming processors for all your broadcast platforms, or to add extra inputs to an ATEM switcher.
12G-SDI Multi-Rate Connections
  • Multi-rate 12G-SDI connections enable you to route up to 20 different video standards at the same time.
  • Supports up to DCI 4K60 video resolutions.
  • Provides 4:2:2 8 or 10-bit color routing in any standard.
  • Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
SDI Reclocking
  • Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
  • Reduces or eliminates signal loss and jitter when using longer cables.
Front Panel Controls
  • A sleek front panel offers multiple control options.
  • Buttons include assignable shortcuts, and In, Out, Clear, and Take buttons.
  • The machined metal spin knob provides precise control using an electronic clutch.
Optional Hardware Control Panels
  • Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
  • Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
Flexible Control
The Mac and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.
Built-In LCD
  • View your live input before routing the signal on the built-in 2.2" LCD screen.
  • Bottom labels enable you to scroll through your sources in alphabetical order.
  • Eliminates the need to add an external SDI monitor to your setup.
Setup Utility and SDK
Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.
Multiple Language Support
  • Customized support is available in:
  • English, Chinese, Japanese, Korean
  • Spanish, German, French, Russian
  • Italian, Portuguese, Turkish, Polish, Ukrainian


Blackmagic Design 20x20 Specs


Processing
Switching Type Pushbutton, Software
Processing Resolution DCI 4K at 60
Color Processing 8-Bit 4:2:2
10-Bit 4:2:2
12-Bit 4:4:4
Audio Processing 48 kHz / 24-Bit
Input
Video Inputs 20 x BNC (12G-SDI)
Input Video Format SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Input SDI
Output
Video Outputs 20 x BNC (12G-SDI)
Output Video Format SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output SDI
Connectivity
Other I/O 1 x RJ45 LAN
1 x USB-C
Video Standard Compliance SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU -R BT.601/BT.656
Display
Display Size 2.2"
Hardware
OS Compatibility macOS 12.0
macOS 13.0 or Later
Windows 10 (64-Bit Only)
Windows 11
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Wi-Fi None
Bluetooth None
Power
Power I/O 1 x IEC C14 (100 to 240 VAC) Input
Power Consumption 27.5 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% (Non-Condensing)
General
Rack Form Factor 1 RU
Dimensions 19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.42 cm
Weight 7.87 lb / 3.57 kg
Packaging Info
Package Weight 9.24 lb
Box Dimensions (LxWxH) 20.9 x 11.1 x 3.5"
