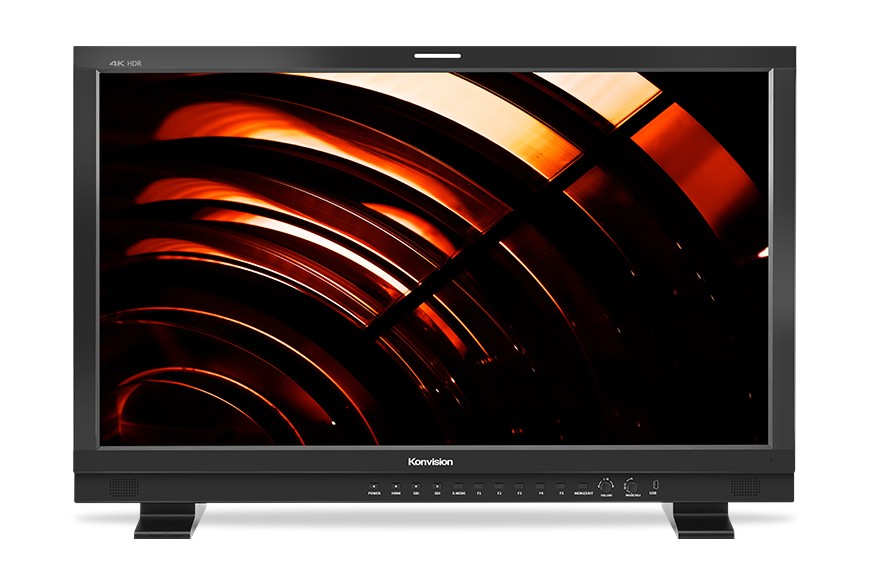

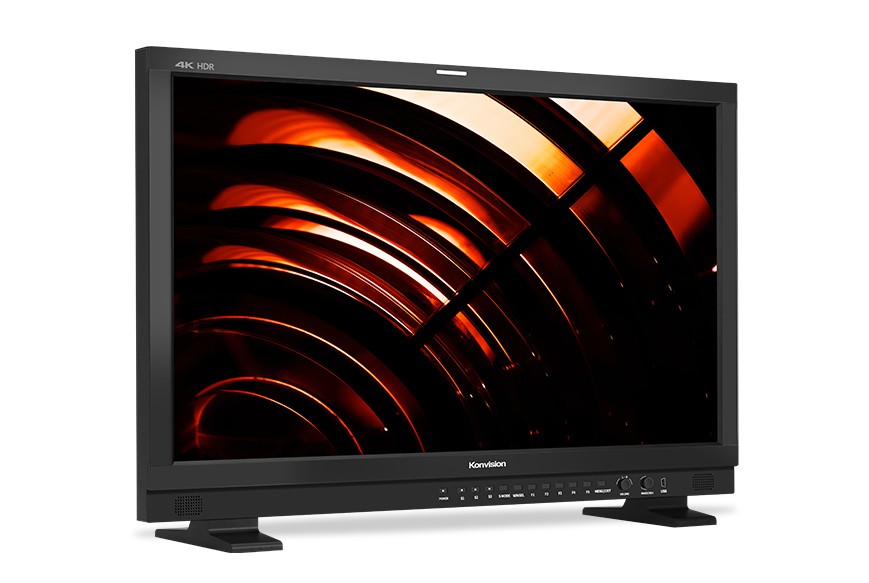

KUM-3110S (4K) 32”4K HDR OLED Monitor

KUM-3110S (4K) 32”4K HDR OLED Monitor

KUM-3110S is a 32inch OLED 4K HDR reference monitor with 2x12G-SDI inputs/outputs. 12G SDI single-link supports upto 4K signal. Its color gamut can reach more than 99% of DCI-P3 and 80% of BT2020. With 1,000,000:1 ultra-high contrast ratio and 0.0005 nit truer, deeper black, it can reproduce incredible black details and can be used for up to 30,000 hours. It is a good choice for professional and high-quality 4K/8K color grading,postproduction etc.

Highlights

- 3840x2160 4K/UHD resolution, 10BIT OLED panel

- 540nits brightness(Peak brightness)and 1,000,000:1 contrast ratio

- 12 Bit Video Processing, image no delay

- 2 x 12G-SDI inputs and outputs (6G/3G/HD/SD-SDI auto detect)

- 2 x 3G/HD/SD-SDI inputs and outputs

- 4K 12G-SDI single link signal, up to 4096 x 2160 60p

- 4K signal: 2 Sample Interleave (2SI), Square Division (SQD)

- 11 x SDI SFP+ module optical input cage

- 4K Mode, Quad-Split Mode, FHD single picture mode

- 4 x SDI Quad-View: mixed inputs & frequency rates

- Free Quad-View (boarder control/window adjustment)

- Payload ID display

- Color Space & EOTF Curves Auto Setting, matching(REC709/REC2020)

- Color Space (REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/Bypass)

- HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)

- Sony Camera Log Curves: Slog, Slog2, Slog3

- Canon Camera Log Curves: Clog, Clog2, Clog3

- ARRI Camera Log Curves: LogC

- Panasonic Camera Log Curves: Vlog, Vlog (softroll)

- Gamma (2.0, 2.2, 2.4, 2.6)，HDR Area Display

- 4K HDR Waveform, Vector Scope, Marker/Box Control Function

- 3D LUT Color calibration with ColourSpace & CalMAN

- 3rd-party 3D LUT files import(USER1/USER2)

- S1-S8 Eight Selectable Scene Settings

- Picture Flip, Focus Assist, False Color, Zebra

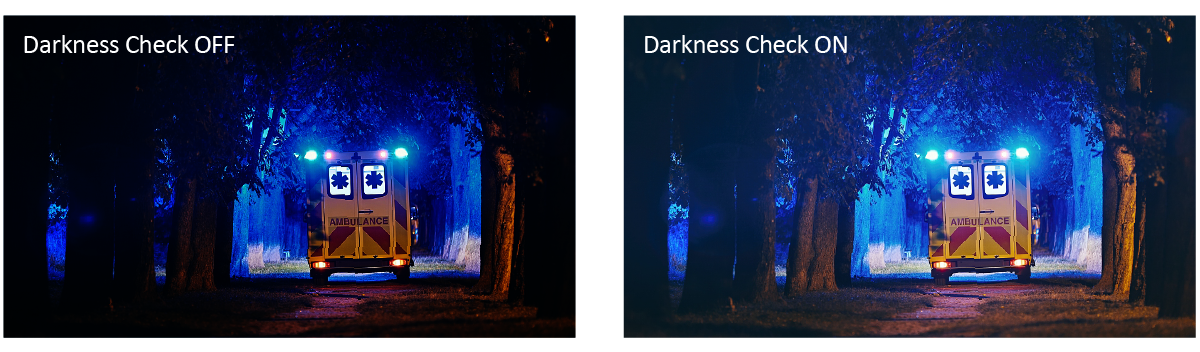

- SDR and HDR comparison, Darkness Check

- Full Scan, Over Scan, Blue/Mono Only

- 16ch Embedded Audio Level Meters

- Dynamic and Static UMD/IMD Display (TSL3.1/4.0/5.0)

- 608/708 CC Closed Caption

- Key Lock, Video Freeze

- Firmware upgrade/LUT file import via USB/Ethernet

- GPI (selectable/markable windows)

- Aluminum Alloy Casing, Built-in Speaker
