| Simultaneous playback tracks: |
2 |
| Simultaneous recording tracks: |
2 |
| |
|
| Functions: |
Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize |
| |
Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing |
| Recording formats: |
WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 |
| |
kHz/24-bit |
| A/D conversion: |
24-bit, 128x oversampling |
| D/A conversion: |
24-bit, 128x oversampling |
| Signal processing: |
32-bit |
| Recording media: |
microSD/microSDHC cards (Class 4 or higher, up to 32 |
| |
GB |
| Display: |
1.25″ monochrome LCD (96 × 64) |

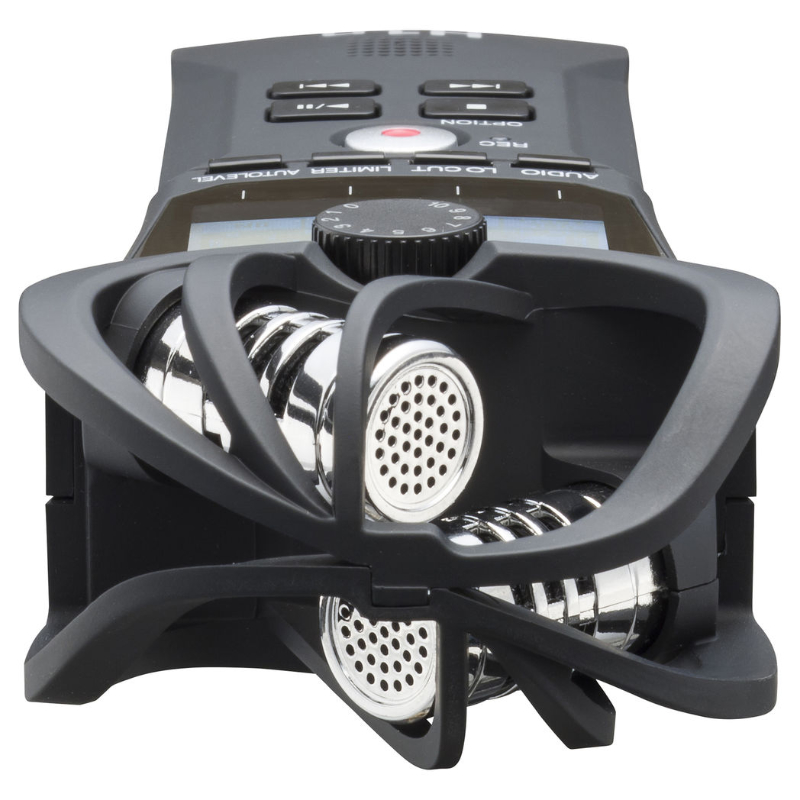

| Built-in stereo mic: |
Unidirectional condenser, 90° XY stereo format |
| |
Gain: -∞ dB to +39 dB |
| |
Maximum sound pressure level: 120 dB SPL |
| Inputs: |
1/8″ stereo phone jack |
| |
Rated input level: -∞ dB to -39 dBm |
| |
Input impedance: 2 kΩ |
| |
Plug-in power supported (2.5 V) |
| Built-in speaker: |
Built-in 500 mW mono speaker |
| |
Output impedance: 8 Ω |
| Outputs: |
1/8″ stereo phone jack (combined line/headphones) |
| |
Rated output level: 20 mW + 20 mW into 32Ω load |
| |
Output impedance: 10 kΩ or more |
| USB: |
Micro USB port |
| |
Mass storage class operation: USB 2.0 high speed |
| |
Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out |
| |
Transfer method: asynchronous |

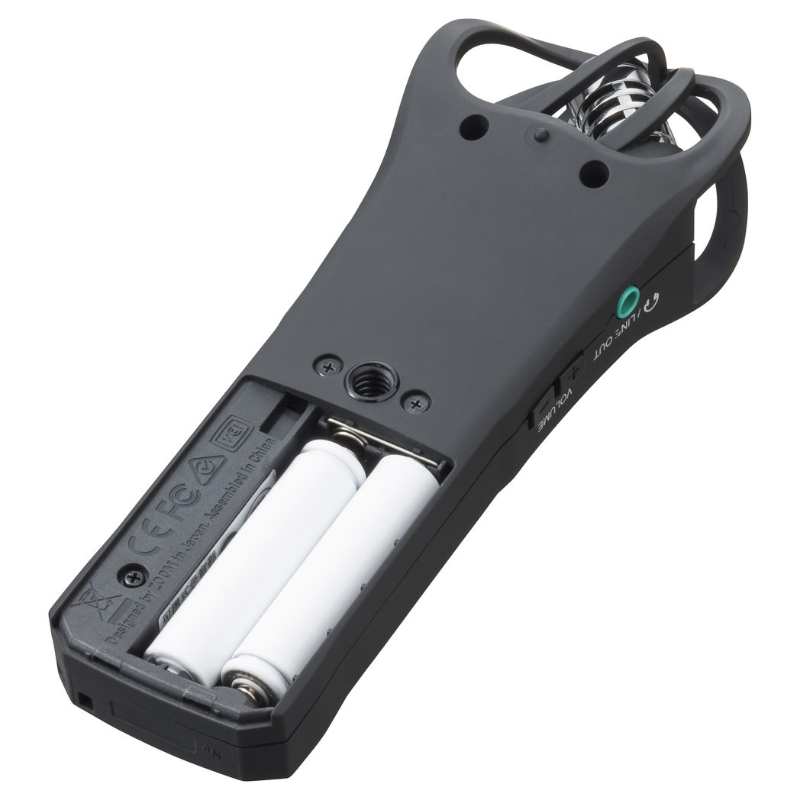

| Power requirements: |
2 AAA batteries (alkaline, nickel-metal hydride rechargeable, |
| |
or lithium) |
| |
AC adapter (ZOOM AD-17): DC 5V/1A |
| |
USB bus power |
| Battery life (alkaline batteries): |
Approximately 10 hours |
| |
(continuous recording time using built-in mic, 44.1 kHz/16-bit) |
| Dimensions: |
1.9 in (W) x 5.4 in (D) x 1.2 in (H) |
| |
50 mm (W) × 137.5 mm (D) × 32 mm (H) |
| Weight: |
0.13 lbs / 60 g (without batteries) |
