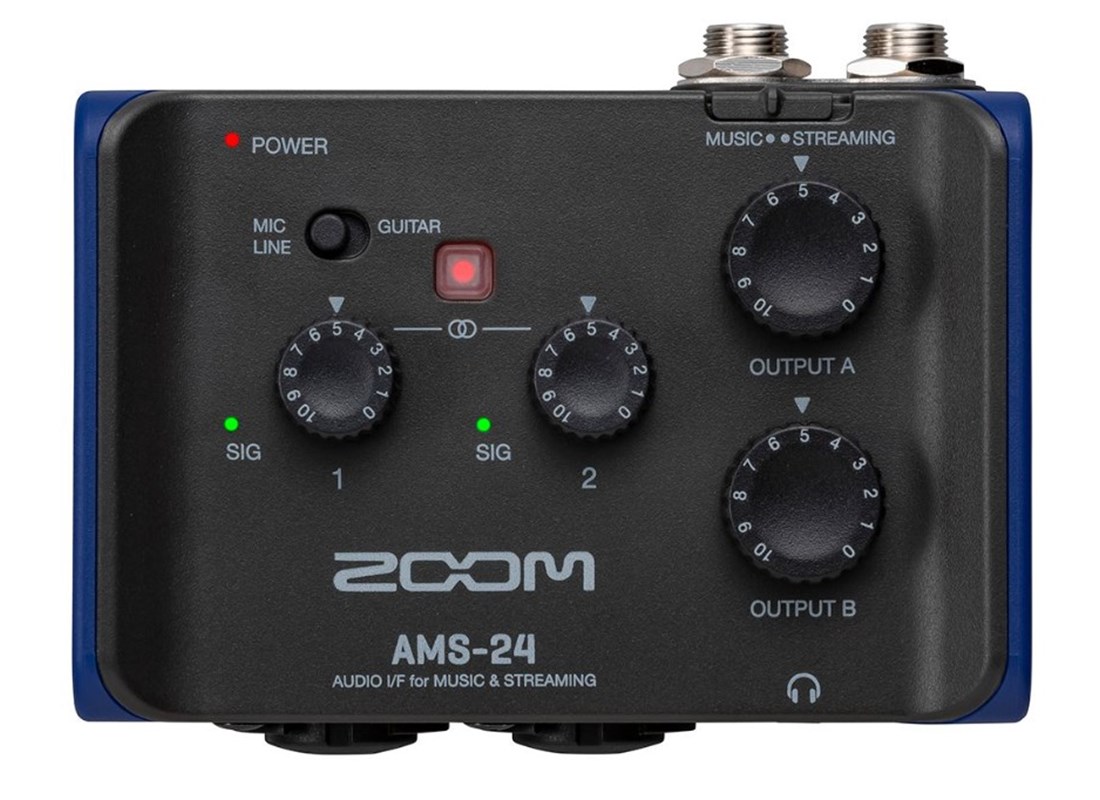

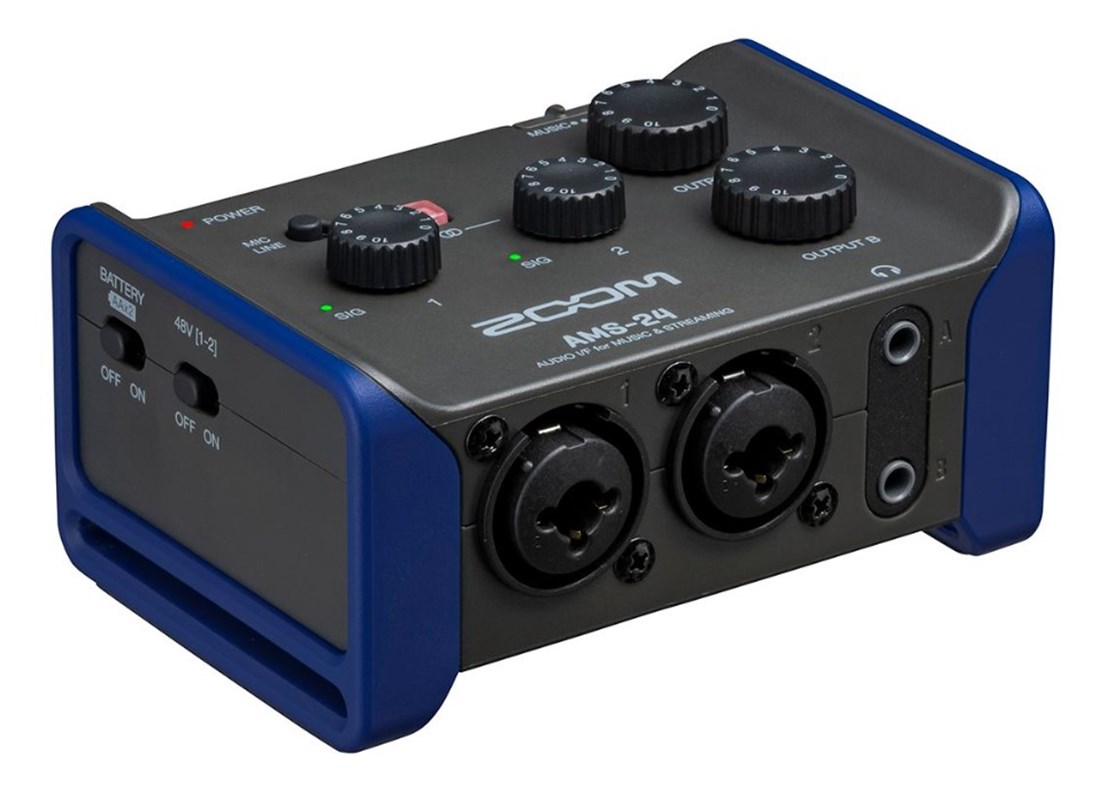

Zoom AMS-24 2CH USB-C Audio InterfaceBSW PART: AMS-24

Zoom AMS-24 2CH USB-C Audio InterfaceBSW PART: AMS-24

AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all of the typical complications. The AMS-24 is perfect for solo streams and multi-instrument sessions. It features two XLR/TRS combo inputs along with Zoom’s low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors.

What's Included:

• AMS-24 USB Audio Interface

• USB-C Cable

• Quick Tour

Specifications

Input and Output Channels:

• NUMBER OF INPUT CHANNELS: Mono (MIC/LINE) 2

 NUMBER OF OUTPUT CHANNELS:

  • Stereo (TRS) 1

  • Stereo (PHONES) 2

Connectors:

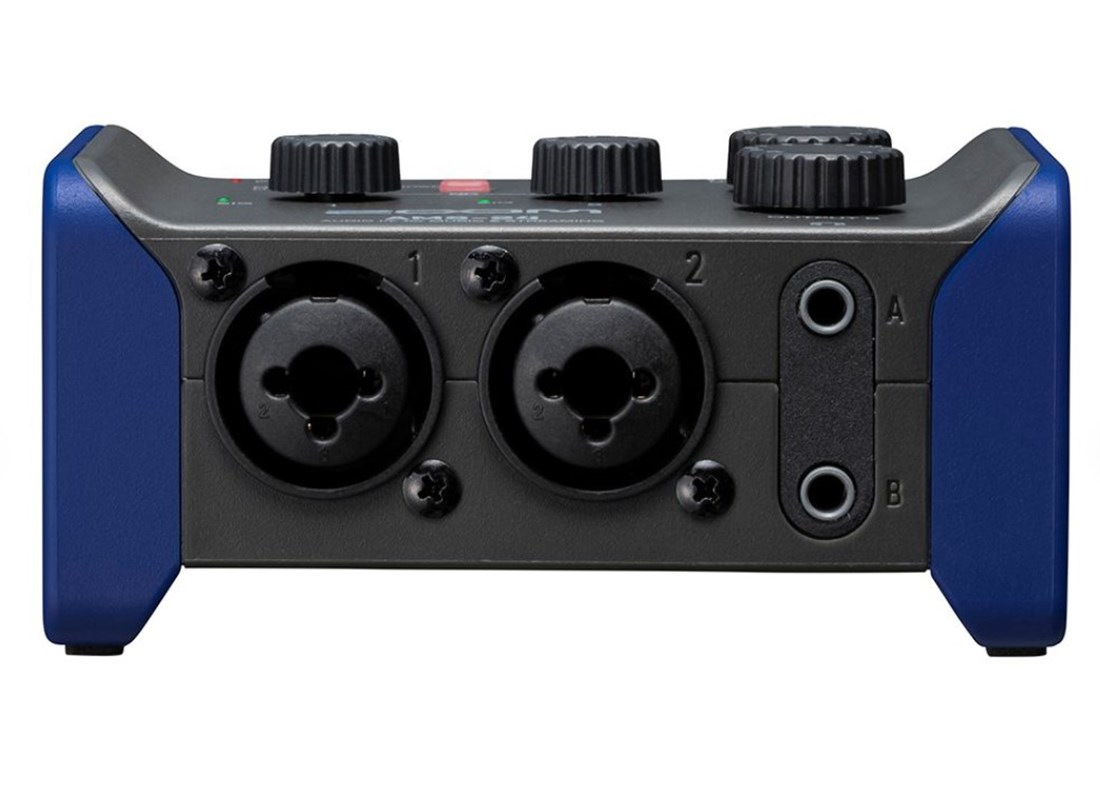

 INPUT 1–2:

 • Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

 • Input gain: −∞ – +58 dB / −∞ – +50 dB (when set to GUITAR)

  Input impedance:

   • XLR: 2.7 kΩ

   • TRS: 18 kΩ / 330 kΩ (when set to GUITAR)

  Maximum input level:

   • XLR: +6 dBu

   • TRS: +22 dBu / +8.5 dBu (when set to GUITAR)

 • Phantom: +48 V

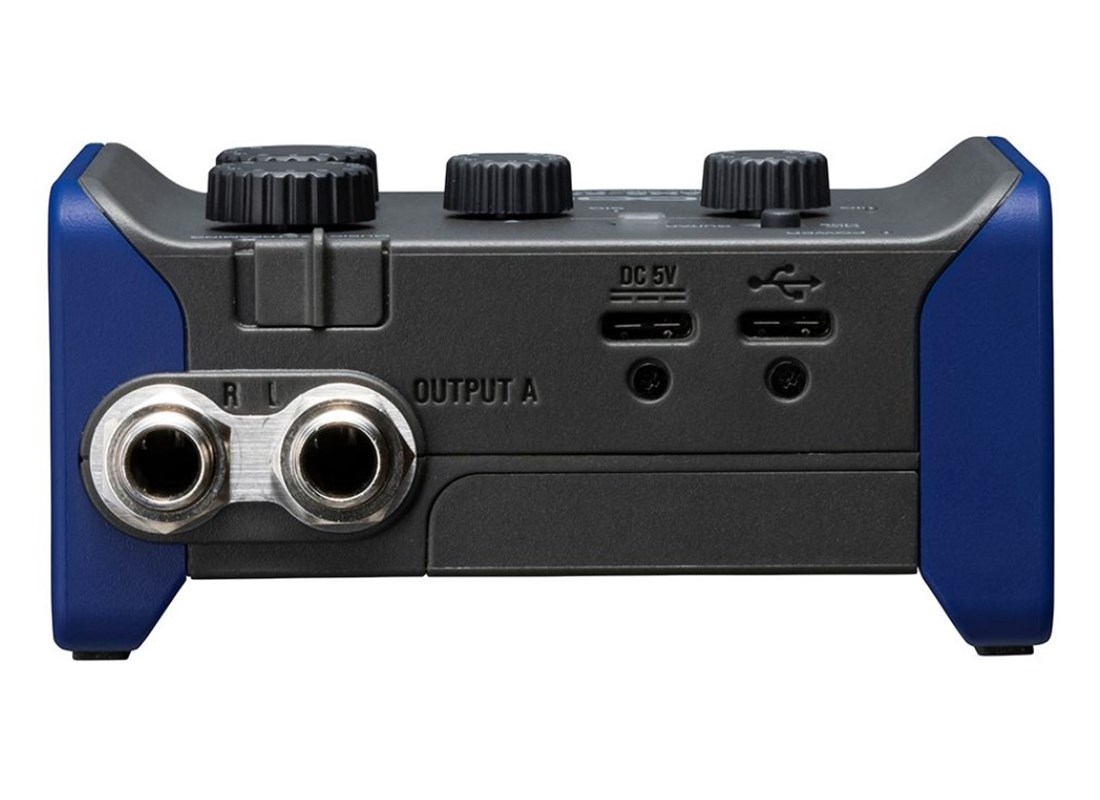

OUTPUT A (STANDARD PHONE JACKS):

 • Type: TRS phone jacks (impedance balanced)

  • Maximum output level: +10 dBu (at 0 dBFS)

 • Output impedance: 100 Ω

OUTPUT A–B (HEADPHONE JACKS):

  • Type: 3.5mm stereo mini jacks

  • 30 mW + 30 mW (32 Ω load)

  • Output impedance: 10 Ω

USB:

 • USB Type-C (audio interface function) Use a USB cable that supports data transfer. USB bus power is supported.

 • DC 5V: USB Type-C (for power supply)

Frequency Response:

• 44.1 kHz: ±1 dB (20 Hz – 20 kHz)

• 96 kHz: ±1.5 dB (20 Hz – 40 kHz)

Equivalent Input Noise:

• –120 dBu or less (IHF-A) at +58dB/150Ω input

Audio Interface:

INPUT AND OUTPUT CHANNELS:

• Recording: 2 channels

• Playback: 4 channels

• SAMPLING FREQUENCIES: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

• BIT DEPTH: 24-bit

• INTERFACE: USB 2.0

• CLASS: USB Audio Class 2.0

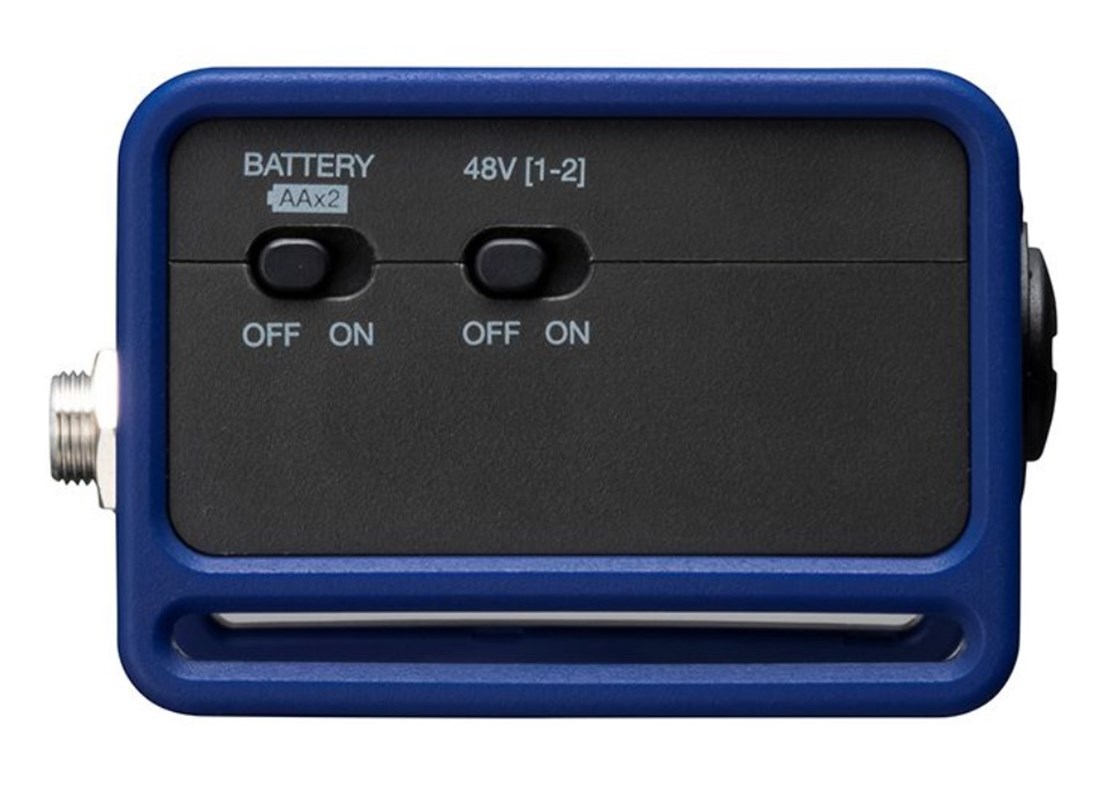

Power:

• 2 AA batteries (alkaline, lithium, or rechargeable NiMH)

• AC adapter (ZOOM AD-17): DC 5 V/1A

• USB bus power is supported.

Rated Current:

• USB/AC adapter (5 V): 380 mA

• Batteries (2.4 V): 470 mA

Estimated continuous operation time using batteries:

• 44.1 kHz, 48 V off, with 32Ω headphone load

• Alkaline batteries: about 4 hours

• NiMH batteries (1900 mAh): about 5.5 hours

• Lithium batteries: about 11 hours

 -The above values are approximate.

 -Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.

Power Consumption:

• 5 W maximum

Dimensions:

• 94.5 mm (W) × 74.0 mm (D) × 46.0 mm (H)

Weight (unit only):

• 134 g

Weight (including batteries):

• 180 g
