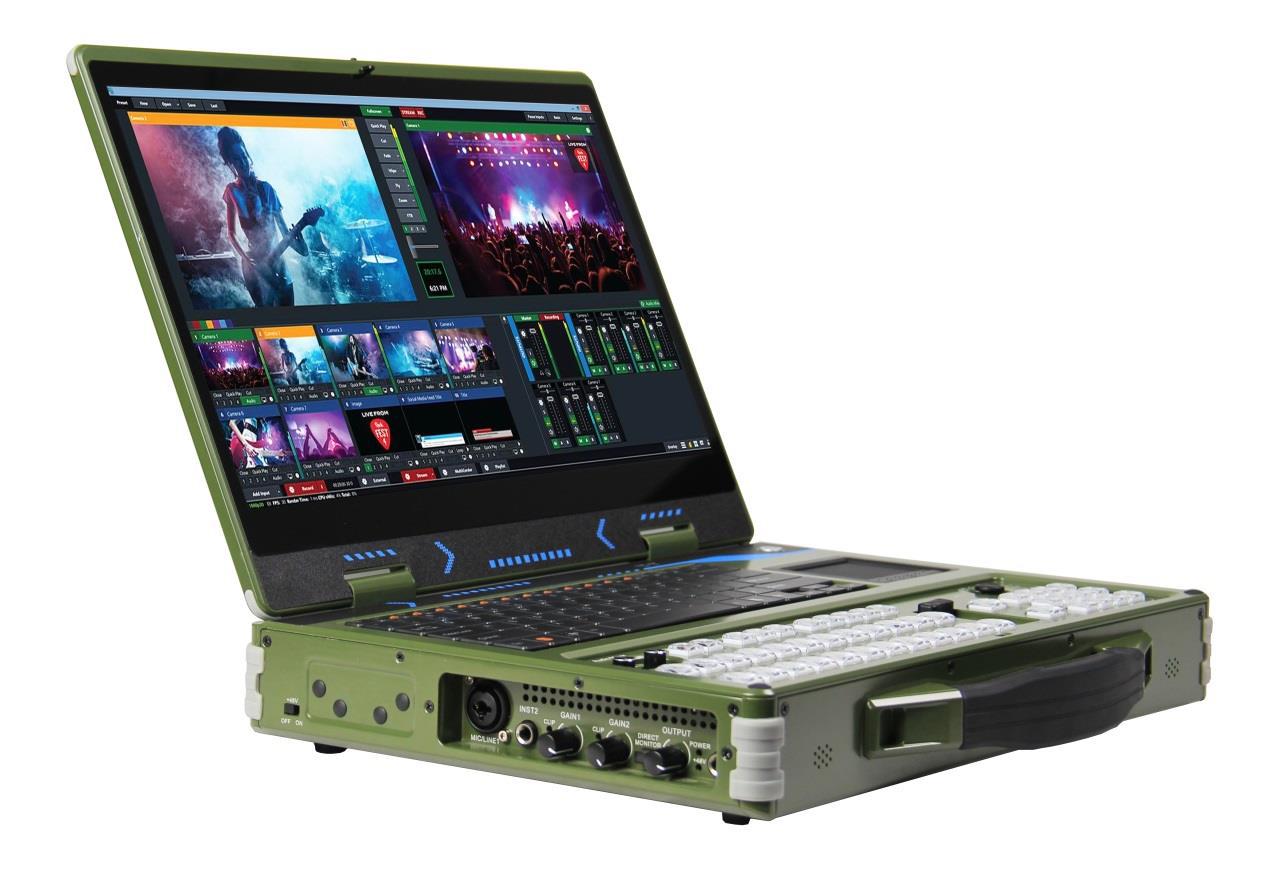

SanWarm SK-1730 All in one Vmix Switcher (สินค้าใหม่)

Portable Production Solution ALL

in One live solution b ased on vMix video streaming software The power is in your hands to produce professional live e events with extreme portability and maximum features. With up to four F ULL HD camera inputs andHDMI outputs, SK 1730 series allows productions of all siz es. If you produce house of wo rship, sports, meetings, training or any other live event, SK 1730 series live portable production solution is your go to rig.

Based on vMix

live v ideo streaming software SK 1730 series live portableproduction solution give you nearly unlimited input types, clean transitions, liveimage adjustment, virtual sets, insta nt replay and more.

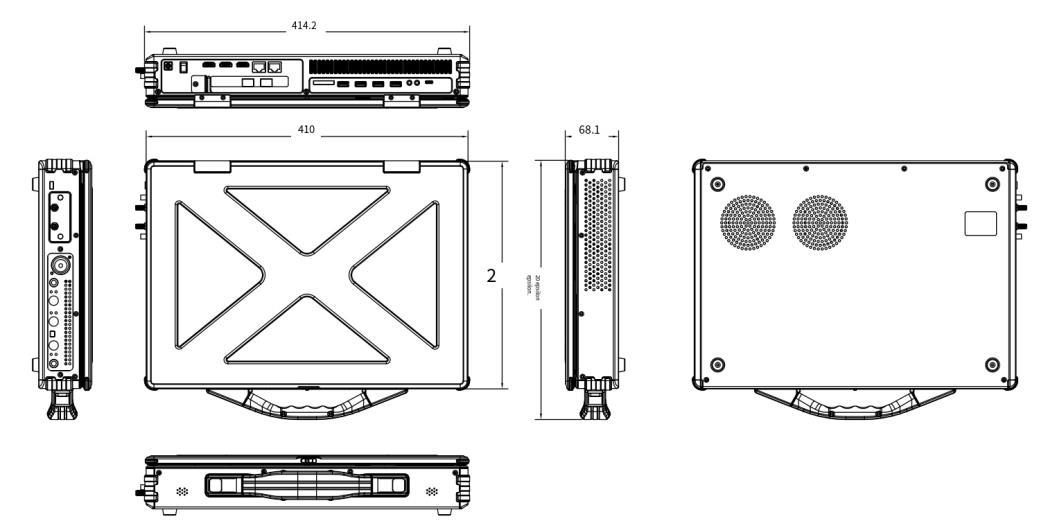

Appearance and Material

1,H igh strength shock resistant fuselageThe shell and chassis ofSK 1730 series broadcast live portable production solution are made ofmatte alloy splicing structure, which reaches the level of military grade seismic and compressiveresistance, and the firmness and structural stability are more than 99% of the same type products.

2,U ltra thin LCD screen

The main screen uses 17.3inch ultra thin LCD screen, with toughened glass film, to protect thescreen of the all in one machine to effectively offset the stress on the surface when it is underexternal force, greatly improving the force bearing capacity of the LCD screen.

3.Safety Lock

SK1730 series live portable production solution adopts upturned structural design. When youneed to expand the device, ju st slide the lock right and turn it over. When you need to close thedevice, just close the screen down and gently press it down, and hear the lock sound.

4.Operating platform

After opening theupper flap of the live portable production solution you can see the operatingplatform of the device. The operating platform is generally composed of three parts, which arethe embedded PC keyboard, midi controller switcher , and the touch pad. We will introduce thefunction an d use method of each part one by one in the following.

5. Appearance color

SK1730 series broadcast live portable production solution has three appearance colors: black,silver and army green

6,Built in sound card

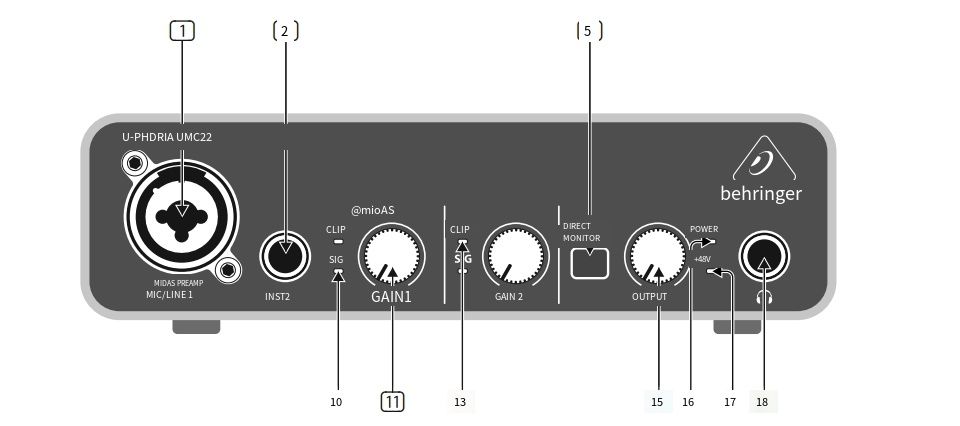

SK173 0 series Built in UMC202 sound card , the specific interface description is shown below

1. MIC/LINE1 interface. You can connect microphones, Musical Instruments, or line level sources to these ports.

2 INST2 : Can connect instruments and sound sources to this port

5 The DIRECT MONITOR selector activates direct listen to zero delay (no delay) input signals when enabled

10 The SIG indicator indicates the presence of an audio signal in the channel.

11 The INST GAIN 2 knob adjusts the input level at the INST 2 input.

15 The OUTPUT knob adjusts the OUTPUT level of the 1(L) & 2(R) OUTPUT

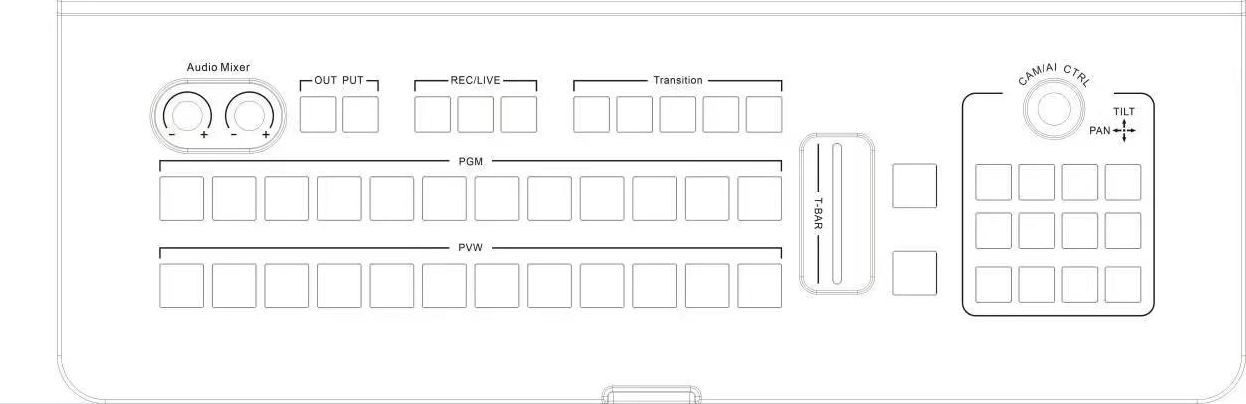

7 Switch table layout instructions

In terms of function,SK 173 0 series live portable production solution embedded vMix layoutguide switching console is one of the most popular and perfect construction applied to liveproduction at pr esent. All buttons on the broadcast switcher control panel ar e d ouble colorbacklight button design helps the operator to quickly identify important keys, which greatlyreduces the chance of switching control operation errors.SK173 0 series live portable production solution adopts professional midi controller , the specificfunctions are as follows

Complete machine parameters



Name	Description
All-in-one design	Integrated portable integrated design upturn structure
Alloy structure chassis	Alloy reinforced chassis, resistance to pressure, shock, electricity, humidity and heat environment
Display screen	1 17.3-inch ultra-thin LCD display with 1920x1080 resolution and tempered glass film
Architecture	X86 architecture, non-embedded architecture
Processor	i7-8709G
Memory	DDR4 16G
Storage	SSD 1T
IO Port	1*HDMI2.0 output, 4*USB3.0, 1*USB Type-C, 1*SD Card, 1* headphone port, 1* microphone, 48-key switching panel, 4-dimensional PTZ pan-tilt, standard computer keyboard
Operating system	windows10 Professional legitimate activation
Network	Supports Gigabit network port
Power supply	DC 19V
Slot	1 PCIE*4 slot with 4-way HDMI HD / 4-way SD HD I or / 2-way HDMI+ 2-way SDI HD
Sound card	Built-in Larinda UMC22 sound card, phantom power switch indication function
Professional console	Includes inbuilt PC keyboard, inbuilt mouse touch pad, inbuilt radio and MIDI Controller switcher panel (including T-push rod, micro thumb control stick)
Controller switcher	Double color backlight button design, support 12 PGM/PVW keys, support output volume adjustment, with audio knob, embedded T-shaped push rod; Support PTZ
Video input	4 1080P60 HDMI input
Video output	1 HDMI output(Upto 2106P60), supports SRT/RTMP/NDI network output
Speakers	Stereo speakers
Weight	About 5kg
Work environment	Storage temperature -30 ° C to +70 °C Working temperature -20 ° C to +60 °C
