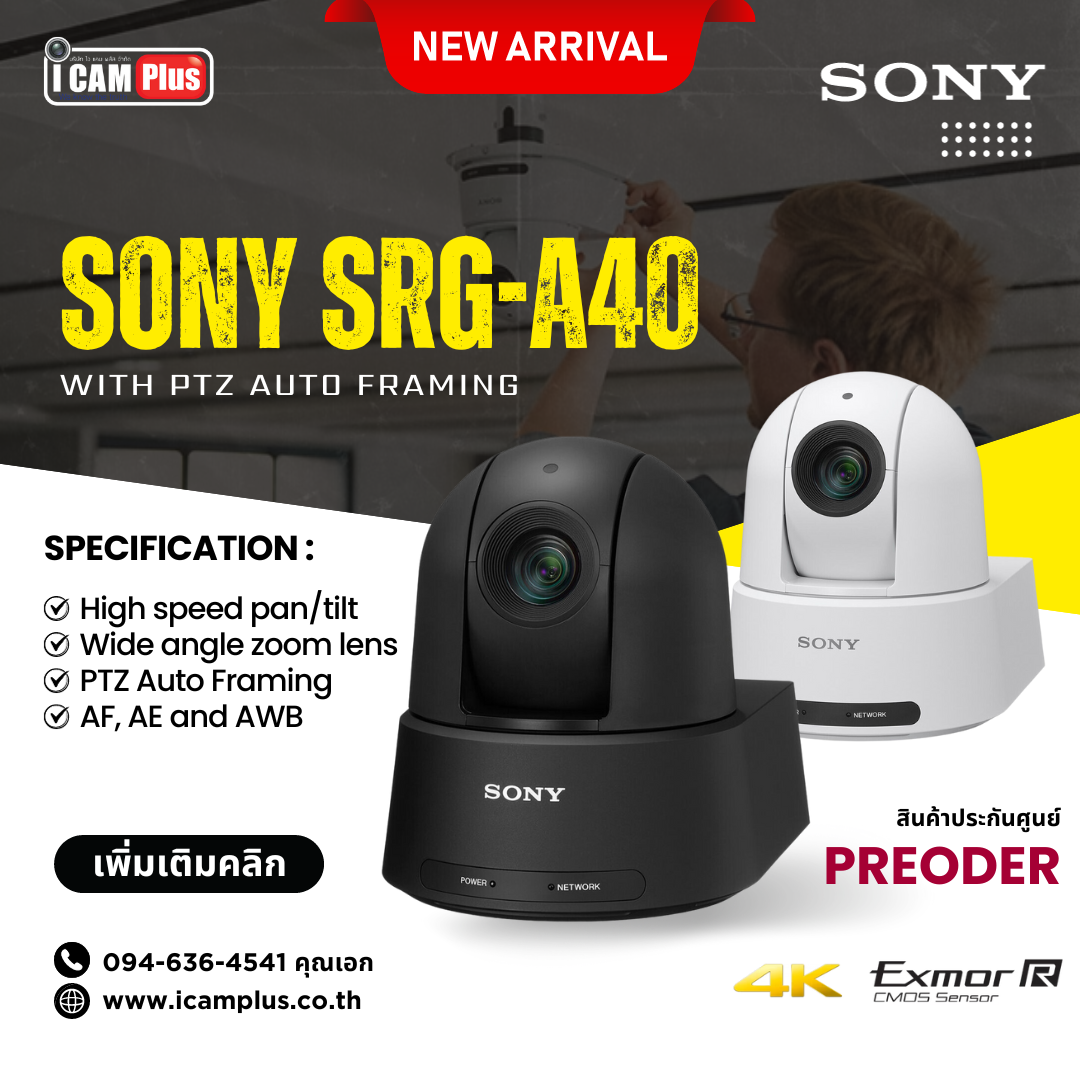

Sony SRG-A40 with PTZ Auto Framing

Sony SRG-A40 with PTZ Auto Framing
Sony SRG-A40 with PTZ Auto FramingSony SRG-A40 with PTZ Auto FramingSony SRG-A40 with PTZ Auto FramingSony SRG-A40 with PTZ Auto FramingSony SRG-A40 with PTZ Auto FramingSony SRG-A40 with PTZ Auto Framing
รหัสสินค้า SKU-02034
หมวดหมู่ SONY
ราคา 172,400.00 บาท
VAT7% สอบถามเพิ่มเติม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 29 พ.ย. 2566
อัพเดทล่าสุด 1 ธ.ค. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : กล้อง PTZ, 1080P/60FPS, Auto Focus, Optical Zoom สูงสุดที่ 30x, ptz camera, Sony

รายละเอียดสินค้า

Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
Shooting redefined. AI makes you free.

Specifications


Camera
Image Sensor
1/2.5 type ExmorR CMOS

Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels

Signal System
2160/29.97p, 25p, 23.98p
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p

4K capbility
Yes

Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)

Horizontal Resolution
1700 TV lines (Center)(4K),
1000 TV lines or higher (Center)(FHD)

Gain
Auto/Manual (0 to +48 dB)
High Sensitivity On

Shutter Speed
1/1 to 1/10000 sec(59.94 Hz system)
1/1 to 1/10000 sec(23.98 Hz system)
1/1 to 1/10000 sec(50Hz system)

Exposure Control
Auto/Manual/Priority AE (Shutter, Iris)

White Balance
Auto1/Auto2/One Push
WB/Indoor/Outdoor/Manual

Zoom Capability
30x (4K with CIZ*), 40x (HD with CIZ), Max. 80x (HD with CIZ and Tele Convert Mode)
*CIZ = Clear Image Zoom

Focusing System
Auto/Manual

Horizontal Viewing Angle
Approx. 70.0 degree(Wide)

Focal Length
f=4.4mm(Wide) to 88.0mm(Tele)

F-number
F2.0 to F3.8

Minimum Object Distance
80 mm(Wide)~
800 mm(Tele)

Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-20°

Pan/Tilt Speed (Max.)
Pan: 300 degrees/sec,
Tilt: 126 degrees/sec

Pan/Tilt Speed
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s

Pan/Tilt Speed（Slow)
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s

Pan/Tilt Slow Mode
Yes

Pan/Tilt Operation Noise
NC30 or less (*4)
(*4) Sony measurement conditions

Preset Position
256 (CGI)
100 (VISCA)

Picture Freeze Preset
Yes

PTZ Motion Sync
Yes

Network
IP Video resolution
3840x2160,1920x1080,1280 x720,640x360

Compression Format
H.264: High/Main/Baseline Profile
H.265: Main Profile

Maximum Frame Rate
H.264: 60fps
H.265: 60fps

Bitrate Compression Mode
CBR/VBR (selectable)

Range of Bitrate Setting
512Kbps~50 Mbps

Multi Streaming Capability
3

Maximum Number of Clients
5

Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT

NDI|HX capability
Yes Option
(need to attach a license)

Camera Features
Auto ICR (Auto mode of IR Cut filter Removal)
Yes

Day/Night
Yes

Visibility Enhancer
Yes

Image Stabilizer
Yes

Image Flip
Yes

Picture Setting File
Yes

Flicker Cancel
On/Off

Hide OSD Menu
On/Off

Standby Mode
Yes

Remote Standby
Yes

PTZ Auto Framing
Yes

Web UI
Ver Up
Yes

Languages
Japanese, English, French, Spanish, German, Italian, Chinese, TraditionalChinese, Korean, Portuguese, Russian, Polish, Hindi, Turkish

OS and Browser
Windows 11 64-bit w/ Chrome,
Windows 10 64-bit w/ Chrome,
Windows 11 64-bit w/ Edge,
Windows 10 64-bit w/ Edge,
macOS 11 w/ Chrome,
macOS 12 w/ Chrome

Audio
Channel
2ch

Audio Codec
AAC LC 128kbps/ST (IP)
AAC LC 256kbps/ST (IP)

Setting Option
Auto level control: On/Off,
Equalizer: Off/Low cut/Voice enhancement,
Input selection: Microphone/Line,
Mic volume: -10~+10 (21 steps),
Audio codec

Embedded Audio in Baseband Video
Yes (3G-SDI, HDMI)

Embedded Audio in IP Streaming
Yes

Interface
4K Video Output
HDMI x1,
IP (streaming) x1

HD Video Output
3G-SDI x1,
HDMI x1,
IP (streaming) x1

SD Video Output
IP (streaming) x1

Remote Video Format Switching
Yes

HDMI Color Space
YCbCr, 4:2:2 8bit
RGB, 4:4:4 8bit

Camera Control Interface
VISCA RS-422 RJ45(In/Out)
VISCA over IP RJ45

IR Remote Control
Yes

Microphone Input
Stereo Mini-phone(φ3.5mm) x1,
(Mic/Line Selectabe)

Sync. System
INT

Tally
Front x 1
Red/Green (for PTZ Auto Framing)

Power Connector Type
IEC60130-10
(JEITA standard RC-5320A)
Type5

General
Power Requirements
DC 19.5V
PoE++(IEEE802.3bt type4 class8)

Power Consumption
DC19.5V : 80W
PoE++ : 71.3W

Operating Temperature
0 °C to 40 °C
32 °F to 104 °F

Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F

Dimensions (W x H x D)*3
156.7 x 184.0 x 200.0mm
6 1/4 ｘ 7 1/4 ｘ 7 7/8 inch
*3:The values for dimensions are approximate

Mass
Approx. 2.0 kg
Approx. 4 lb 6.5 oz

Body Color
White /Black

Size of Screw Hole for Tripod
1/4-20UNC x1

Mountable Angle
< ±15°

Ceiling Mount
Yes
