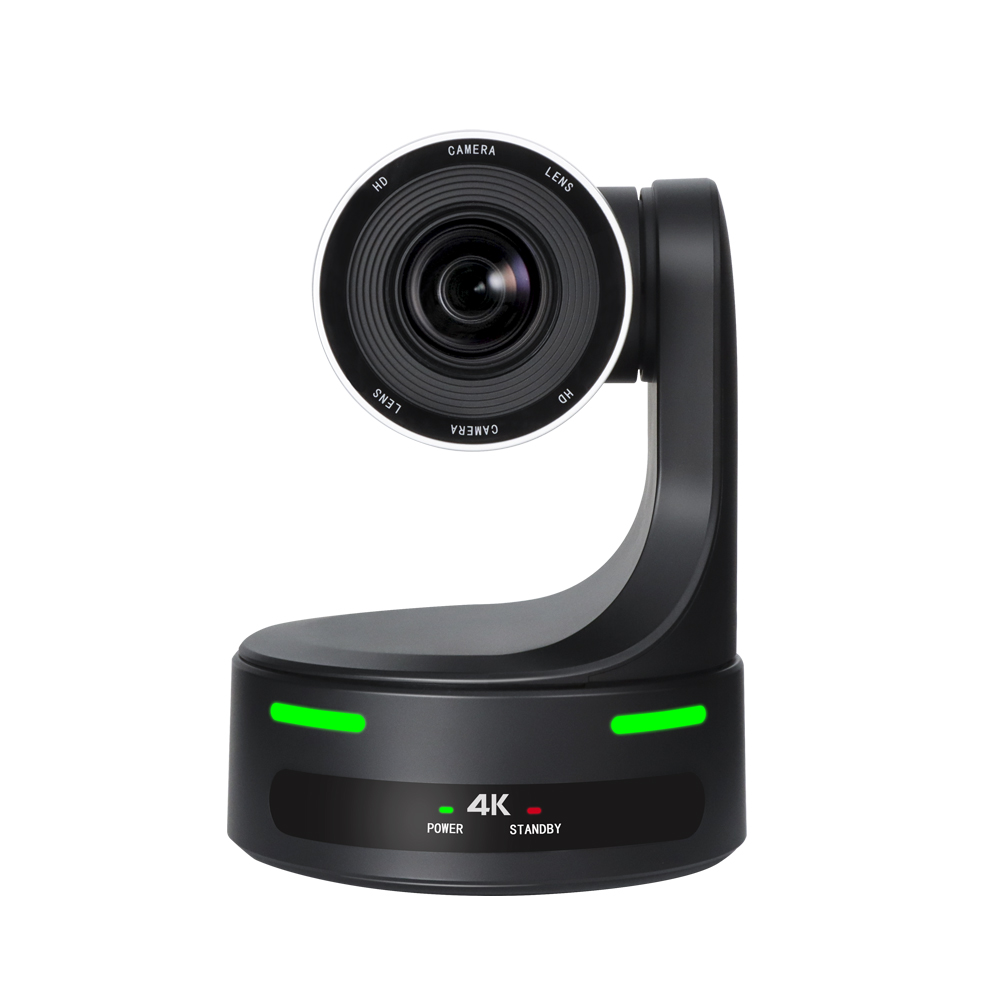

KATO KT-UH86DHN 4K video conference camera
รายละเอียดสินค้า
KATO KT-UH86DHN 4K video conference camera
Features
1080P HD Resolution:
HD86A: Apply SONY 1/2.8” Progressive CMOS sensor, 2.07 Megapixels, can reach max.1920×1080 high resolution with frame rate up to 60fps.
HD86R: Apply SONY 1/2.8” Progressive CMOS sensor, 2.07 Megapixels, can reach max.1920×1080 high resolution with frame rate up to 60fps.

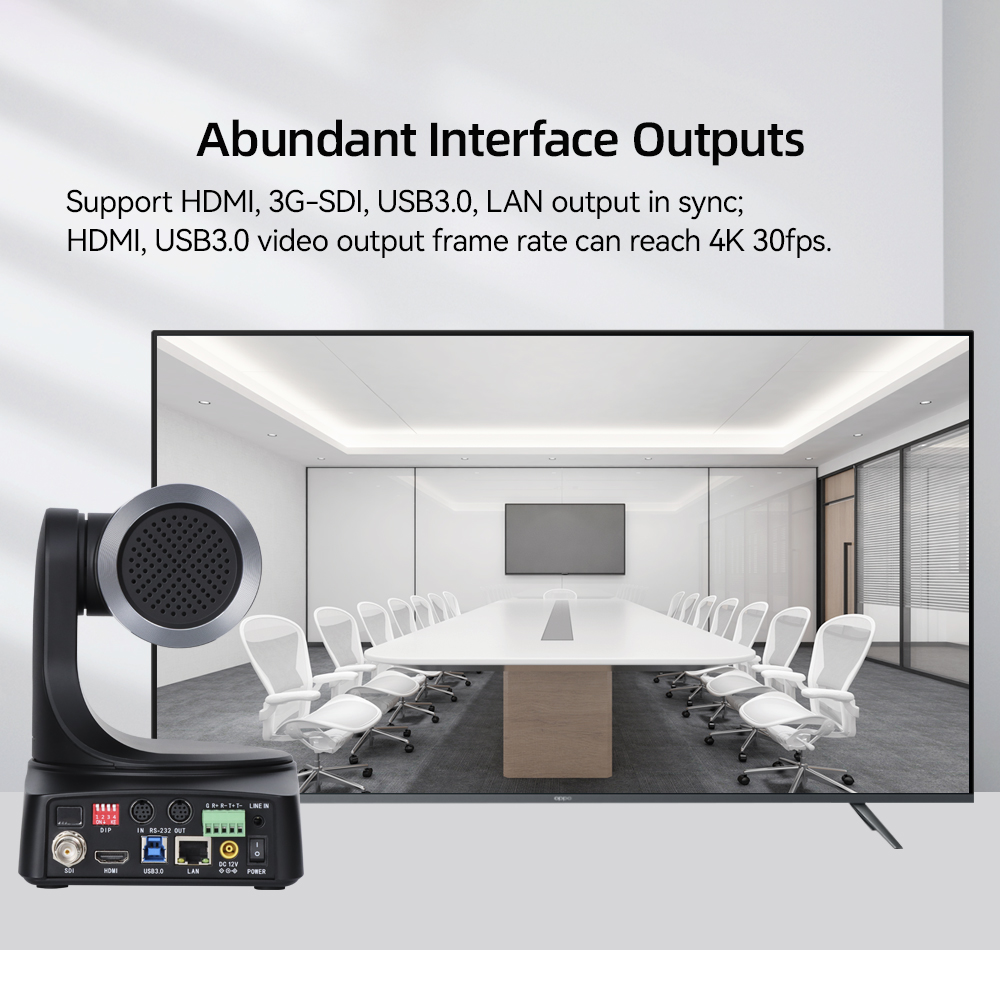

Abundant Outputs:

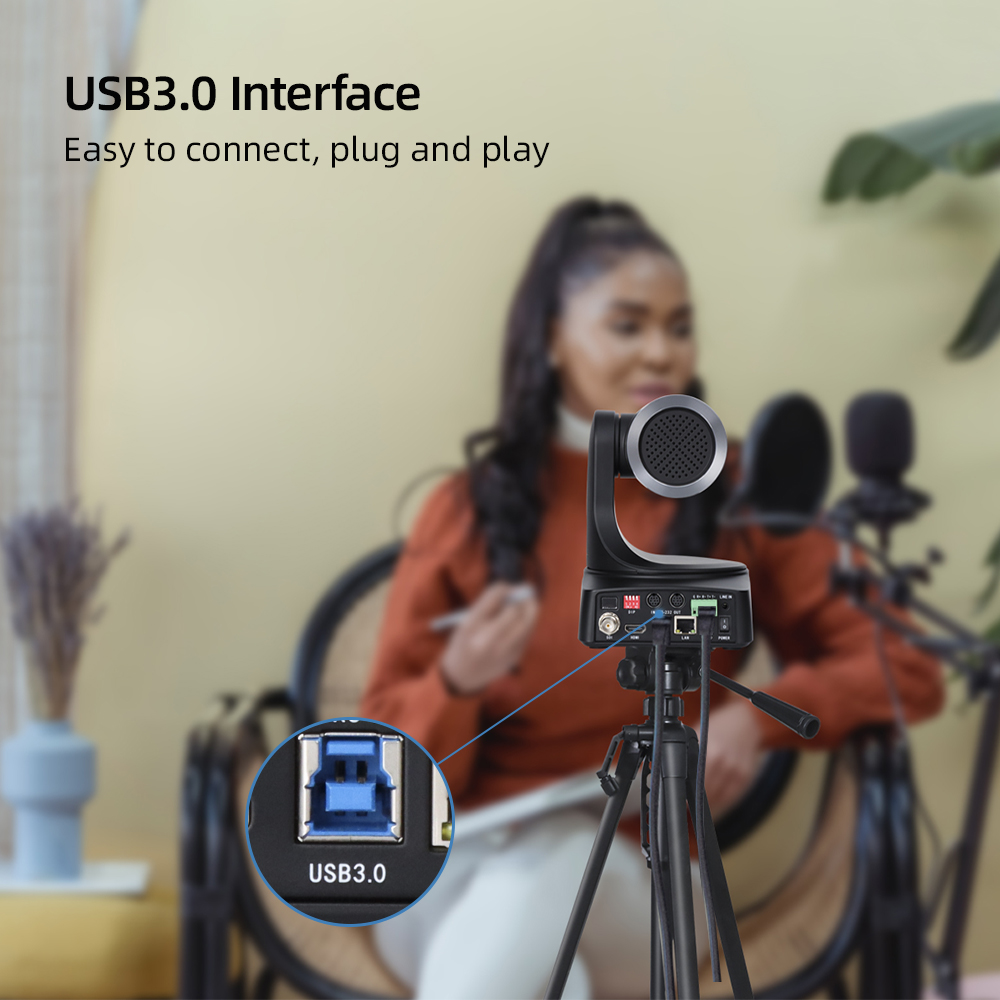

Support HDMI, 3G-SDI, LAN, USB3.0 HD 1080P output in sync.
Ultra High Frame Rate:
video output frame rate can reach 1080P 60fps.

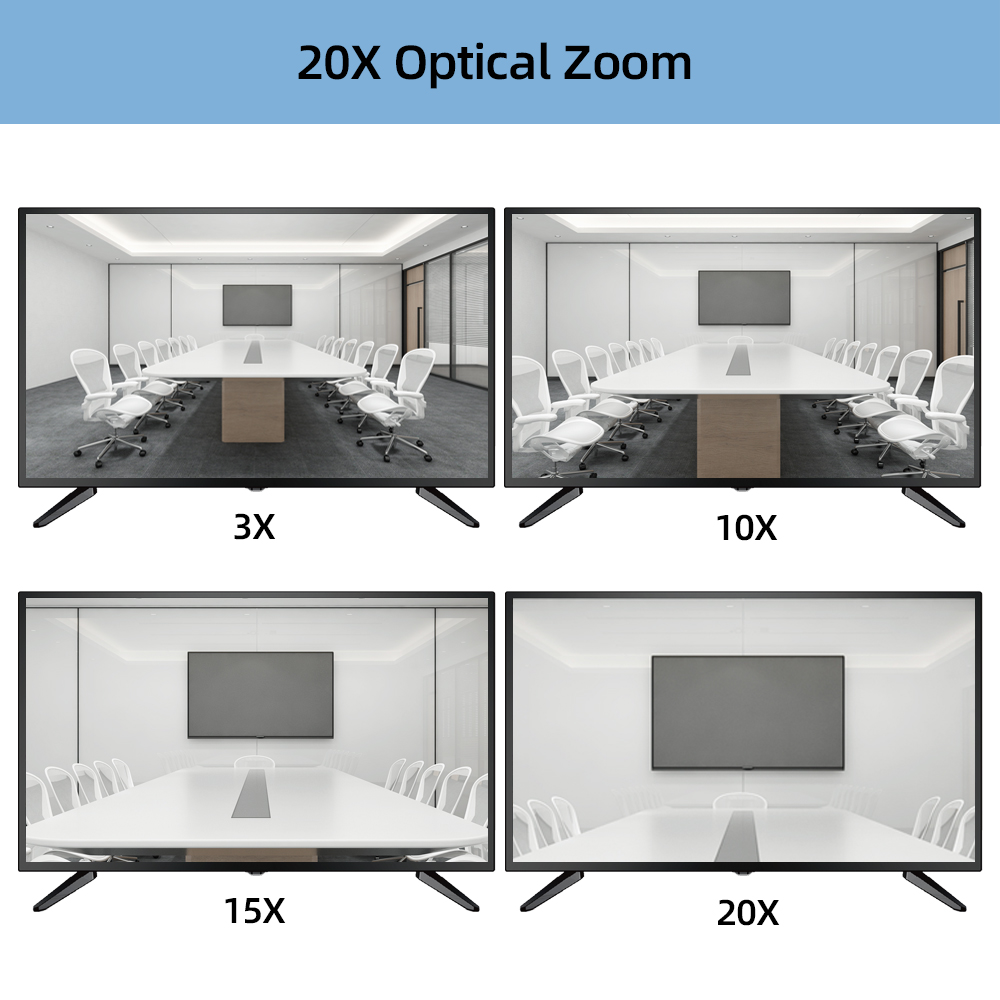

Optical zoom can choose:
HD86A: 20x optical zoom+16x digital zoom
HD86R: 12x optical zoom+16x digital zoom
Low Light:
Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applying 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 55dB.

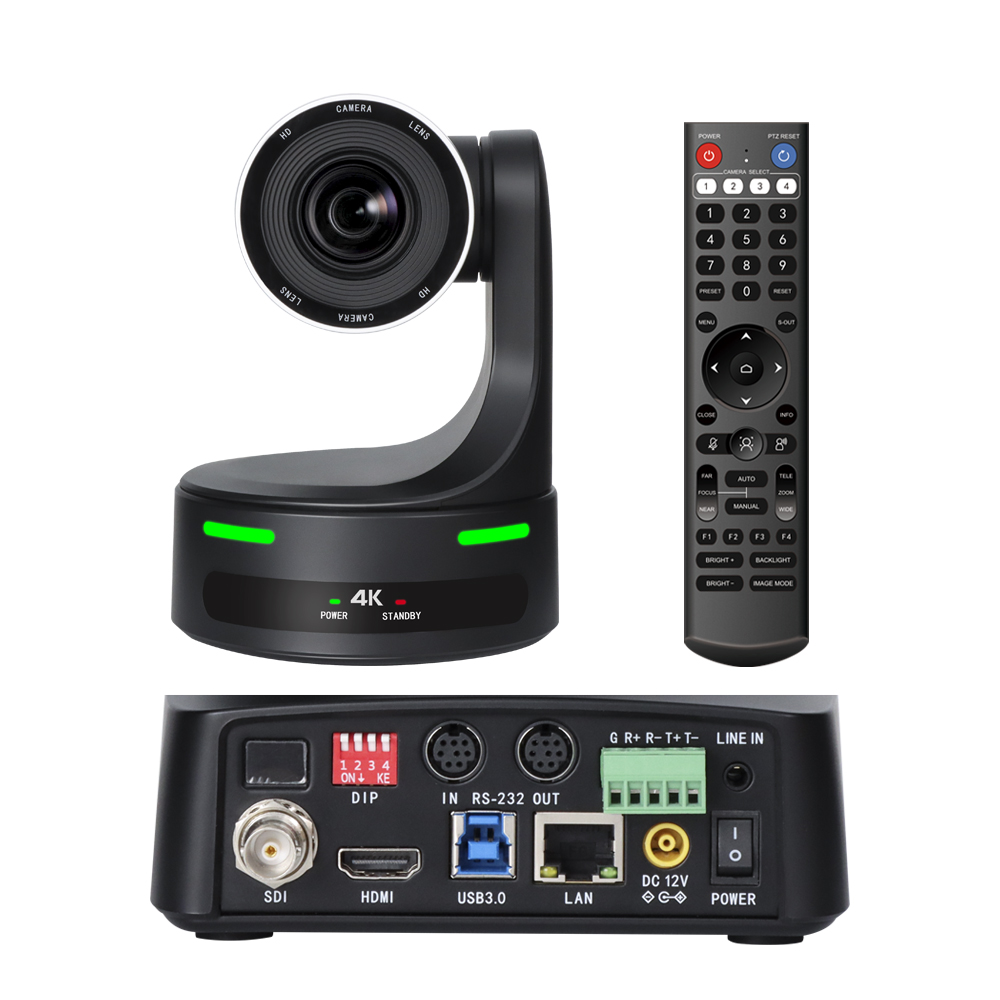

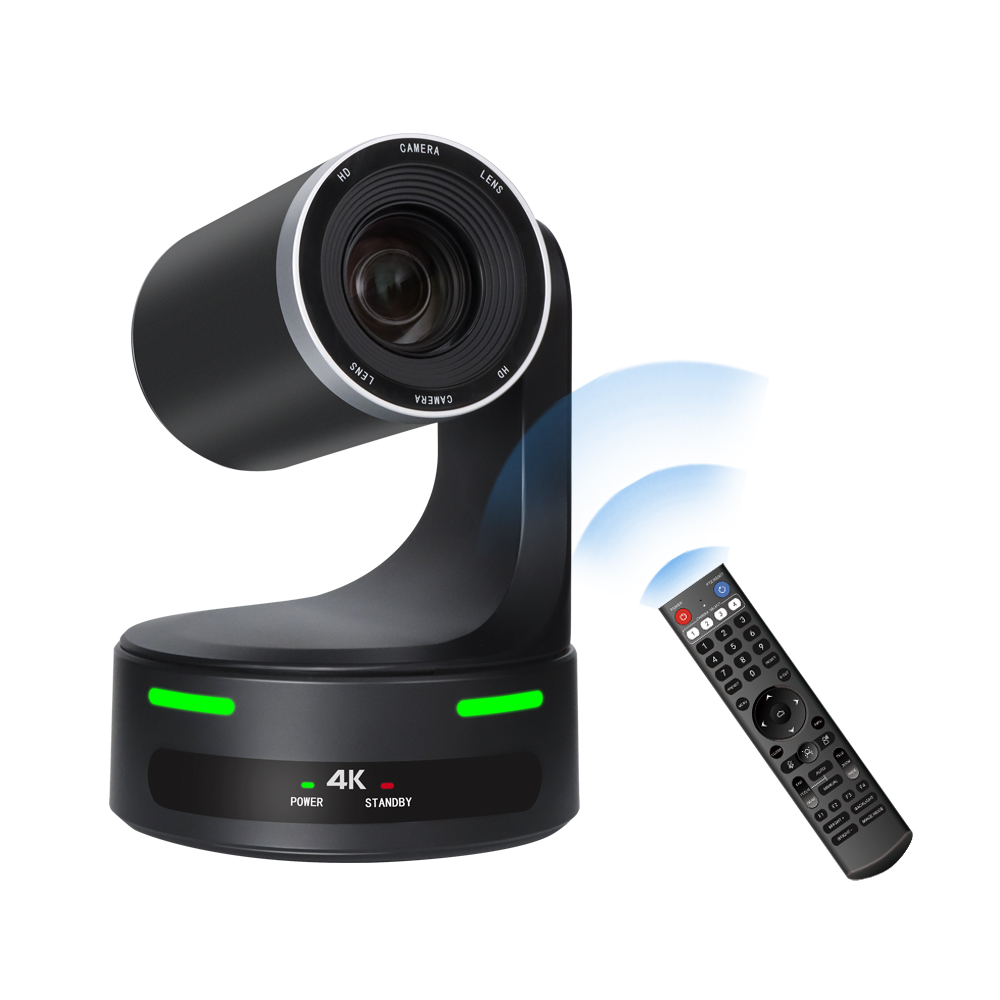

Remote Control:

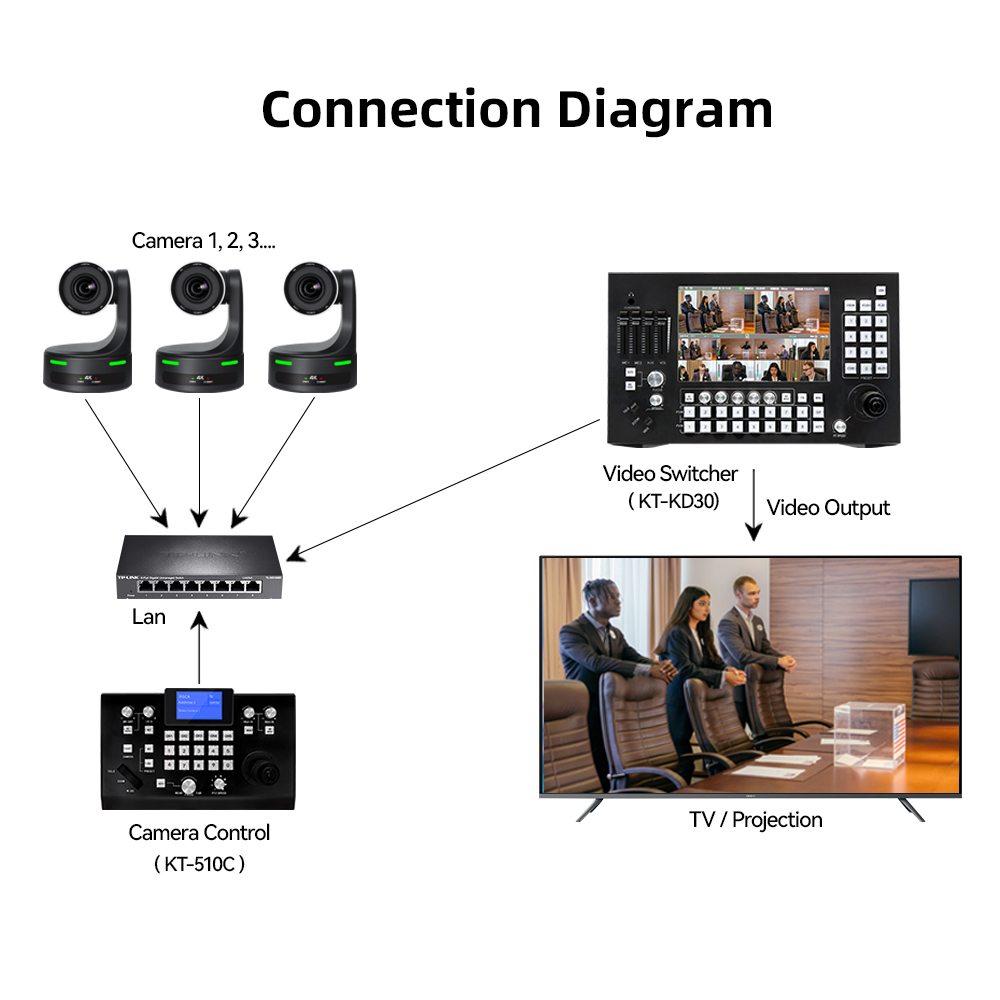

Use RS232, RS422/RS485 serial ports to control multiple cameras with daisy chain.
Signal transparent transmission function of infrared remote controller:
Apart from receiving its own infrared remote controller’s signals, it can also receive signals of the consumer’s infrared remote controller and send to video conference terminal via VISCA IN port.

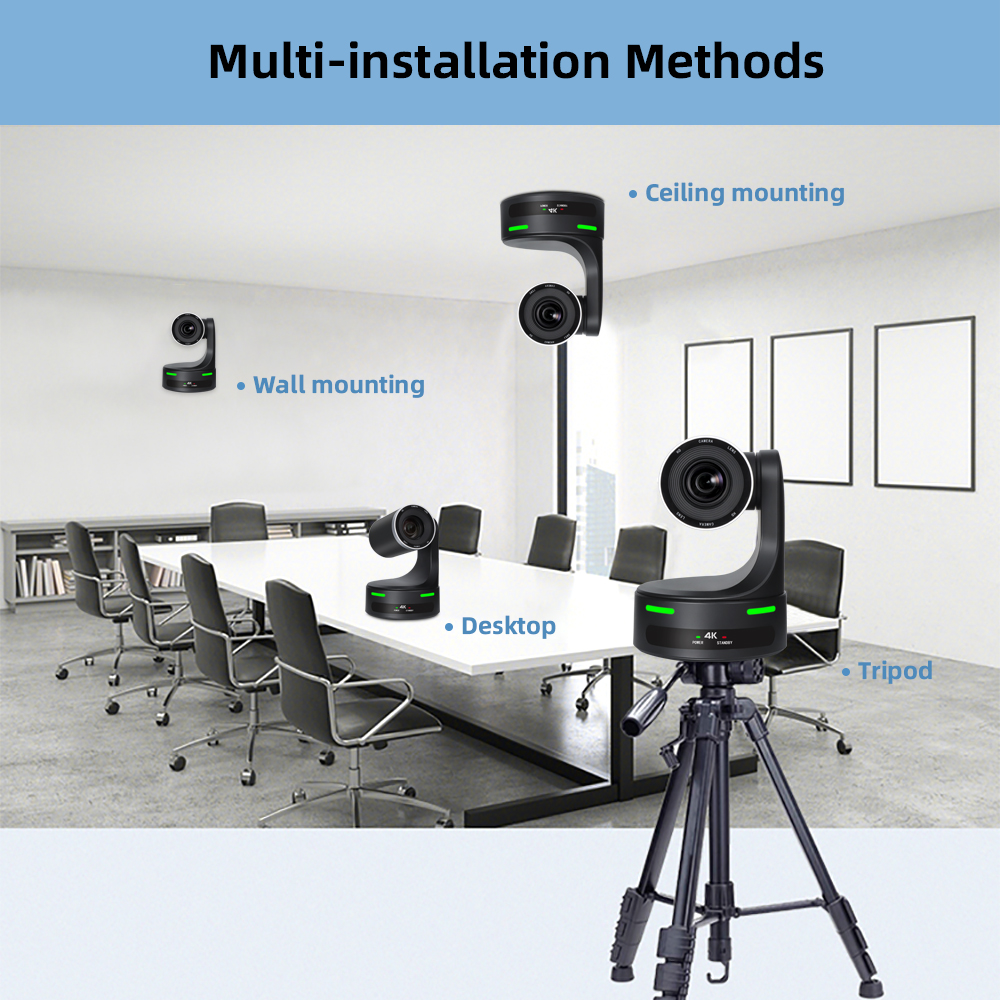

Multi-installation Methods:
Wall mounting, desktop or ceiling mounting.
Specifications
| Camera | |
| Lens | UH86RK:12X optical zoom, f=3.9mm(w)~46.8mm(f)
UH86DH:20X optical zoom, f=5.2mm(w)~104mm(f) |
| Image Sensor | SONY Progressive 4K CMOS |
| Effective Pixels | 8.50 Megapixels |
| Digital Zoom | 16X digital zoom |
| Scan Mode | Line by line |
| Horizontal View Angle | UH86RK: 72.5°(W)～6.5°(T)
UH86DH: 58.7°(W)～3.2°(T) |
| Iris | F1.6～F2.8 |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter Speed | 1/25s~1/10000s |
| Focus System | Auto/Manual |
| S/N Ratio | ≥55dB |
| Exposure | Auto, Manual, Iris Priority, Shutter Priority |
| White Balance | Auto, Indoor, Outdoor |
| Backlight
Compensation |
Support |
| Digital Noise
Reduction |
2D&3D Digital noise reduction |
| Wide Dynamic Range | Support |
| Special Effect | Normal, black and white |
| Image Freeze | Support |
| Mirror | Support |
| Electronic Flip | Support |
| Automatic Upright/Flip Recognition | Support |
| Audio and video interface | |
| Digital Output | HDMI1.4
HDMI color mode: RGB, YCbCr422, YCbCr444 Video Resolution: 3840*2160p30/25, 1920*1080p60/59.94/50/30/29.97/25, 1280*720p60/50 3G-SDI: 1920*1080 p60/59.94/50/30/29.97/25, i60/50/59.94 1280*720 p60/50 |
| LAN | Supports Multiple Code Streams;
Encoding Format: H.264, H.265, MJPEG Profile: Main, High, Baseline(H.264) Streaming Protocol: RTMP, RTSP, ONVIF, SRT, NDI|HX2(Optional) Main Code Stream Resolution:1080 p30/25/20/15/10 Auxiliary Code Stream Resolution:480, 360, 288, 240, 144（p30/25/20/15/10） MJPEG Resolution:1080, 720 |
| USB | Protocol: UVC1.1, UAC1.0
Operating System: Window7 and above, MacOS10.10 and above, Ubuntu16.04 and above or systems compatible with V4L2-driven UVC Video Coding Format: YUY2, MJPEG MJPEG: 320×180, 320×240, 352*288, 480*272, 640×480, 720×576, 800×600, 1280×720, 1920×1080, 2560×1440, 3840×2160 YUY2: 320×180, 320×240, 352*288, 480*272, 640×480, 720×576, 800×600, 1280×720, 1920×1080 UVC Video Frame Rate: Max.60 UAC Audio Coding Format: PCM |
| Audio In | Unbalanced analog input (Line In) 3.5mm
Sampling rate: 44.1K, 48K Encoding format: AAC |
| Pan/Tilt | |
| Pan Range | 355°(max.speed:80°/s) |
| Tilt Range | -30°~+90° |
| Pan Speed | 0.1°/S~90°/S |
| Tilt Speed | 0.1°/S~90°/S |
| Pan Positioning Accuracy | 0.1°±10% |
| Tilt Positioning Accuracy | 0.1°±10% |
| Preset Speed | 7 Levels |
| Preset Position Numbers | 255 |
| Control | |
| Control Mode | IP, RS-232（RJ45）, RS-422/485 In（RJ45）, IR Remote, 2.4G Wireless(Optional) |
| Network Control Protocol | ONVIF, VISCA Over IP, NDI|HX2(Optional) |
| Serial Control Protocol | VISCA, Pelco D, Pelco P |
| Power Supply | |
| Input Voltage | DC 12V IEC60130-10（JEITA Standard RC-5320A）TYPE4 |
| Input Current | Max.1.0A |
| POE | 802.3af(Optional) |
| Power Consumption | Max.12W |
| Others | |
| Tally | Support serial port VISCA protocol trigger and NDI protocol connection trigger |
| Operational Environment | Indoor |
| Operational Temperature | -10-40℃ |
| Storage Temperature | -20-60℃ |
| Camera Dimensions | (L)161×(W)133.6×(H)181mm |
| Color | Black |
| Weight | 1200g |

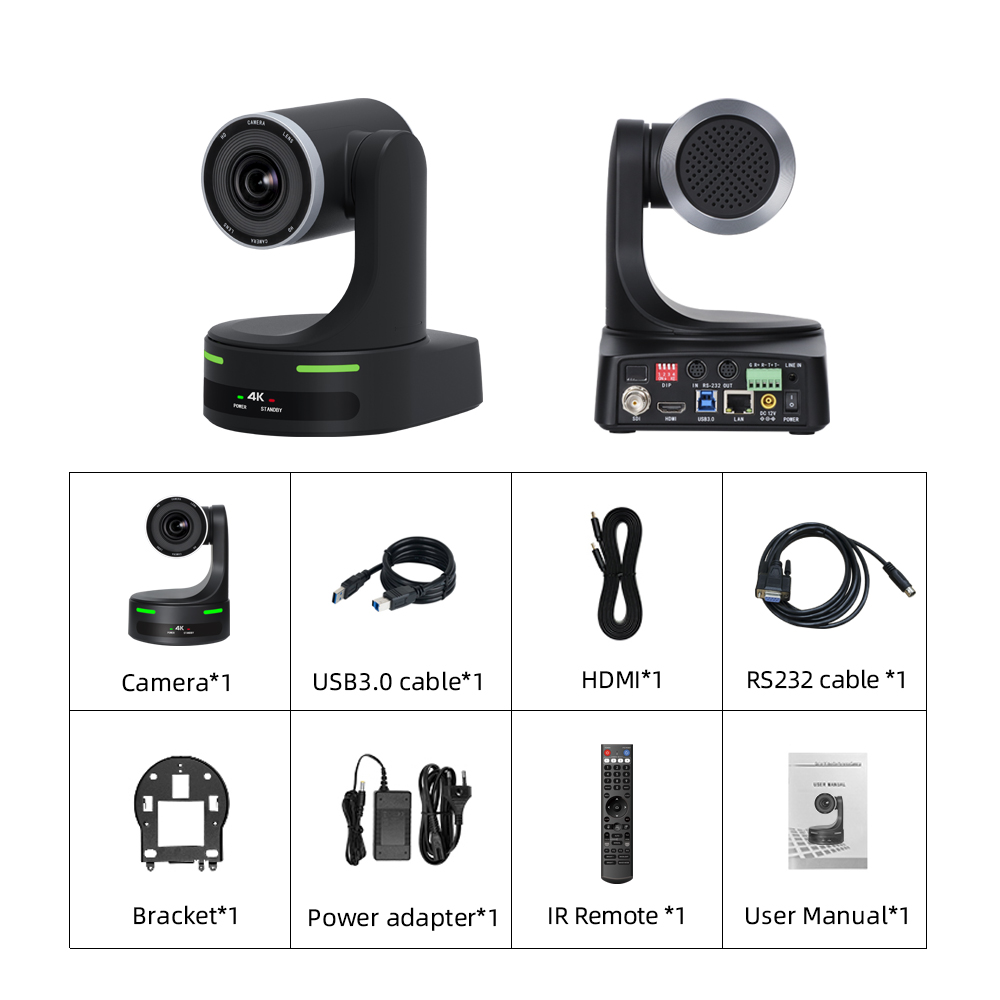

| Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI Cable, USB Cable, Ceiling bracket (Wall bracket optional) |
