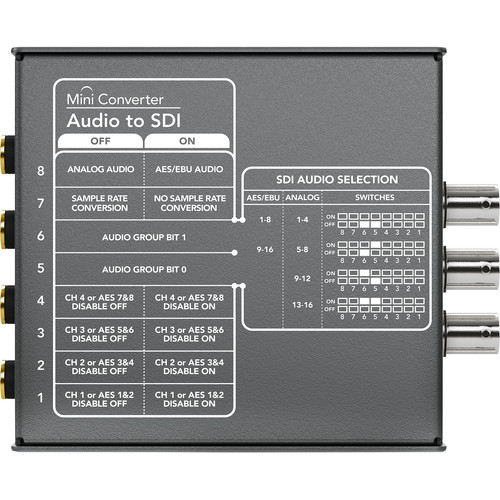

Blackmagic Design Mini Converter Audio to SDI

PRODUCT HIGHLIGHTS

• Embed Audio into up to 1080p SDI Signals
• Four 1/4″ Audio Input Jacks
• Supports 4 Channels of Analog Audio
• Supports 8 Channels of AES/EBU Audio
• Redundant SDI Backup Input

• SDI Input	1 x SDI on BNC (switchable between 3G/HD/SD) 1 x 3G/HD/SD SDI redundant input (automatically switches over if main SDI input is lost)
  Audio Input	4 x 1/4″ jacks support 4 channels of balanced analog audio or 8 channels of balanced AES/EBU digital audio
  SDI Output	1 x SDI on BNC (switchable between 3G/HD/SD)
  SDI Auto Switching	Auto-detection of 3G/2K/HD/SD SDI SDI
  Updates and Configuration	Via USB 2.0 high speed (480 Mbps)
  Reclocking	Yes
  SDI Compliance	SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‐B, SMPTE 425M, ITU‐R BT.656, ITU-R BT.601
  SDI Video Rates	SDI video connections are switchable between HD and SD
  SDI Video Sampling	4:2:2, 4:4:4
  SDI Audio Sampling	Television standard sample rate of 48 kHz and 24 bit
  SDI Color Precision	4:2:2, 4:4:4
  SDI Color Space	YUV, RGB
  SDI Auto Switching	Automatically selects between 3G/HD/SD
  SDI Format Support	1080p/i at 60/59.94/50 1080p at 30/29.97/25/24/23.98 1080PsF30/29.97/25/24/23.98 720p60/59.94/50 525i59.94 NTSC 625i50 PAL
  2K Format Support	2K DCI 25p/24p/23.98p 2K DCI 25PsF/24PsF/23.98PsF
  Software Control	Mac OS X and Windows software upgrade via USB
  Internal Software Upgrade	Via included updater application
  Operating System	Mac OS X 10.11 El Capitan, macOS Sierra or later Windows 8.1 or Windows 10
  Settings Control	Mini Switches or USB software
  Power Supply	+12 V universal power supply included with international socket adapters for all countries. Cable tie point.
  Power Consumption	8.4 W
  Operational Voltage Range	12 VDC
  Operating Temperature	32 to 104°F (0 to 40°C)
  Storage Temperature	-4 to 113°F (-20 to 45°C)
  Relative Humidity	0 to 90% non-condensing
  Dimensions	4.5 x 3.6 x 0.9″ (11.5 x 9.2 x 2.3 cm)
  Weight	7.6 oz (215 g)
