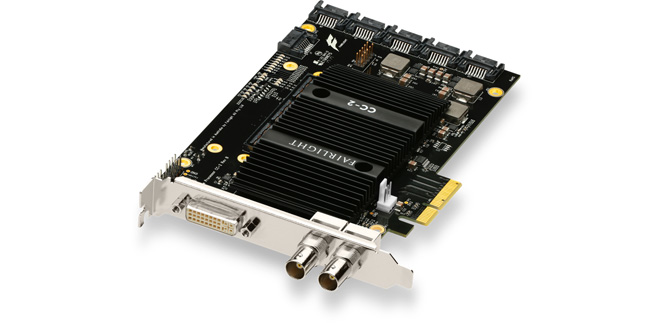

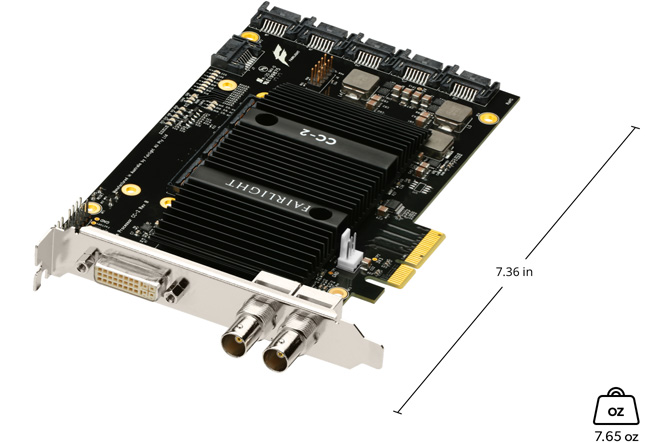

Fairlight Audio Accelerator

1 x MADI input via 75 ohm BNC

1 x MADI output via 75 ohm BNC

Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2 and 3.

Supports Fairlight Audio Interface via multi‑pin connector on shield.

Single half length PCIe x4 board

44.1, 48, 96 and 192 KHz with minimum 32 bit floating point processing.

Verified using Mac Pro 7,1 with Intel CPU.

Track count organized from mono to 26.0.

2000 Mono Audio Tracks at 48kHz.

1000 Mono Audio Tracks at 96kHz.

500 Mono Audio Tracks at 192kHz.

256 Busses plus 512 Bus elements at 48kHz.

256 Busses plus 256 Bus elements at 96kHz.

256 Busses plus 128 Bus elements at 192kHz.

128 at 48kHz.

64 at 96kHz.

32 at 192kHz.

When used with Core Audio plus Fairlight Accelerator.

256 at 48kHz.

128 at 96kHz.

64 at 192kHz.

Elastic wave time warping and sample rate conversion.

Six band EQ.

Expander/gate, compressor and limiter.

Up to six Resolve, VST or AU plugins.

Direct out.

Four band clip based EQ.

Up to six Resolve, VST or AU clip based plugins.

Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D channel formats.

In place solo.

Up to 16 VCA groups.

Up to 512 mono bus elements, organized in any format from mono to 26.0.

Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D bus formats.

Up to 10 bus sends per channel and bus with independent level control.

Up to 10 post fader bus sends per channel and bus.

Automatic and flexible delay compensation.

Four band EQ.

Compressor and limiter.

Up to six Resolve, VST or AU pre fader plugins.

Direct out.

Up to six Resolve, VST or AU plug-ins on any channel or bus.

Tactile control of plug-ins from the Fairlight audio editor.

Plug-ins are fully controllable with automation.

Up to four simultaneous sources.

Source from internal buses or external inputs.

Up to 16 different speaker sets.

Customizable fold up and fold down when crossing formats.

Optional B-Chain processor for cinematic setups with up to 64 speakers.

14W

0° to 40°C (32° to 104°F)

-20° to 60°C (-4° to 140°F)

0% to 90% non-condensing
