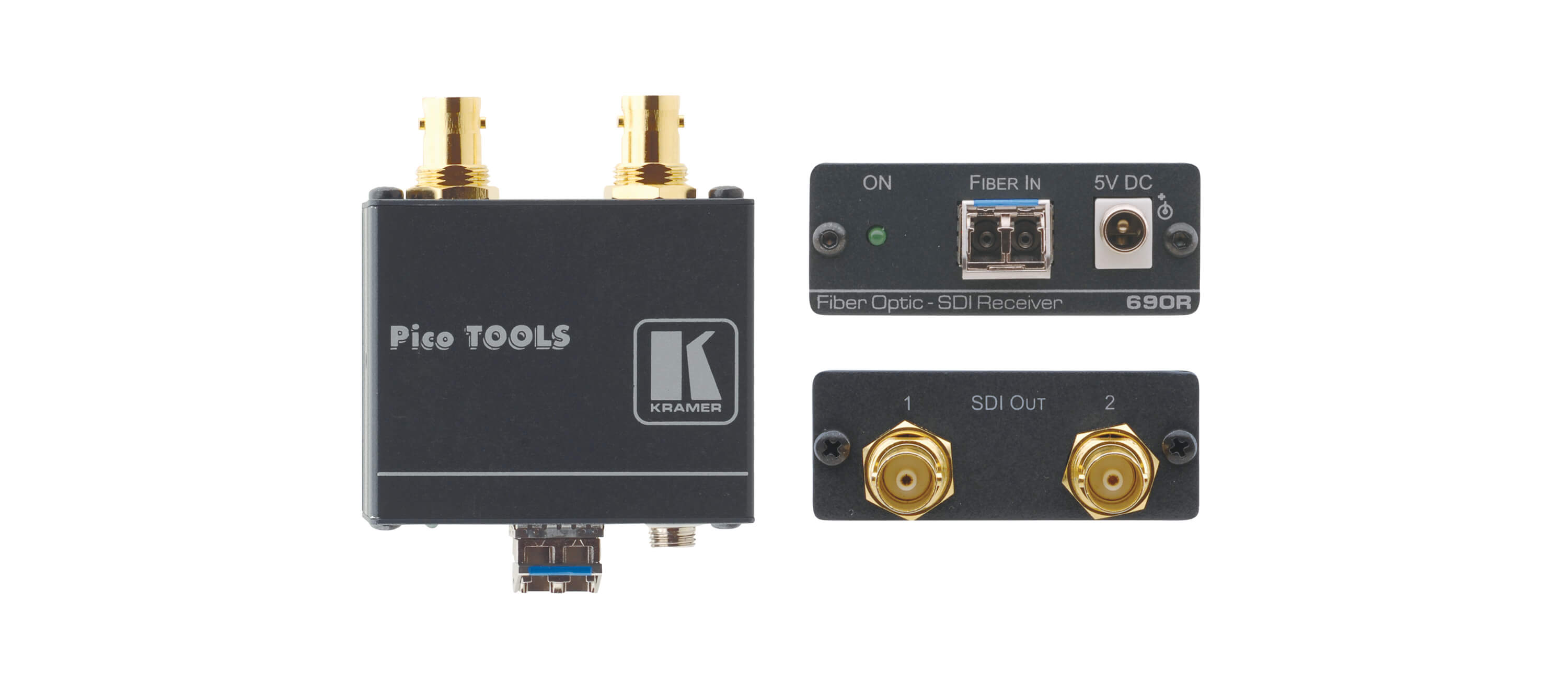

690R2x3G SDI Receiver over Ultra–Reach SM Fiber
Range >6.2 miles (10km)

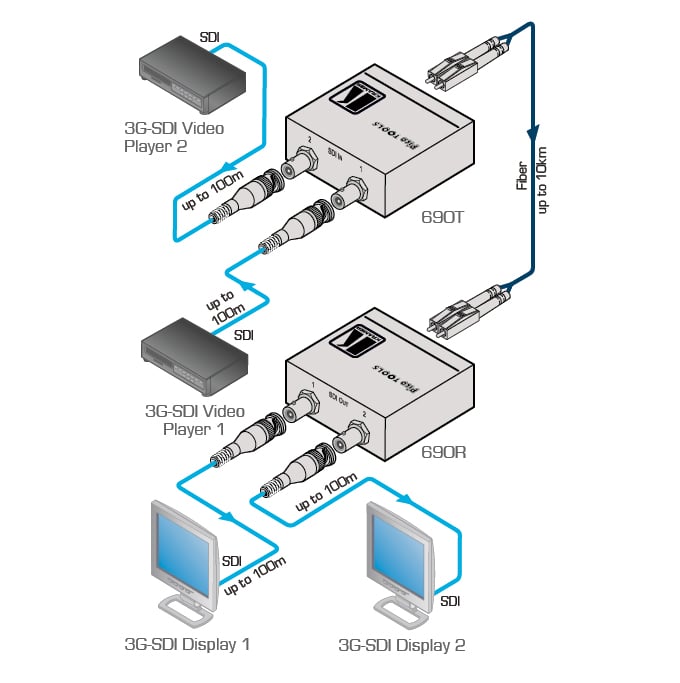

  • The 690R is a high−performance fiber optic receiver for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS−88FO.

    •  Max. Data Rate — 3Gbps.
    •  Inputs — 2 single–mode fiber optic on LC connectors.
    •  Outputs — 2 SDI on BNC connectors.
    •  HDTV Compatible.
    •  Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
    •  Laser Standards Compliance — IEC 60825–1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
    •  Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD–SDI) & 100m (3G HD–SDI).
    •  System Range — Up to 10km (6.2mi).
    Register New Project

    Applications

    •  Home theater, presentation and multimedia applications.
    •  Long range multimedia distribution for cinemas, stores, and entertainment centers.
    •  Video production and broadcast facilities.
    •  Retail stores and other point–of–sale systems.
    •  Digital signage.
    •


INPUTS

OUTPUTS

BANDWIDTH

FIBER OPTIC EXTENSION

INPUT CABLE EQUALIZATION

POWER CONSUMPTION

OPERATING TEMPERATURE

STORAGE TEMPERATURE

HUMIDITY

INCLUDED ACCESSORIES

Product Dimensions

Product Weight

Shipping Dimensions

Shipping Weight
