kramerav : FC-22 ETH2–port Serial Control Gateway

kramerav : FC-22 ETH2–port Serial Control Gateway
kramerav : FC-22 ETH2–port Serial Control Gatewaykramerav : FC-22 ETH2–port Serial Control Gateway
รหัสสินค้า SKU-02286
หมวดหมู่ kramer
ราคา 20,700.00 บาท
VAT7% ติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 18 ส.ค. 2567
อัพเดทล่าสุด 18 ส.ค. 2567
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

รายละเอียดสินค้า

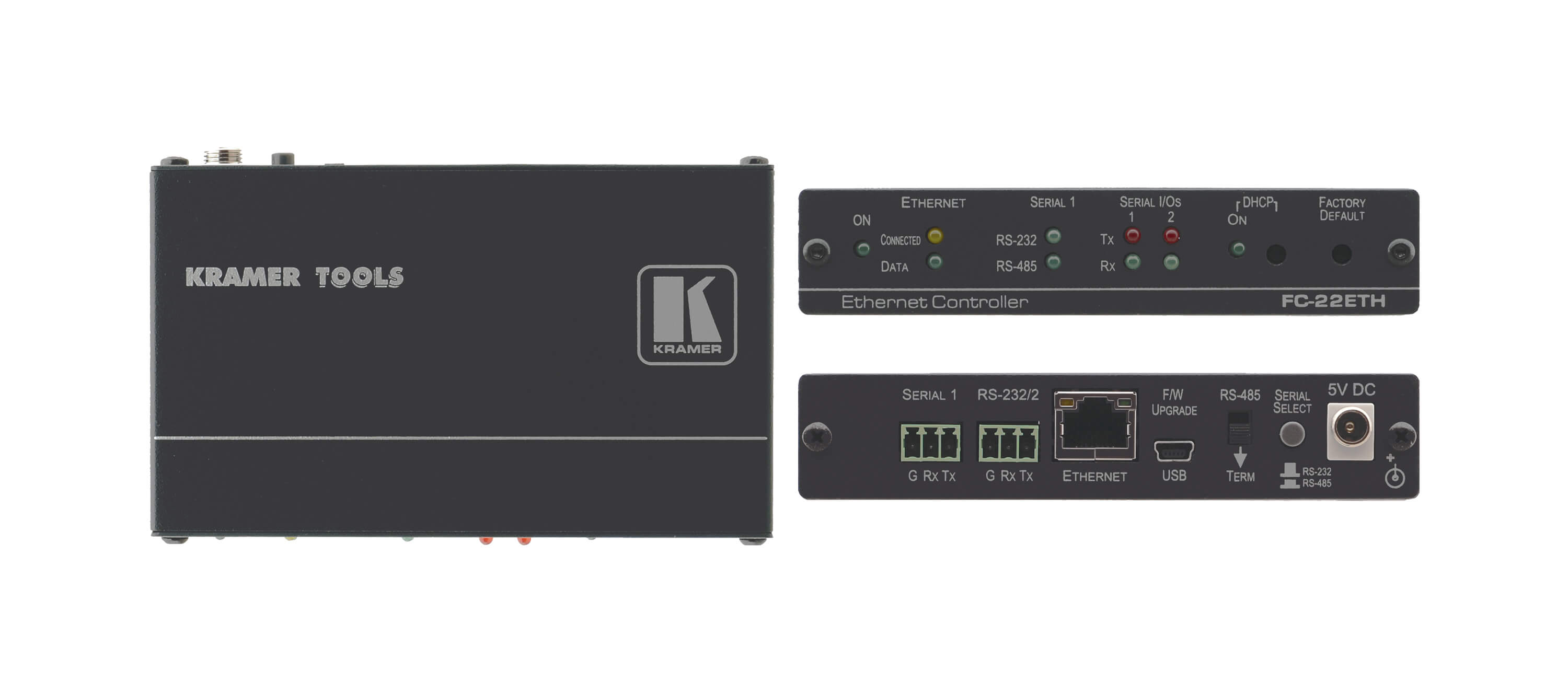

FC-22ETH2–port Serial Control Gateway
1 Bidirectional RS–485 or RS–232 port
1 Bidirectional RS–232 port
1 Ethernet port
Built–in control and support Web pages
Supported by: Kramer Control, K–Touch and K–Config
Managed by Kramer Network

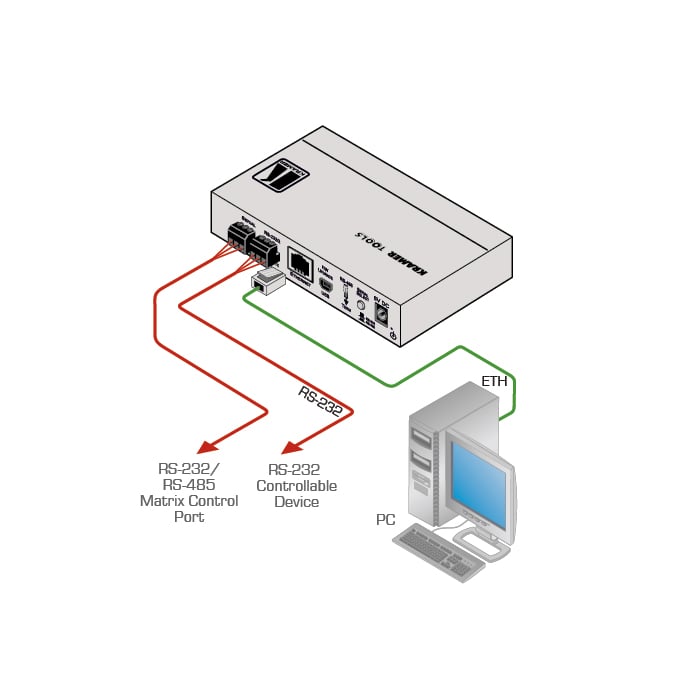

    • The FC−22ETH is an Ethernet control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−22ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.

      •  1 RS–485 or RS–232 Selectable Bidirectional Control Port — Controls a device via bi–directional serial control protocols.
      •  1 RS–232 Bidirectional Control Port — Controls a device via bidirectional RS–232 serial control protocols.
      •  1 Ethernet Control Port — Remote protocol–based control port.
      •  Built–in Web Pages — Remote browser–based control and support.
      •  Simultaneous IP Control Communication — With up to 40 IP control clients.
      •  Mini USB Port — For firmware upgrades and local technical services.
      •  Easy Installation — Plug & play IP auto–setup deployment for simple and cost–reducing installation.
      Register New Project

      Applications

      •  Remote IP control of serial controlled devices
      •  K–Touch multi–clients IP room control
      •  LAN–based expansion of K–Config control system


PORTS

SUPPORTED SERIAL PORT BAUD RATES

RS-232 COMMUNICATION

MAXIMUM DATA HANDLING OF DEVICE

CONTROLS

INDICATORS

POWER CONSUMPTION

OPERATING TEMPERATURE

STORAGE TEMPERATURE

HUMIDITY

COOLING

ENCLOSURE TYPE

INCLUDED ACCESSORIES

VIBRATION

SAFETY REGULATORY COMPLIANCE

ENVIRONMENTAL REGULATORY COMPLIANCE

Product Dimensions

Product Weight

Shipping Dimensions

Shipping Weight
