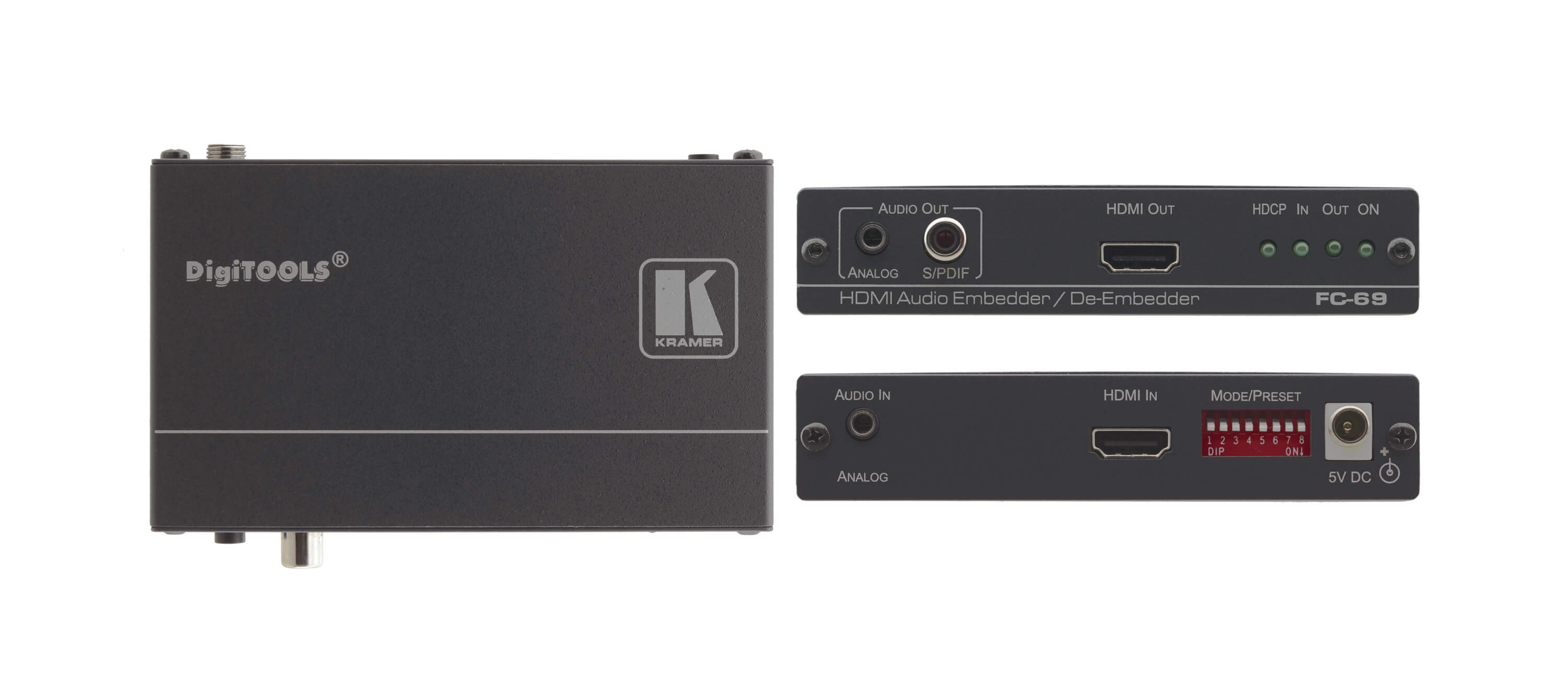

FC-694K60 4:2:0 HDMI Audio Embedder/De–Embedder
Max Data Rate — 8.91Gbps (2.97Gbps per data channel)
4K@60Hz (4:2:0) UHD, 4Kx2K support
Kramer Equalization & re–Klocking™ Technology

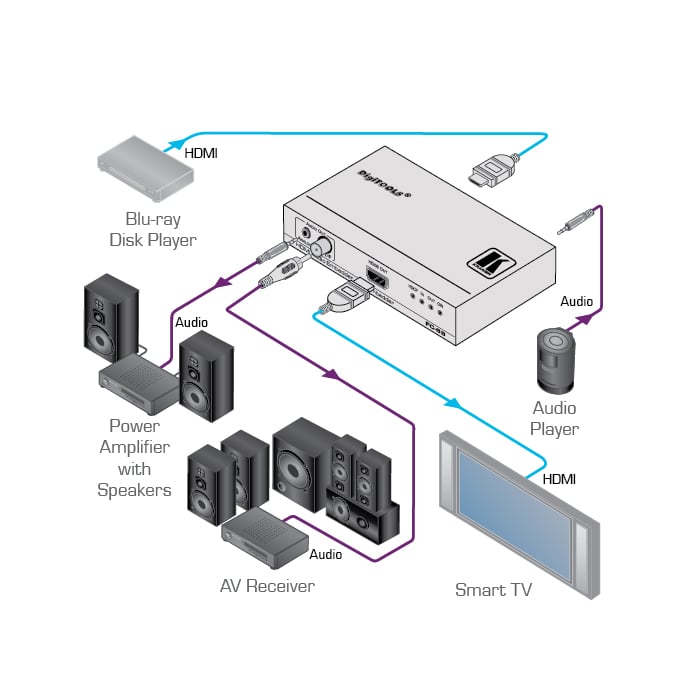

    • FC−69 is a high−performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de−embedder. The unit can embed analog audio to the HDMI output or de−embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.

      •  Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
      •  Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
      •  HDTV Compatible.
      •  HDCP Compliant.
      •  HDMI Support — ARC, 7.1 PCM, deep color.
      •  Audio Embedding — Even without an HDMI source.
      •  Audio de–Embedding — To unbalanced analog and S/PDIF, selectable from input or ARC.
      •  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
      •  Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent.
      •  Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.
      Register New Project

      Applications

      •  Home theater, presentation and multimedia applications
      •  Rental and staging
      •  Education and corporate

      The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.


INPUT

OUTPUTS

MAX DATA RATE

AUDIO THD+N

COMPLIANCE WITH HDMI STANDARD

CONTROLS

INDICATOR LEDS

POWER SOURCE

OPERATING TEMPERATURE

STORAGE TEMPERATURE

HUMIDITY

COOLING

ENCLOSURE TYPE

RACK MOUNT

FURNITURE MOUNT

VIBRATION

REGULATORY COMPLIANCE

ENVIRONMENTAL REGULATORY COMPLIANCE

INCLUDED ACCESSORIES

WARRANTY

Product Dimensions

Product Weight

Shipping Dimensions

Shipping Weight
