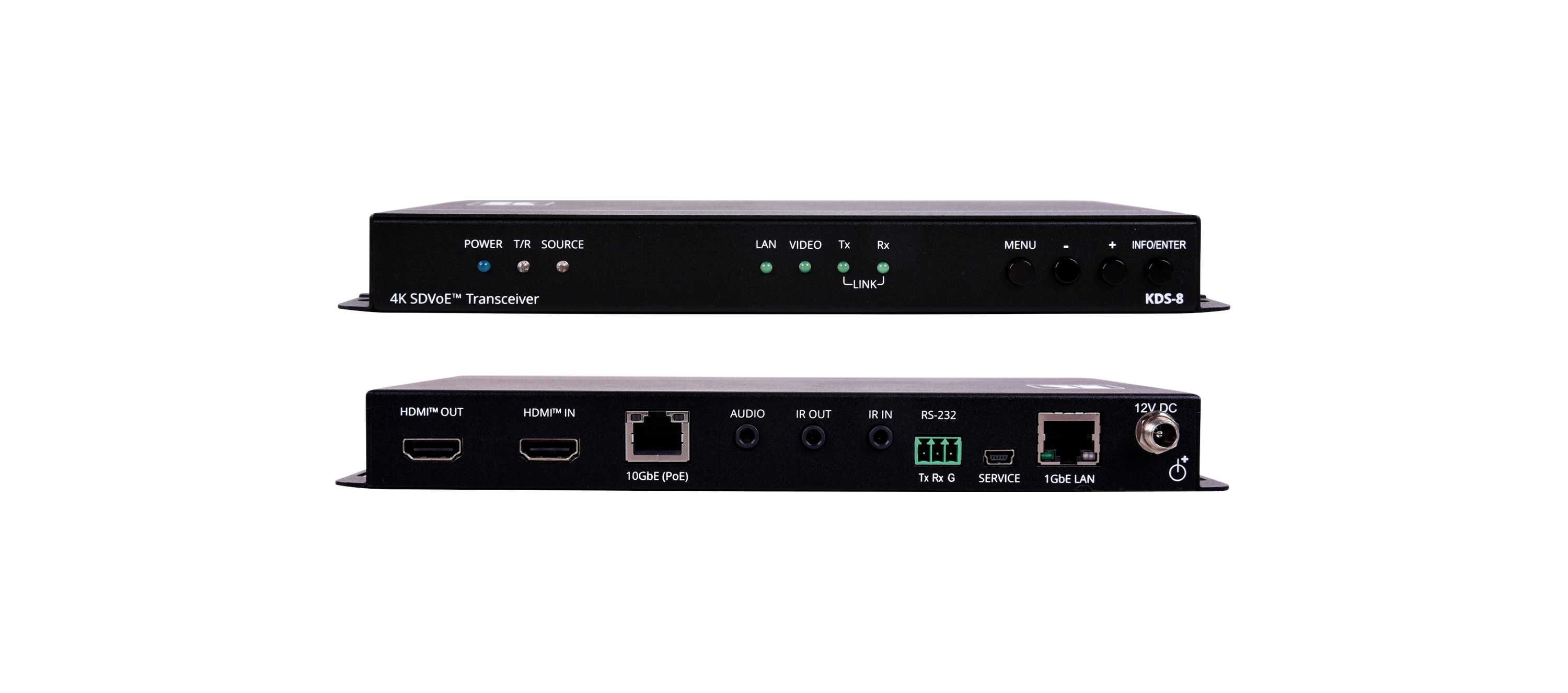

kramerav : KDS-8 Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Copper

KDS−8 is a high−performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over copper cable. KDS−8 can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI input along with IR, RS−232, and analog audio, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.

•  High–Performance Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression.
•  Maximum Compatibility — Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms.
•  Streamlined Management and Configuration — Kramer KDS–8–MNGR device (sold separately) provides a central point of management and enables creating multiple virtual matrices, video walls and multi–view configurations. In addition, KDS–8–MNGR supports preset configurations that can be activated using Kramer Control.
•  HDCP 2.2 Compliant, HDR Support, Genlock and Fastswitch Modes Support
•  High–Speed 10G Network Switch — Managed switch provides: multicast, jumbo frames, IGMP snooping and fast leave.
•  Analog Audio Embedding — Provides an unbalanced analog audio port for embedding audio into the streaming signal.
•  Bi–directional IR over IP — Control an IR device located on the decoder side from the encoder and vice versa.
•  Bi–directional RS–232 over IP — Control a serial device located on the decoder side from the encoder and vice versa.
•  Video Wall Support.
•  Multiview Support
•  Easy, Cost–Effective Maintenance — LED indicators for main power, Tx/Rx mode setting, HDMI video source detection, and Tx and Rx transmission enable easy local maintenance and troubleshooting.
•  Simple System Management — Remote system management support to enable quick and efficient remote system and device life–cycle management.
