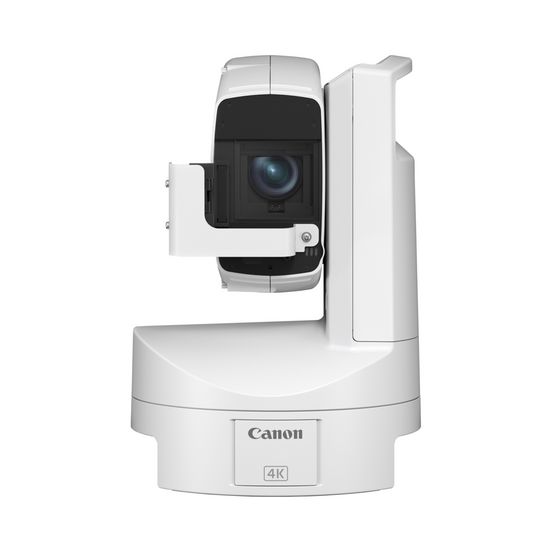

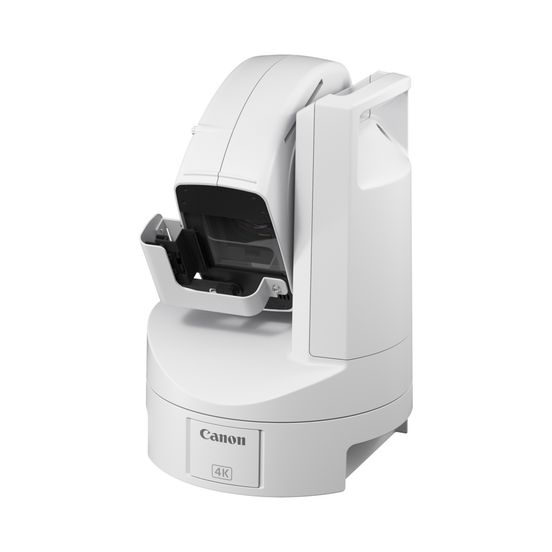

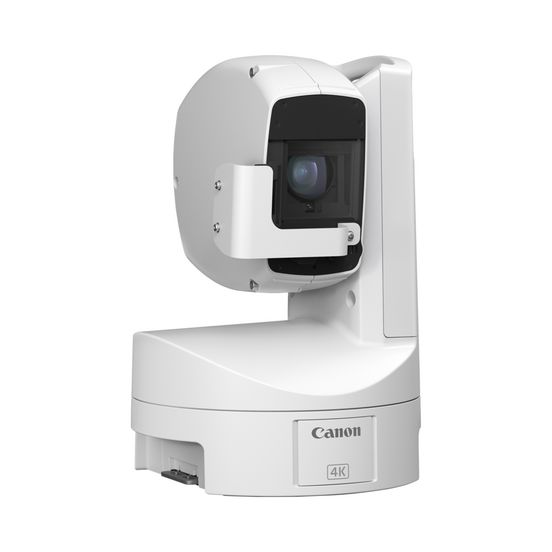

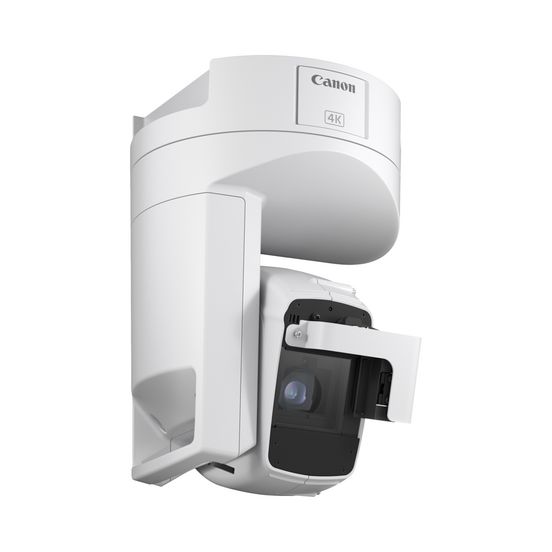

Canon CR-X300 PTZ Camera

CLOSE THE DISTANCE WITH UNRIVALLED CLARITY

Capture rich detailed 4K footage indoors or outdoors. With a 1/2.3-inch Type CMOS Sensor, 20x optical zoom plus IP control and streaming capabilities and Auto Loop function*, the CR-X300 can perform in all conditions, from -15° to +40°C thanks to an IP65 rated compact, weatherproof body.

*Auto Loop function available via paid licence

See full specification

4 / 6





Specifications in detail

Camera

• Image Sensor
  Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
• Effective Pixels
  approx. 8.29 megapixels (3840 x 2160)
• Lens
  f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
• Optical Zoom
  20x optical zoom
• Digital Zoom
  20x digital zoom
• Focal Length
  3.67 – 73.4 mm, f/1.8 – 2.8,
  35mm equivalent focal length:
  [4K UHD] approx. 29.3 (W) – 601 mm (T)
  [Full HD] approx. 30.5 (W) – 627 mm (T)
• Angle of View
  [4K UHD]
  Horizontal: 65.6° (W) – 3.6° (T)
  Vertical: 39.8° (W) – 2.0° (T)

  [Full HD]
  Horizontal: 63.5° (W) – 3.4° (T)
  Vertical: 38.4° (W) – 1.9° (T)
• Minimum Subject Illumination
  Approx. 3.0 lux (shutter speed 1/60 sec., frame frequency 59.94 Hz (P (Programmed AE) shooting mode), auto slow shutter off)
• Shutter Speed
  1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Iris
  Manual/Automatic aperture
• Gain
  0.0 dB – 36 dB
• ND Filter
  ND filter: 1/8 at maximum
  Enhanced ND range, 1/32 - 1/256
• Night Mode (IR Cut Filter Off)
  Yes, Electrically switchable
• White Balance
  AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*),
  colour temperature setting (2,000 K – 15,000 K), Manual

  * colour temperatures are given for reference purposes only.
• Focus
  Focus mode: Manual, Continuous AF, Face Detection AF, Tracking
  AF type: Hybrid AF, Contrast AF
• Minimum Focusing Distance
  1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) (from the front window)
• Gamma
  Normal1, Normal3

Pan and Tilt Operation

• Pan and Tilt Operation Range
  Horizontal ±180°
  Vertical -40° – +215°
• Pan and Tilt Operation Speed
  0.3° – 60°/sec.
• Control Protocol
  XC (Canon's original), NU (Canon's original), NDI|HX,
  Standard Communication (Serial), Standard Communication (IP)

Server

• Video Output Format: SDI
  3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
  1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
  1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)

  – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
  – When 3840 x 2160 is selected for SDI, video will not be outputted to HDMI.
• Video Output Format: HDMI
  3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
  1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
  1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)

  – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
  – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
• Video Output Format: IP
  [Frame frequency 59.94 Hz]
  1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)

  [Frame frequency 29.97 Hz]
  3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)

  [Frame frequency 50.00 Hz]
  1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)

  [Frame frequency 25.00 Hz]
  3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)

  [Frame frequency 23.98 Hz]
  3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)

  – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
  Resolution: 1280 x 720
  When frame frequency is 59.94/29.97 Hz: 14.99 fps,
  When frame frequency is 50.00/25.00 Hz: 12.50 fps,
  When frame frequency is 23.98 Hz: 11.99 fps
• Video Output Format: USB
  No
• Video Transmission Protocol
  XC (Canon’s Original), RTSP/RTP, NDI|HX, RTMP/RTMPS, SRT, FreeD.
• Preset
  Number of presets: Max. 100 (including home position)

Interface

• Communication Control
  LAN, Serial
• Network Terminal
  LAN x 1, RJ45, 1000Base-T
• SDI OUT Terminal
  6G-SDI BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced
  SMPTE 2081, 424, 425, ST 299-2 compliant
  Embedded audio, Time code (VITC/LTC)
• GEN-LOCK Terminal
  BNC jack x 1, 1.0 Vp-p/75 Ω, input only
• HDMI OUT Terminal
  HDMI connector x 1, output only
• RS-422 Terminal
  RJ45 connector x 1
• INPUT 1/INPUT 2 Terminals
  No
• MIC Terminal
  No
• USB Terminal
  No
• External Device I/O Terminal
  AUX connector x 1

Physical Features

• Operating Environment
  [Temperature/Humidity Resistance]
  Temperature
  Operating Temperature Range
  -15°C – +40°C (+5°F – +104°F)
  Start-up Temperature Range
  -10°C – +40°C (+14°F – +104°F)

  Humidity
  90% or less (without condensation)

  [Survival Wind Speed]
  15 m/sec.: Normal operation
  30 m/sec.: Operation possible
  60 m/sec.: Non destruction
• Power Supply
  PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
  – PoE and PoE+ cannot be used
  External power source: 12 V DC (Use the included power cable with DC plug)
• Power Consumption
  PoE++ Input: Approx. 39.8 W* max. (body only)
  DC Input: Approx. 37.7 W max. (body only)
• Dimensions (W x H x D)
  Approx. 217 x 311 x 217 mm (8.54 x 12.24 x 8.54 in.) (excluding protrusions)
• Weight
  Approx. 7.0 kg (15.5 lb.) (body only)
• IP Rating
  IP65
• Wiper
  Equipped
• Noise
  NC45 or lower (when operating at 60°/sec.)
