Teradek : Bolt 6 XT 12G-SDI/HDMI Wireless Transmitter and Receiver Kit. The Full 4K Solution Zero-delay wireless video with 6GHz connectivity, plus cross-
compatibility with the Bolt 4K Series. 12G-SDI + HDMI for DCI 4K
resolution in 10-bit 4:2:2 HDR; wireless camera control, and more.

Teradek : Bolt 6 XT 12G-SDI/HDMI Wireless Transmitter and Receiver Kit


Zero-delay wireless video with 6GHz connectivity, plus cross-
compatibility with the Bolt 4K Series. 12G-SDI + HDMI for DCI 4K
resolution in 10-bit 4:2:2 HDR; wireless camera control, and more.

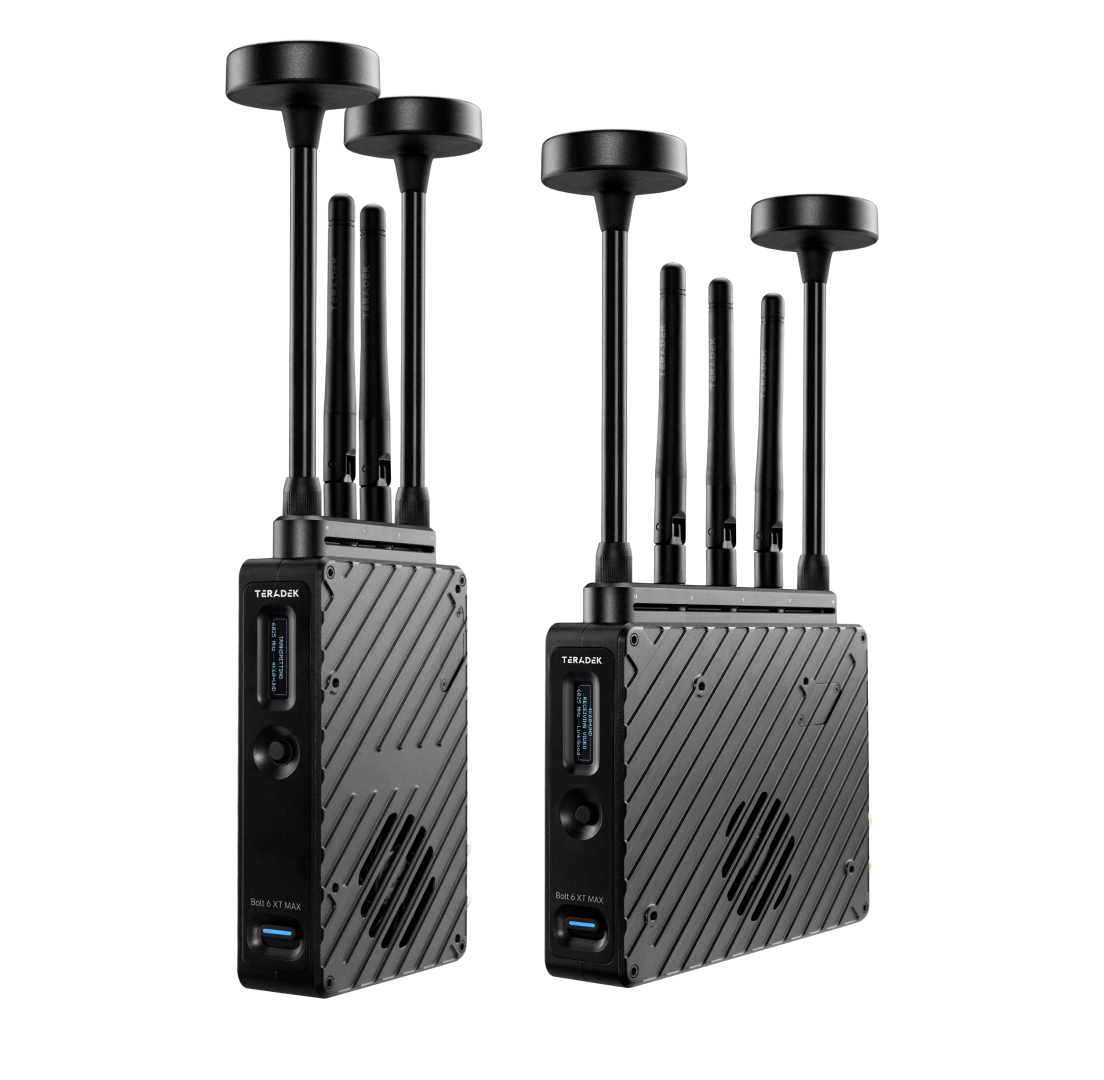

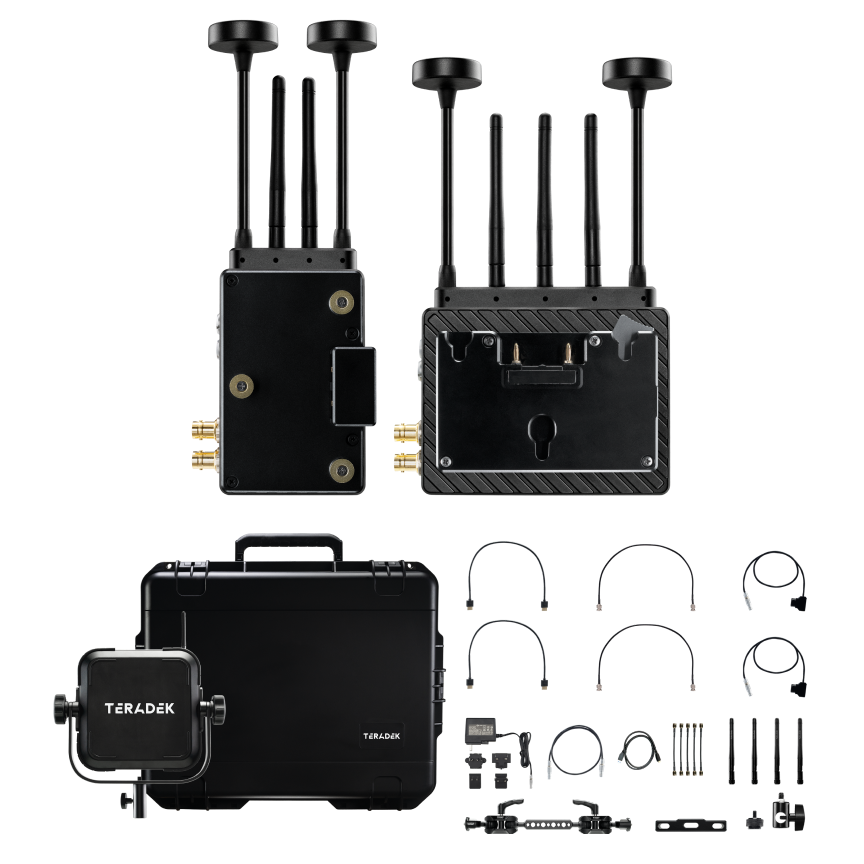

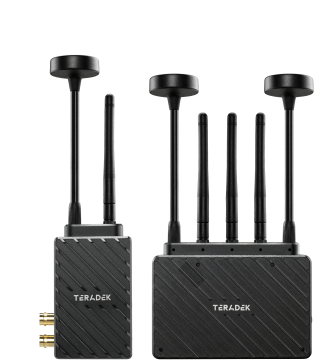

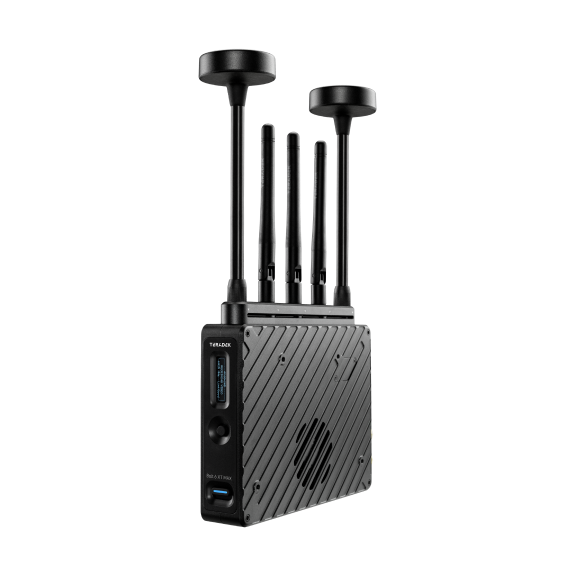

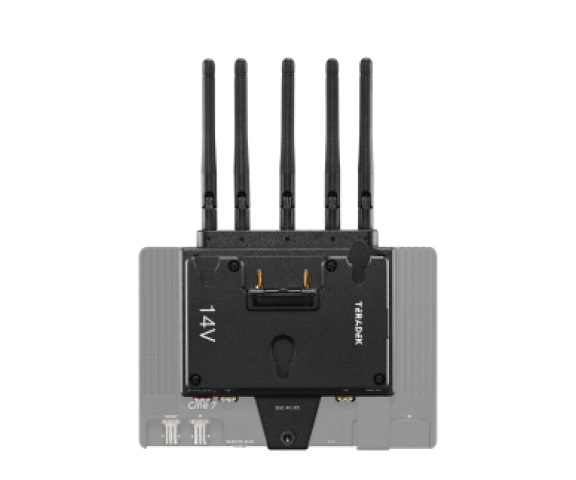

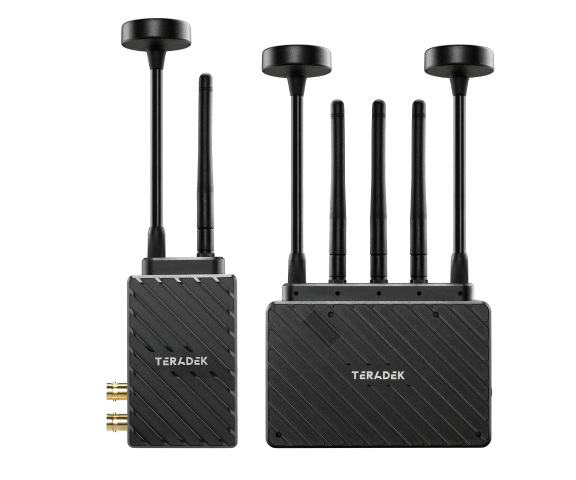

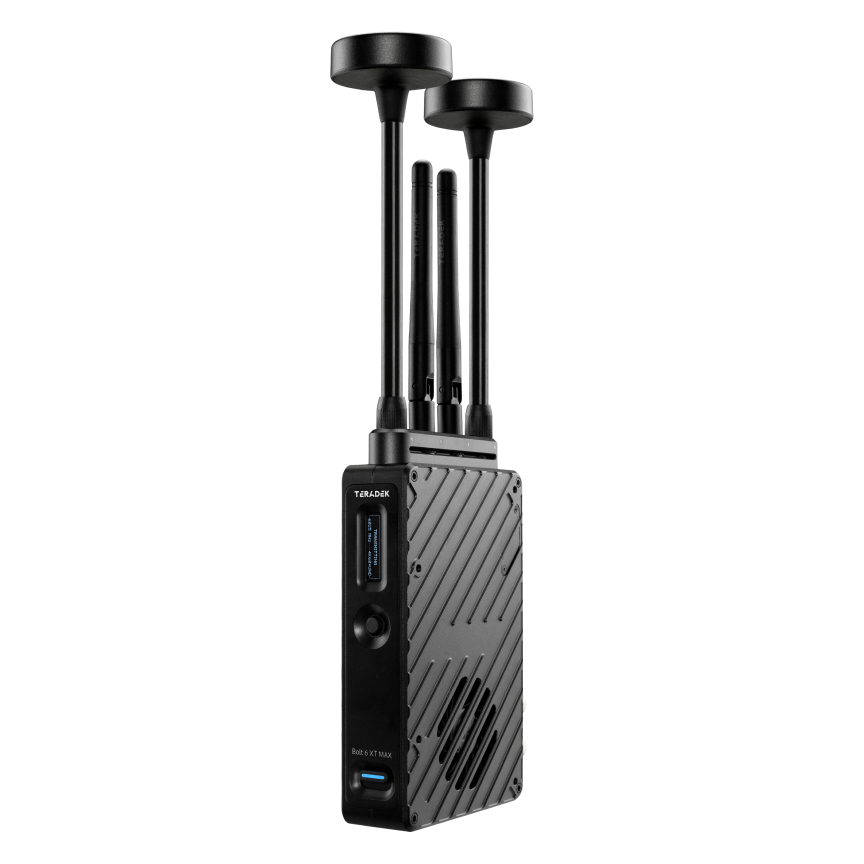

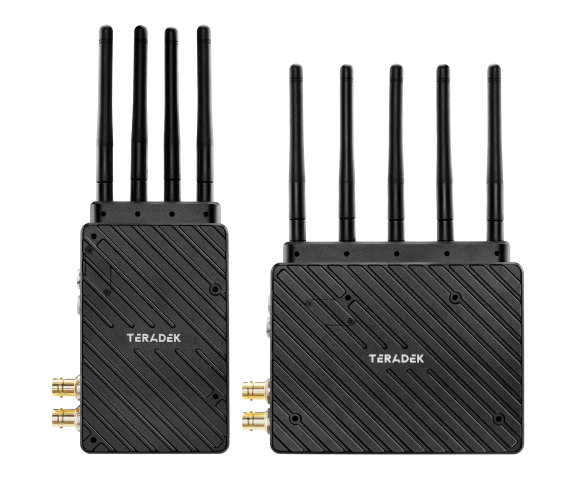

Transmit and receive lossless HD video from up to 5000' line of sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 XT MAX 12G-SDI/HDMI transmitter and a wireless Bolt 6 XT MAX 12G-SDI/HDMI receiver that support the new 6 GHz wireless frequency, feature bright OLED displays, V-mount battery plates on each unit, and can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support.


Full 12G-SDI Pipeline

The most advanced wireless transmitters in the world.
True zero-delay uncompressed 4K workflows.

6GHz Connectivity

More frequencies than ever to find the best
option in challenging RF environments.

Powerful Video Processing

Up/Down Video Scaling, 3D LUTs, Frame-Rate

Conversion, SDI Eye Pattern Tool.



More Channels, Less Interference

A Breath of Fresh Airwaves

Bolt 6 adds 12 new 6GHz channels to the standard 5GHz options.
When searching for the perfect channel with no interference, this
doubles the total number of frequencies you can choose from.

The more frequencies you have, the better your signal.


Video I/O
Transmitter: 1x HDMI 2.0 Input
Transmitter: 1x BNC (12G-SDI) Input
Transmitter: 1x BNC (12G-SDI) Loop Output
Receiver: 1x HDMI 2.0 Output
Receiver: 1x BNC (12G-SDI) Output
Embedded Audio
HDMI: 2-Channel
SDI: 2-Channel
Latency
< 0.01 ms
Video Format
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Power Consumption
Transmitter: 20 W
Receiver: 18 W

Inputs / Outputs

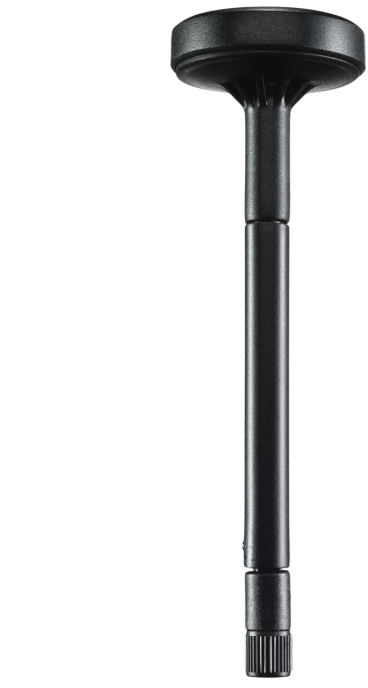

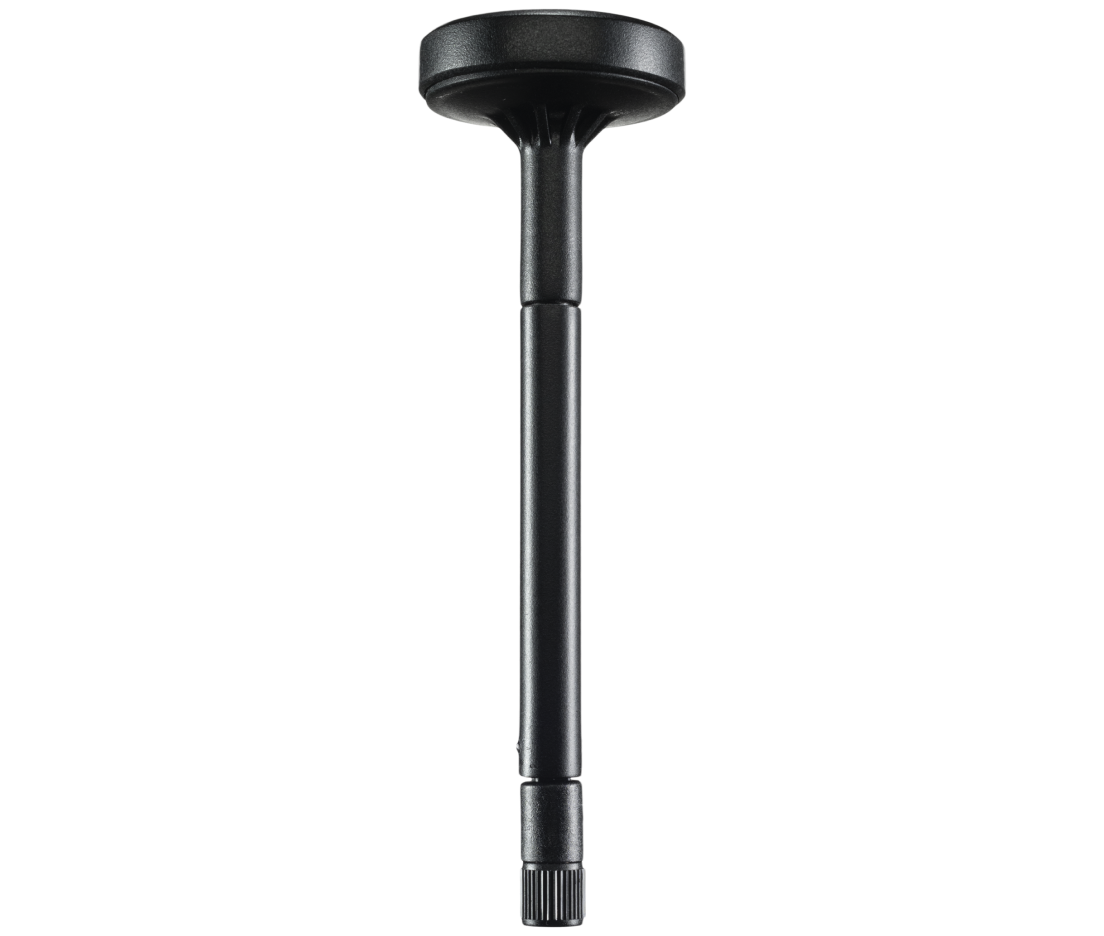

Antenna I/O

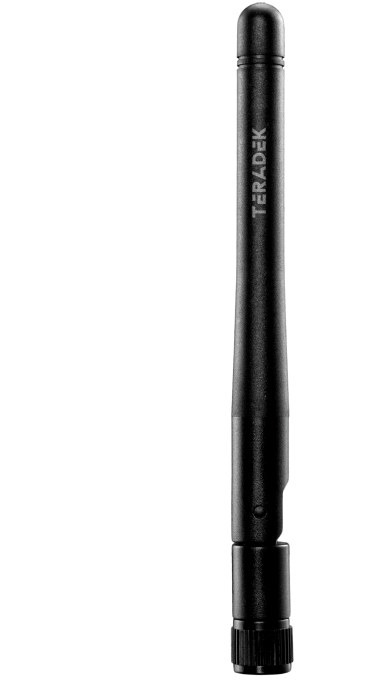

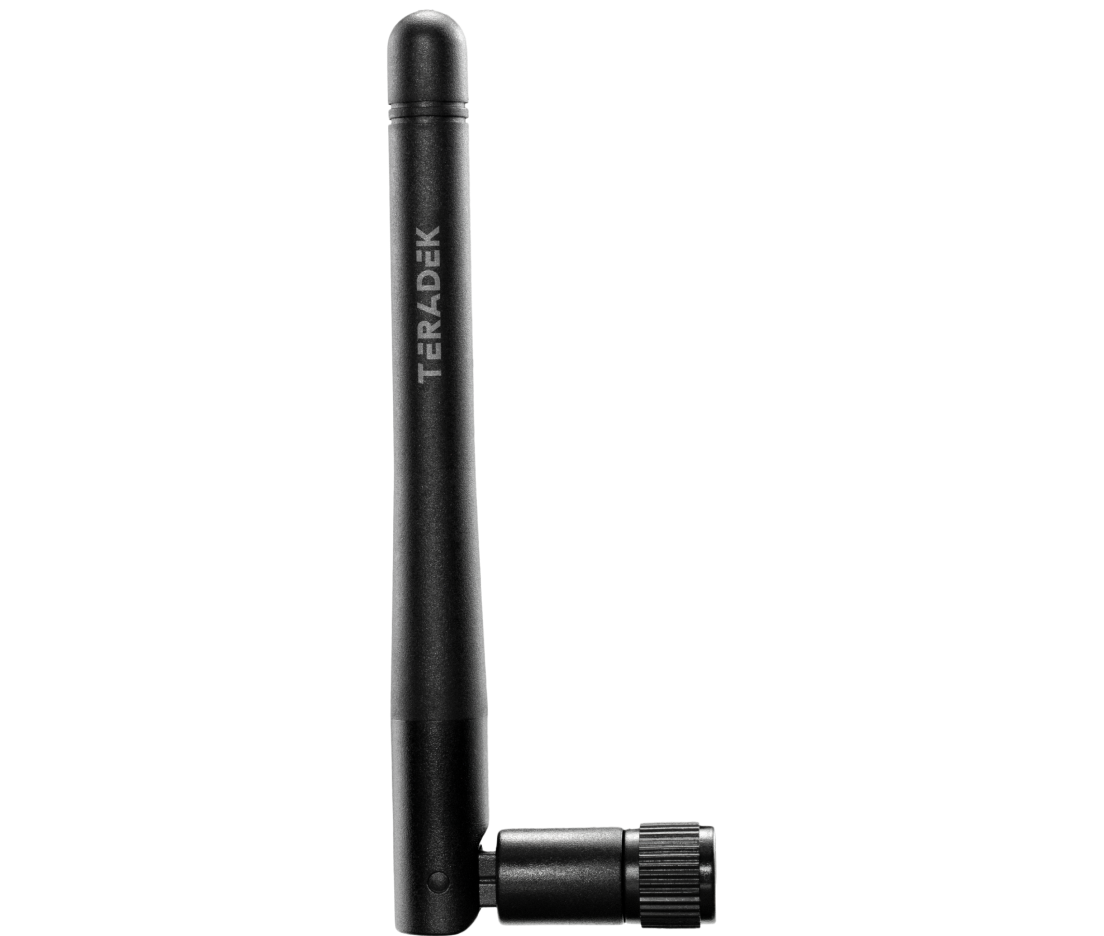

Transmitter: 4x RP-SMA Female

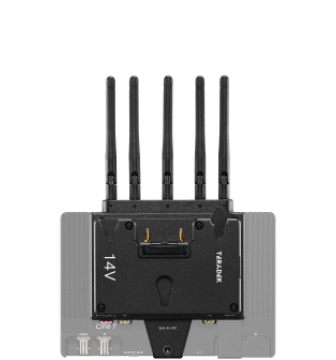

Receiver: 5x RP-SMA Female
Video I/O
Transmitter: 1x HDMI 2.0 Input
Transmitter: 1x BNC (12G-SDI) Input
Transmitter: 1x BNC (12G-SDI) Loop Output
Receiver: 1x HDMI 2.0 Output
Receiver: 1x BNC (12G-SDI) Output
Embedded Audio
HDMI: 2-Channel
SDI: 2-Channel
Audio I/O
No
Power I/O
Transmitter/Receiver: 1x LEMO 2-Pin (28 VDC) Input
Other I/O
Transmitter/Receiver: 1x USB-C 2.0 Input
Transmitter/Receiver: 1x LEMO 5-Pin 2.0 Output
Encryption
Yes, 256-Bit AES
Wireless
Wireless Range
5000' / 1524 m (Line-of-Sight)
Channel Bandwidth
40 MHz
Frequency Range
Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency
< 0.01 ms
RF Power
23 dBm
Wi-Fi
No
Bluetooth
Yes
Mobile App Compatible
Yes: Android & iOS
App Name: Bolt App
Cellular Support
No
Format Support
Video Format
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format
2-Channel 24-Bit 48 kHz
Timecode Support
Yes
Power
Input Power
6 to 28 VDC
Power Consumption
Transmitter: 20 W
Receiver: 18 W
General
Environmental Resistance
No
Operating Conditions
32 to 72°F / 0 to 40°C
Material of Construction
Aluminum, Polycarbonate
Dimensions
Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm
Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm
Weight
Transmitter: 12.13 oz / 344.00 g
Receiver: 15.17 oz / 430.00 g
Packaging Info
Package Weight
10.755 lb
Box Dimensions (LxWxH)
14.4 x 11.5 x 7.2"
