Teradek : Bolt 6 RX 750 Monitor Module for Smart 7 Series (Gold Mount)

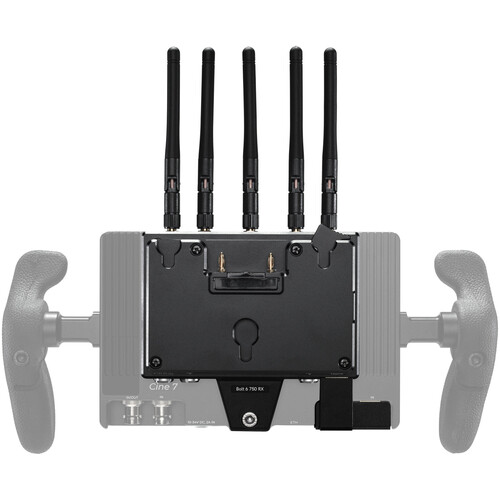

Receive lossless HD video from up to 750' line-of-sight with the Bolt 6 RX 750 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A Gold mount battery plate is included to power the receiver using a professional Gold mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

Teradek : Bolt 6 RX 750 Monitor Module for Smart 7 Series (Gold Mount)


Receive lossless HD video from up to 750' line-of-sight with the Bolt 6 RX 750 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A Gold mount battery plate is included to power the receiver using a professional Gold mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

Key Features

  • Supports New 6 GHz Frequency Band
  • Receive HD Video from up to 750' LoS
  • Gold Mount Battery Plate
  • For SmallHD Cine 7/Indie 7/702 Touch
  • Receive up to 4K30 Video, Zero Delay
  • Output Video up to 4K30 via HDMI
  • Compatible with Any Bolt 4K Transmitter
  • AES-256 Encryption, 5 x Antennas
  • Bluetooth Mobile App, Spectrum Analyzer



Teradek RX Module 750Specs

Key Specs
Video I/O
1x HDMI 1.4b Output
Embedded Audio
HDMI: 2-Channel
Latency
< 0.01 ms
Video Format
HDMI/Wireless
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Battery Type
1x Gold Mount
Power Consumption
6 W
Inputs / Outputs
Antenna I/O
5x RP-SMA Female
Video I/O
1x HDMI 1.4b Output
Embedded Audio
HDMI: 2-Channel
Audio I/O
No
Power I/O
1x LEMO 2-Pin (18 VDC) Input
Other I/O
2x LEMO 5-Pin 2.0 Output
Encryption
Yes, 256-Bit AES
Wireless
Wireless Range
750' / 228.6 m (Line-of-Sight)
Channel Bandwidth
40 MHz
Frequency Range
Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency
< 0.01 ms
RF Power
21 dBm
Wi-Fi
No
Bluetooth
Yes
Mobile App Compatible
Yes: Android & iOS
Cellular Support
No
Format Support
Video Format
HDMI/Wireless
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format
2-Channel 24-Bit 48 kHz LPCM Audio
Timecode Support
Yes
Power
Input Power
6 to 18 VDC
Battery Type
1x Gold Mount
Power Consumption
6 W
General
Environmental Resistance
No
Operating Conditions
32 to 72°F / 0 to 40°C
Material of Construction
Aluminum, Plastic
Dimensions
4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight
10.30 oz / 292.00 g
Packaging Info
Package Weight
3.08 lb
Box Dimensions (LxWxH)
17 x 8.4 x 3.7"
