AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)

AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)
AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)
รหัสสินค้า SKU-02365
หมวดหมู่ AV OVER IP
ราคา 0.00 บาท
VAT7% สอบถามเพิ่มเติม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 17 ม.ค. 2568
อัพเดทล่าสุด 17 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : AVOverIP, 4K60Encoder, 4KVideoStreaming, VideoEncoderDecoder, HighPerformanceAV, LowLatencyStreaming, AVIntegrators, AVProfessionals

รายละเอียดสินค้า

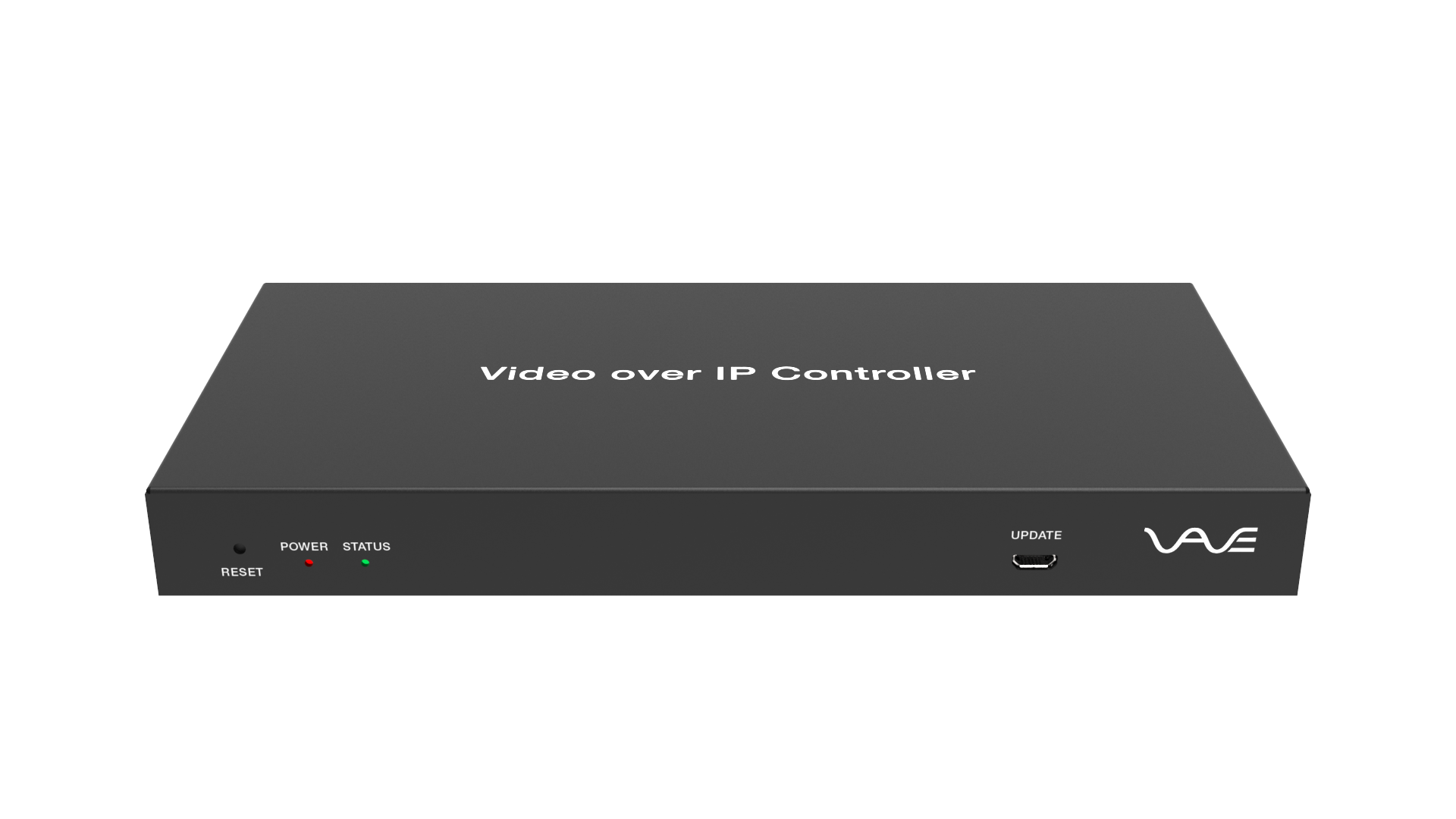

AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE) This Video over IP Controller is used to control and manage SDVoE IP products. It supports dual 1G network ports, which can realize dual-network isolation of Control network and Multicast video distribution network. The product supports Web GUI/TCP/RS-232/IR/GPIO controls and POE function. Since the demand of IP products is daily increased in the current market, the IP Controller will be widely applied in more and more different scenarios.

AVIP-SDVOE-10G-CTL - VAVE Matrix/Multiview Controller AV over IP Control Box (For SDVoE)



This Video over IP Controller is used to control and manage SDVoE IP products. It supports dual 1G network ports, which can realize dual-network isolation of Control network and Multicast video distribution network. The product supports Web GUI/TCP/RS-232/IR/GPIO controls and POE function. Since the demand of IP products is daily increased in the current market, the IP Controller will be widely applied in more and more different scenarios.

Feature :

  • Easy to create project, control and manage the system
  • HTTPS, SSH security compatible
  • Built-in Web GUI control interface, supporting Drag & Drop operations
  • Support image preview
  • Support video, audio, RS-232, IR, KVM control and management of the distributed system
  • Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks.
  • Support LAN/RS-232 port control and third-party central control
  • Support IR signal receiving and loop output (3.5mm audio jack, 12V level)
  • 4 channel GPIO control ports (5V/12V optional level) Multiple circuits protection, lightning protection and ESD design
  • Reliable system design, ensuring 7*24 hours reliable and stable work

Specifications

Technical
Network Bandwidth 100M
Transmission Distance 100m CAT 5E/6/6A/7

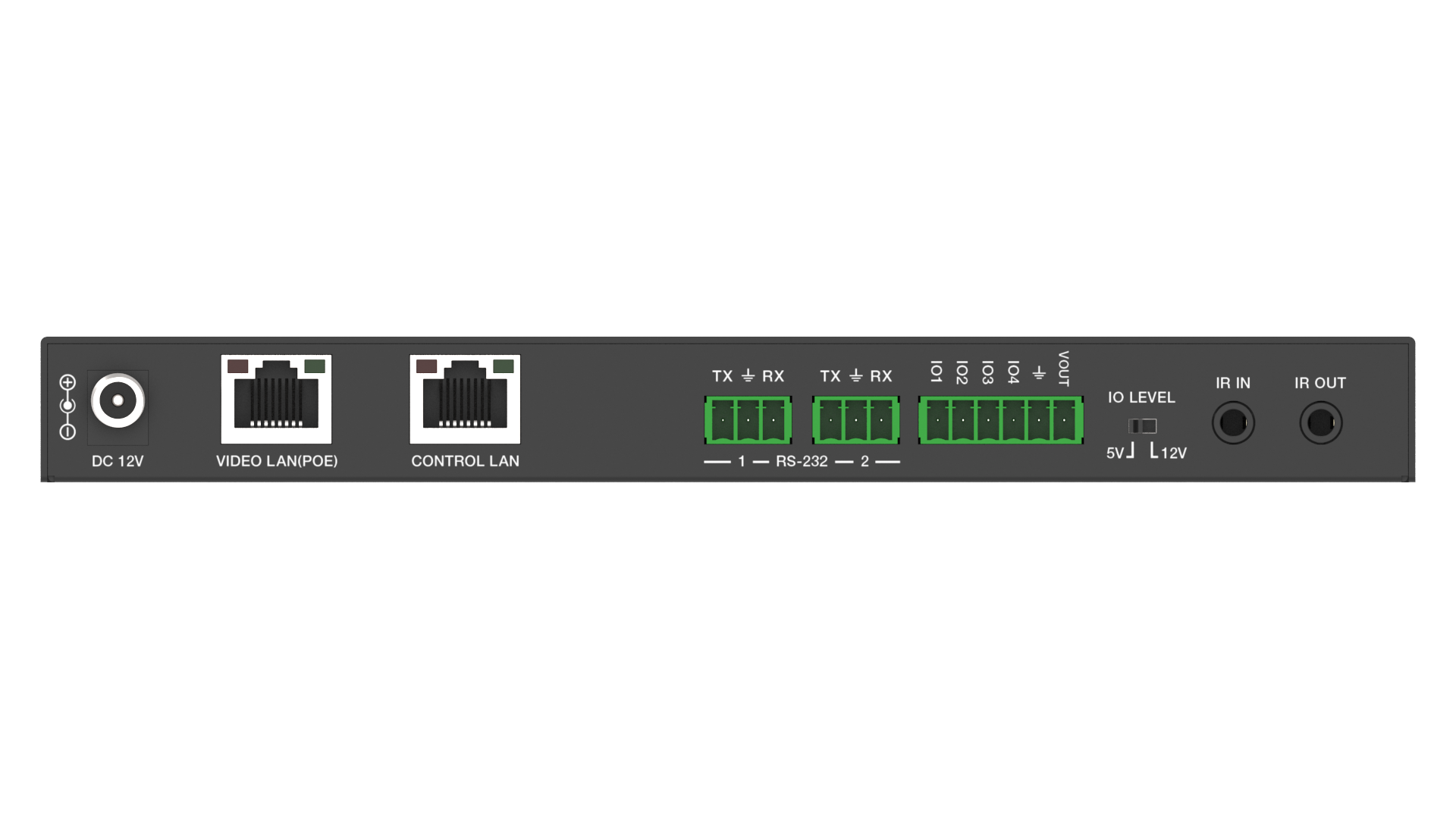

Control Ports 2x 1G LAN [RJ45 connector] [VIDEO LAN support POE]
1x IR IN [3.5mm audio jack, 12V level]
1x IR OUT [3.5mm audio jack]
1x DIGITAL I/O [6-pin 3.81mm phoenix connector]
2x RS-232 [3-pin 3.81mm phoenix connector]
1x USB Host [Micro USB, 5-pin female]
Dimensions 204mm(W)×98.5mm(D)×21.5mm(H)
Housing Metal Enclosure
Color Black
Weight 508g
Power Supply 12V/1A
Power Consumption (Max) 8.4W
Operation Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage temperature  -4 – 140°F / -20 – 60°C
Relative Humidity  20 – 90% RH (no condensation)
