AVIP-J1G-CTL - VAVE 4K60 4:4:4 AV over IP JPEC2K Control

AVIP-J1G-CTL - VAVE 4K60 4:4:4 AV over IP JPEC2K Control
AVIP-J1G-CTL - VAVE 4K60 4:4:4 AV over IP JPEC2K ControlAVIP-J1G-CTL - VAVE 4K60 4:4:4 AV over IP JPEC2K ControlAVIP-J1G-CTL - VAVE 4K60 4:4:4 AV over IP JPEC2K Control
รหัสสินค้า SKU-02366
หมวดหมู่ AV OVER IP
ราคา 0.00 บาท
VAT7% สอบถามเพิ่มเติม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 17 ม.ค. 2568
อัพเดทล่าสุด 17 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : AVOverIP, 4K60Encoder, 4KVideoStreaming, VideoEncoderDecoder, HighPerformanceAV, LowLatencyStreaming, AVIntegrators, AVProfessionals

รายละเอียดสินค้า

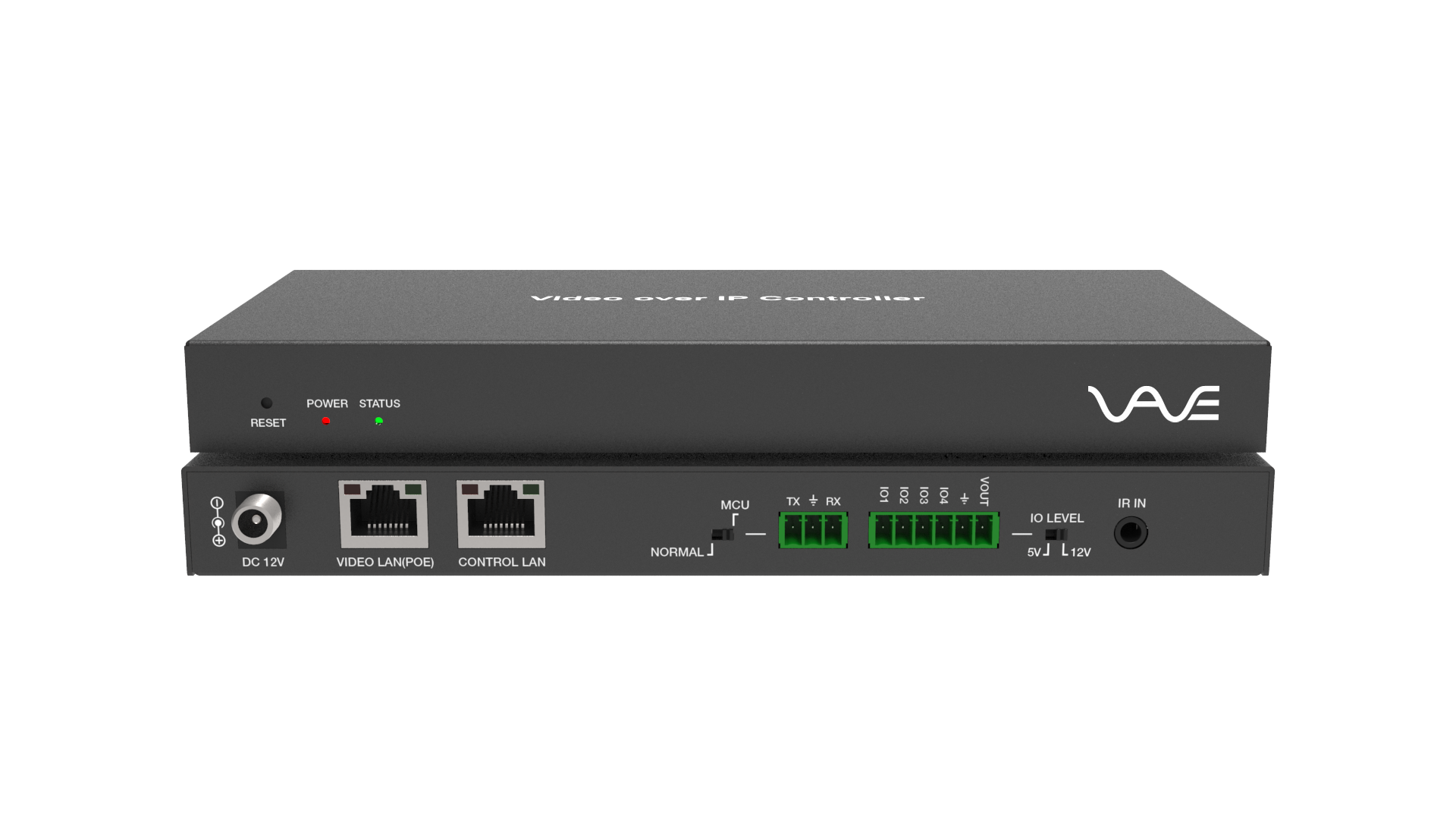

AVIP-J1G-CTL - VAVE 4K60 4:4:4 AV over IP JPEC2K Control This Video over IP Controller is used to control and manage JPEG2000 IP products. It supports dual 100M network ports, which can realize dual network isolation of Control network and Multicast video distribution network. Built-in Web GUI, TCP and RS-232 control are supported. It supports POE function and wide-band 12V IR signal receiving. Since the demand of IP products is daily increased in the current market, the IP Controller will be widely applied in more and more different scenarios

AVIP-J1G-CTL - VAVE 4K60 4:4:4 AV over IP JPEC2K Control



This Video over IP Controller is used to control and manage JPEG2000 IP products. It supports dual 100M network ports, which can realize dual network isolation of Control network and Multicast video distribution network. Built-in Web GUI, TCP and RS-232 control are supported. It supports POE function and wide-band 12V IR signal receiving. Since the demand of IP products is daily increased in the current market, the IP Controller will be widely applied in more and more different scenarios

Feature :

  • Easy to create project, control and manage the system
  • Flexibly support Auto, DHCP and Manual three types of IP configurations
  • HTTPS, SSH, SFTP security compatible
  • Built-in Web GUI control interface, supporting Drag & Drop operations
  • Support image preview
  • Support video, audio, RS-232, IR, KVM control and management of the distributed system
  • Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks.
  • Support LAN/RS-232 port control and third-party central control
  • Support IR signal receiving (3.5mm audio jack, 12V level)
  • 4 channel GPIO control ports (5V/12V optional level)
  • Multiple circuits protection, lightning protection and ESD design
  • Reliable system design, ensuring 7*24 hours reliable and stable work

Specifications

 Technical
 Network Bandwidth 100M
Transmission Distance 100m CAT 5E/6/6A/7
Control Ports



 2 x 100M LAN [RJ45 connector] [VIDEO LAN support POE]
1 x IR IN [3.5mm audio jack, 12V level]
1 x DIGITAL I/O [6-pin 3.81mm phoenix connector]
1x RS-232 [3-pin 3.81mm phoenix connector]
Dimensions 204mm(W)×98mm(D)×21mm(H)
Housing Metal Enclosure
Color Black
Weight 509g
Power Supply 12V/1A
Power Consumption (Max) 4.5W
Operation Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage temperature  -4 – 140°F / -20 – 60°C
Relative Humidity  20 – 90% RH (no condensation)
