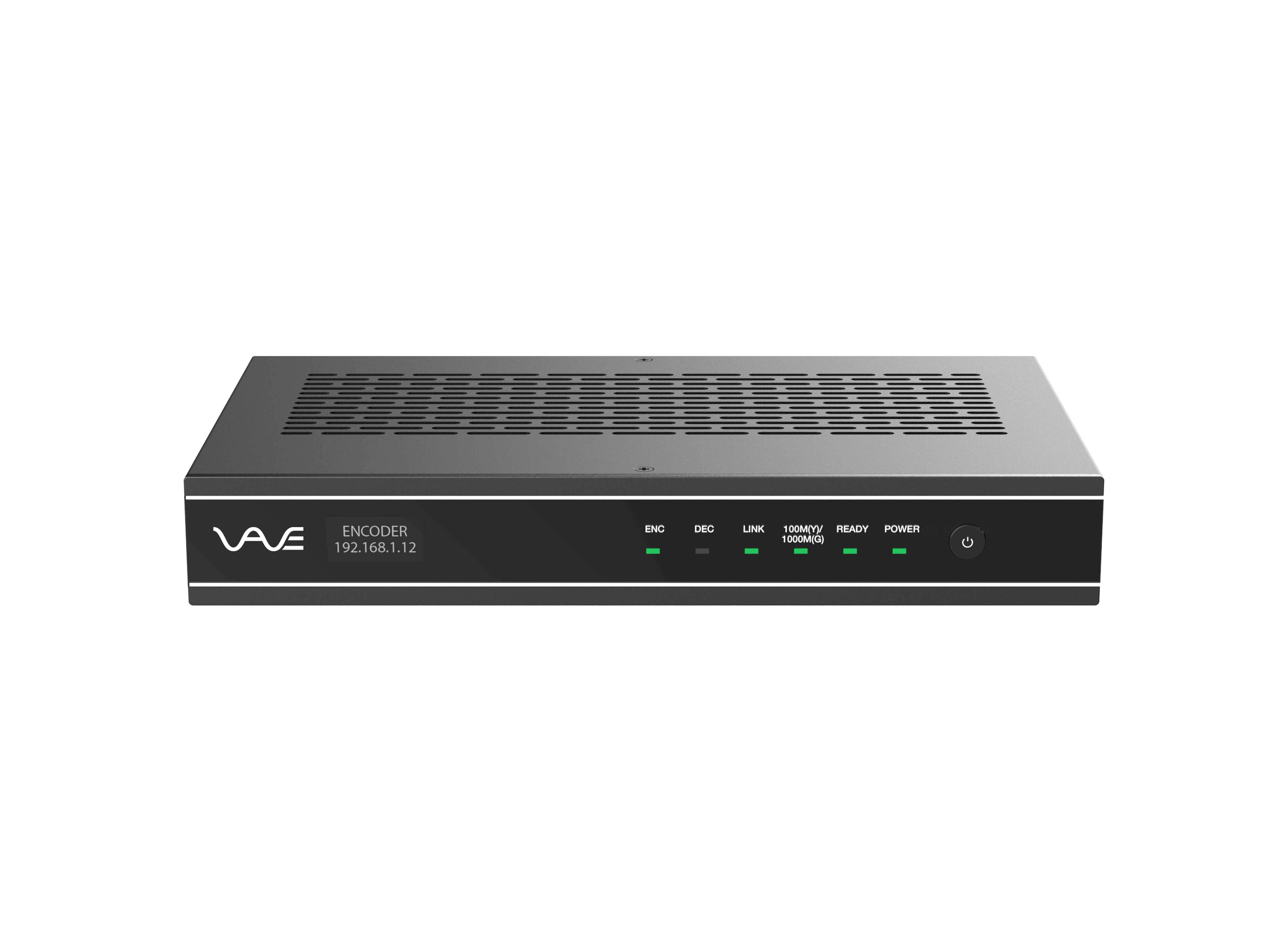

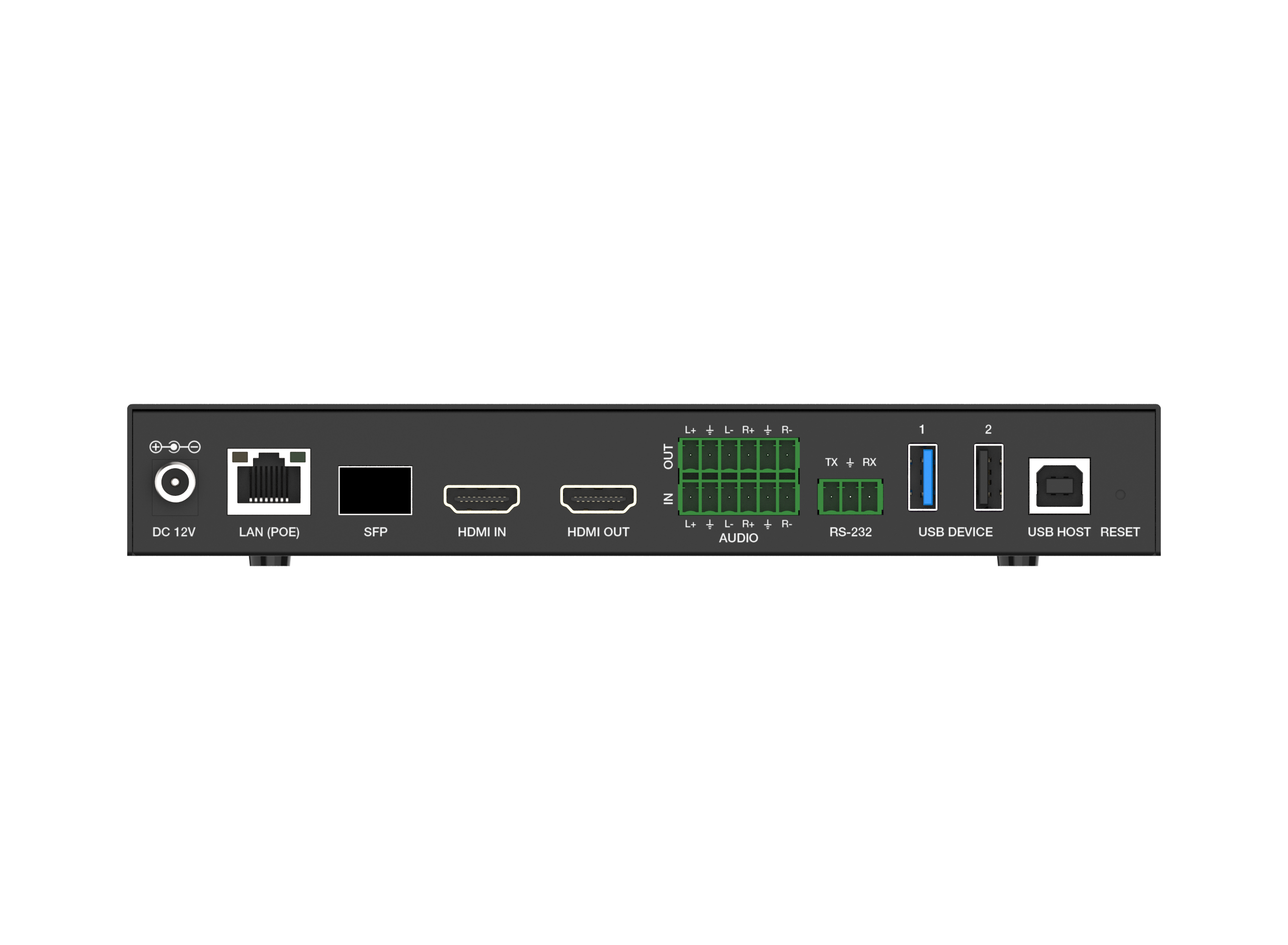

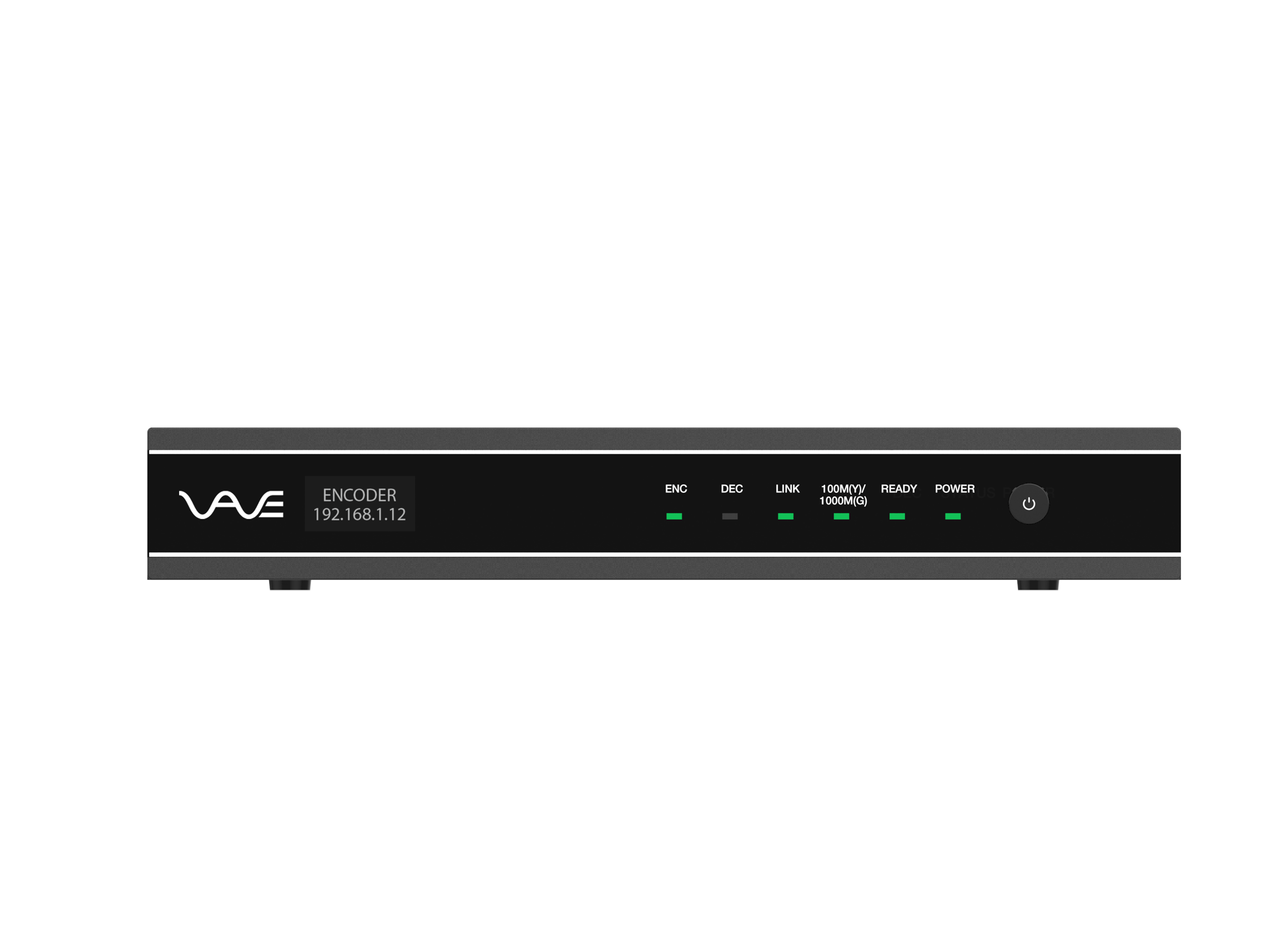

AVIP-H265-1G-T - VAVE Transceiver H265 4K60 4:4:4 AV over IP

AVIP-H265-1G-T - VAVE Transceiver H265 4K60 4:4:4 AV over IP

This product is an IP-based distributed digital video processing system, designed as a comprehensive solution for digital audio and video management. Utilizing advanced technologies such as audio/video processing, networking, visualization, centralized control, and full network distribution, it ensures ultra-low latency and high-quality audio/video transmission over a standard 1G Copper or Fiber Network Switch. The system supports seamless switching, video wall capabilities, and MultiView functions. Its flexible transceiver design allows each unit to function as either an encoder or decoder, enhancing ease of installation and inventory management.

This solution is dedicated to providing users with a high-performance, reliable, and intuitive visualization platform. By leveraging distributed interconnection, it integrates audio/video management, matrix switching, splicing and blending, window roaming, KVM collaboration, POE power supply, and big data applications to create a comprehensive visualization information solution

Feature :

• 4K60 4:4:4 over IP H.265 Transceiver
• Encoder/Decoder one box design with Copper and Fiber full version
• HDMI 2.0b, HDCP 2.2 compliant, up to 4K60Hz (4:4:4) 18Gbps
• HDR10, Dolby Vision, HLG pass-through
• Support ultra-low latency operating modes
• Seamless switching, video wall up to 9×9, multiviewer up to 25 windows
• Support USB KVM and RS-232
• Audio embedding and de-embedding
• Encoder or Decoder mode can be set by front panel button or API
• Encoder supports HDMI Loop out
• Built-in H.264 stream for video preview on portable devices
• Control via front panel buttons, RS-232 and TCP/IP
• Standard POE supported (802.3at PD device)
• 1G managed network switch

Specifications
