EX-HDBT-120A - VAVE 18 Gbps HDBaseT Extender 150m Full HD ,120m 4K
รายละเอียดสินค้า
EX-HDBT-120A - VAVE 18 Gbps HDBaseT Extender 150m Full HD ,120m 4K
This 18Gbps HDMI Extender extends high-definition video and audio signals, RS-232, and bi-directional IR up to 492ft (150 meters) using a single CAT cable. It supports resolutions up to 4K@60Hz 4:4:4, 18Gbps bandwidth, and HDCP 2.2. The extender includes an HDMI loop-out port and supports de-embedded audio for L/R audio output. Additionally, it features two-way IR pass-through for controlling both the source and display devices. The extender consists of two units: the transmitter, which captures the HDMI input signal and transmits it over a cost-effective Cat5e/6 cable while also handling IR control signals, and the receiver, which receives the HDMI signal and transmits IR control signals. This HDMI extender provides a convenient solution for extending HDMI signals over long distances via a single Cat5e/6 cable, making it ideal for a wide range of applications.
Feature :
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable:
- 394ft / 120 meters for 4K2K signal;
- 492ft / 150 meters for 1080P signal
- Support one HDMI loop output on the transmitter
- De-embeded audio to analog stereo output on receive
- With bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support PoC (Power over Cable) function
- Compact design for easy and flexible installation
Specifications
| Technical | ||||
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 | |||
| Video Bandwidth | 18Gbps | |||
| Video Resolution | 4K2K 50/60Hz 4:4:4 | |||
| 4K2K 50/60Hz 4:2:2 | ||||
| 4K2K 50/60Hz 4:2:0 | ||||
| 4K2K 30Hz 4:4:4 | ||||
| 1080p, 1080i, 720p, 720i, 480p, 480i | ||||
| All HDMI 3D TV formats | ||||
| All PC resolutions including 1920 x 1200 | ||||
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | |||
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) | |||
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | |||
| L/R Audio Formats | PCM 2.0 | |||
| ESD Protection | 150m/492ft at 1080P@60 | |||
| Connections | ||||
| Transmitter | ||||
| Input | Input: 1x HDMI IN [TypeA 19-pin female] | |||
| 1x LINE IN [3.5mm Stereo Mini-jack] | ||||
| Output | Output: 1x HDBT OUT [RJ45 8-pin female] | |||
| 1x HDMI OUT [TypeA 19-pin female] | ||||
| Control | Control: 1x AUDIO DIP Switch [1 pin] | |||
| 1x EDID DIP Switch [2-pin] | ||||
| 1x IR IN [3.5mm Stereo Mini-jack] | ||||
| 1x IR OUT [3.5mm Stereo Mini-jack] | ||||
| 1x Service [Micro-USB jack] | ||||

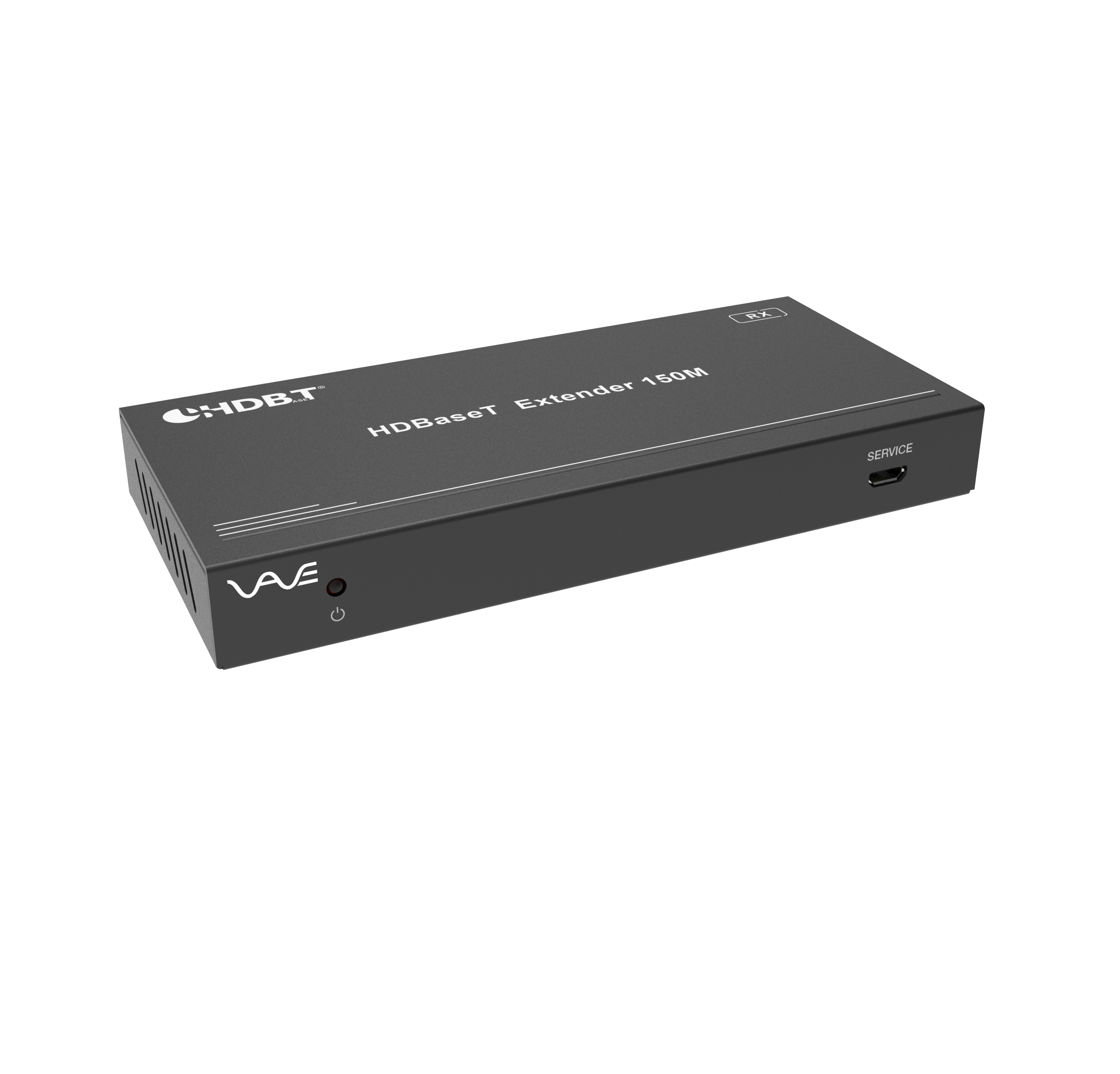

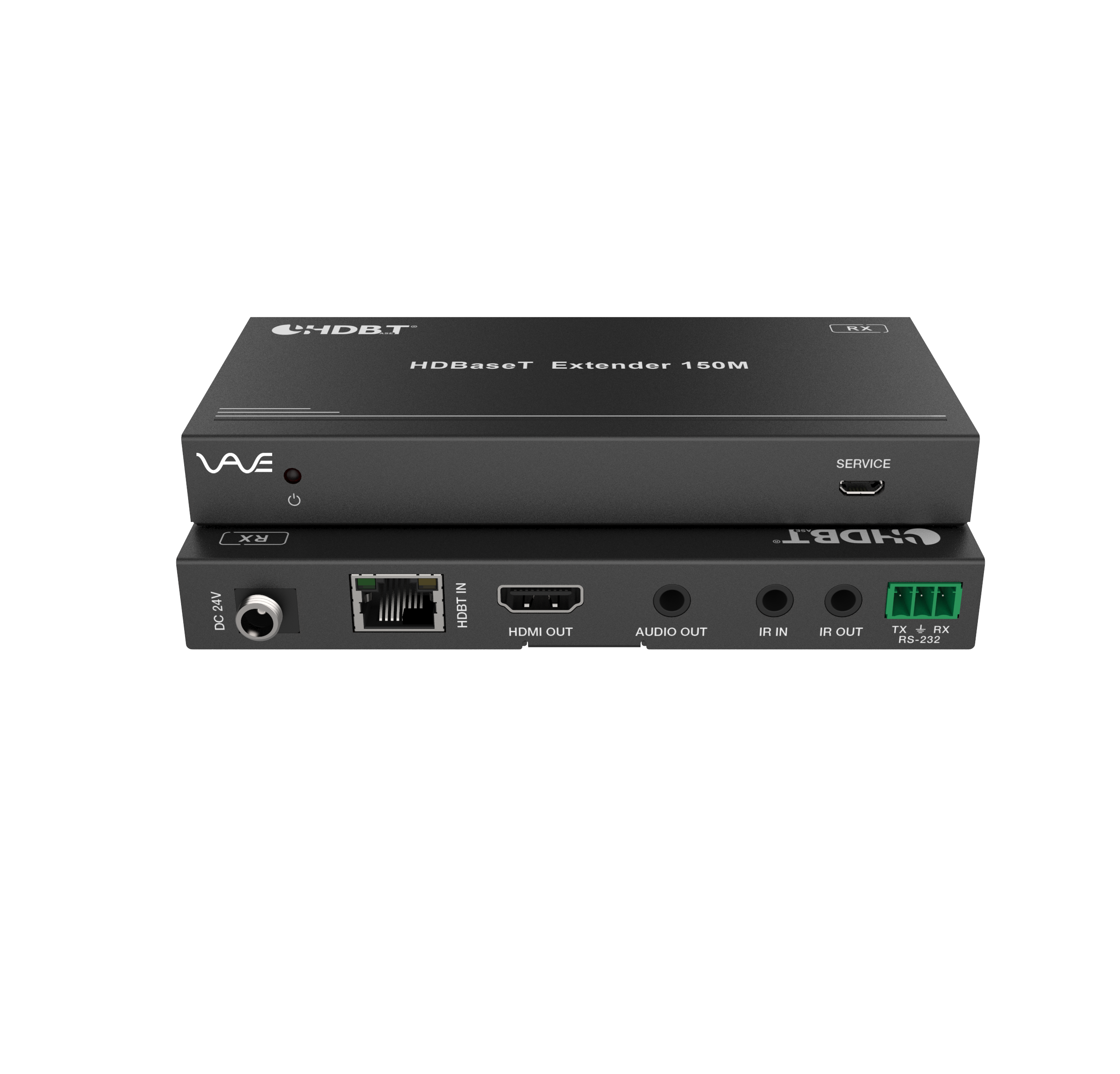

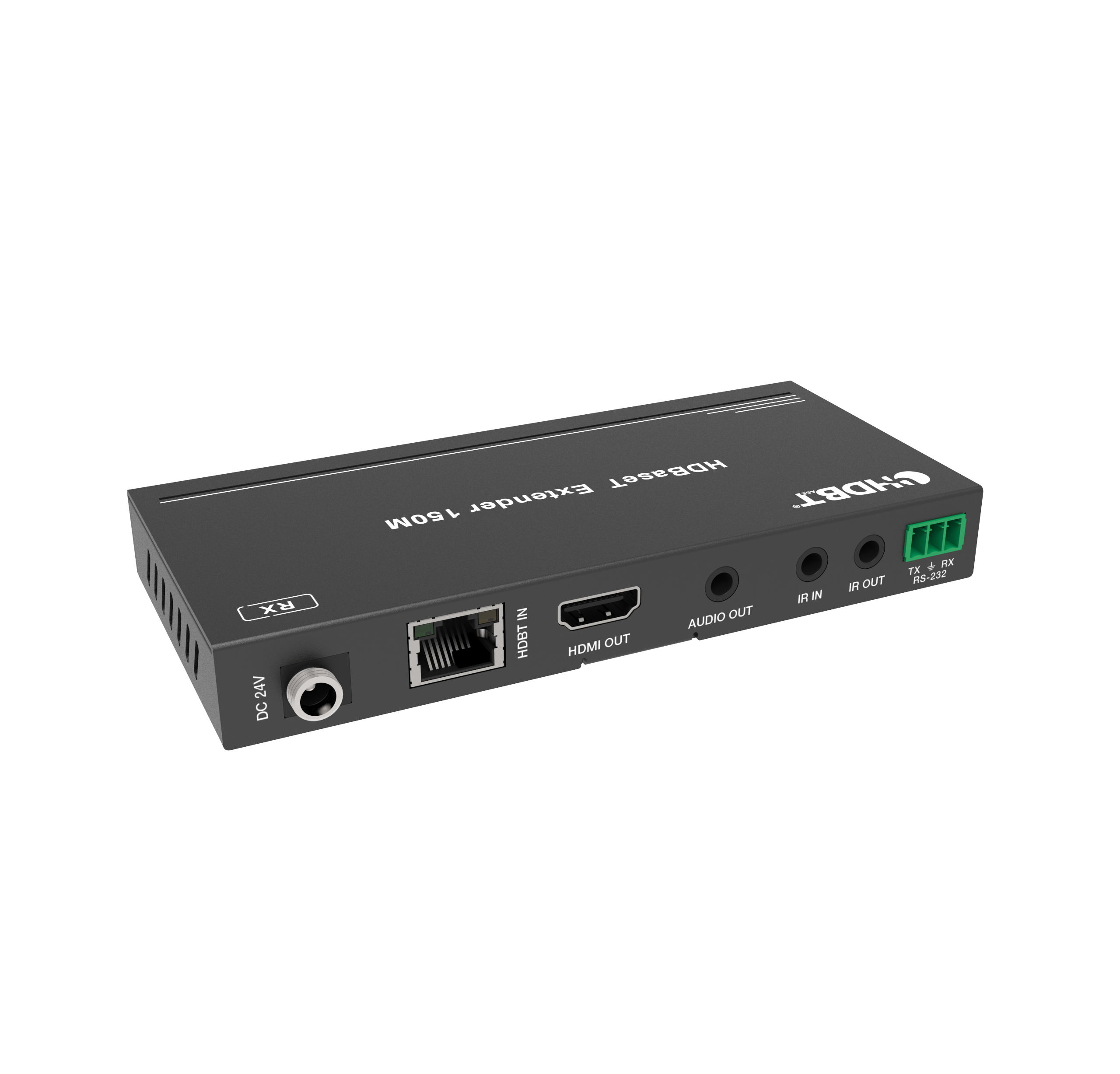

| Receiver | ||||
| Input | Input: 1x HDBT IN [RJ45 8-pin female] | |||
| Output | Output: 1x HDMI OUT [TypeA 19-pin female] | |||
| 1x AUDIO OUT [3.5mm Stereo Mini-jack] | ||||
| Control | Control: 1x RS-232 [Phoenix jack] | |||
| 1x SERVICE [Micro-USB jack] | ||||
| 1x IR IN [3.5mm Stereo Mini-jack] | ||||
| 1x IR OUT [3.5mm Stereo Mini-jack] | ||||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions | Transmitter / Receiver | |||
| 140mm [W] x 65mm [D] x 18mm [H] | ||||
| Weight | Transmitter: 160g, Receiver: 155g | |||
| Power Supply | Input: AC 100 – 240V 50/60Hz | |||
| Output: DC 24V/1A (Locking connector) | ||||
| Power Consumption (Max) | 9.36 W | |||
| Operation Temperature | 32°F – 104°F / 0°C – 40°C | |||
| Storage temperature | -4°F – 140°F / -20°C – 60°C | |||
| Relative Humidity | 20- 90% RH (no condensation) | |||
