EX-USB-100-U2 - VAVE USB2.0 over CAT Extender 100 maters

EX-USB-100-U2 - VAVE USB2.0 over CAT Extender 100 maters
EX-USB-100-U2 - VAVE USB2.0 over CAT Extender 100 matersEX-USB-100-U2 - VAVE USB2.0 over CAT Extender 100 matersEX-USB-100-U2 - VAVE USB2.0 over CAT Extender 100 maters
รหัสสินค้า SKU-02369
หมวดหมู่ vave
ราคา 0.00 บาท
VAT7% สอบถามเพิ่ม
สถานะสินค้า Pre-Order
ลงสินค้า 17 ม.ค. 2568
อัพเดทล่าสุด 17 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : HDBaseTExtender, 18GbpsTransmission, 4K120mRange, FullHD150mRange, 4KHDMIExtender, VideoTransmissionSolutions, AVOverLongDistances

รายละเอียดสินค้า

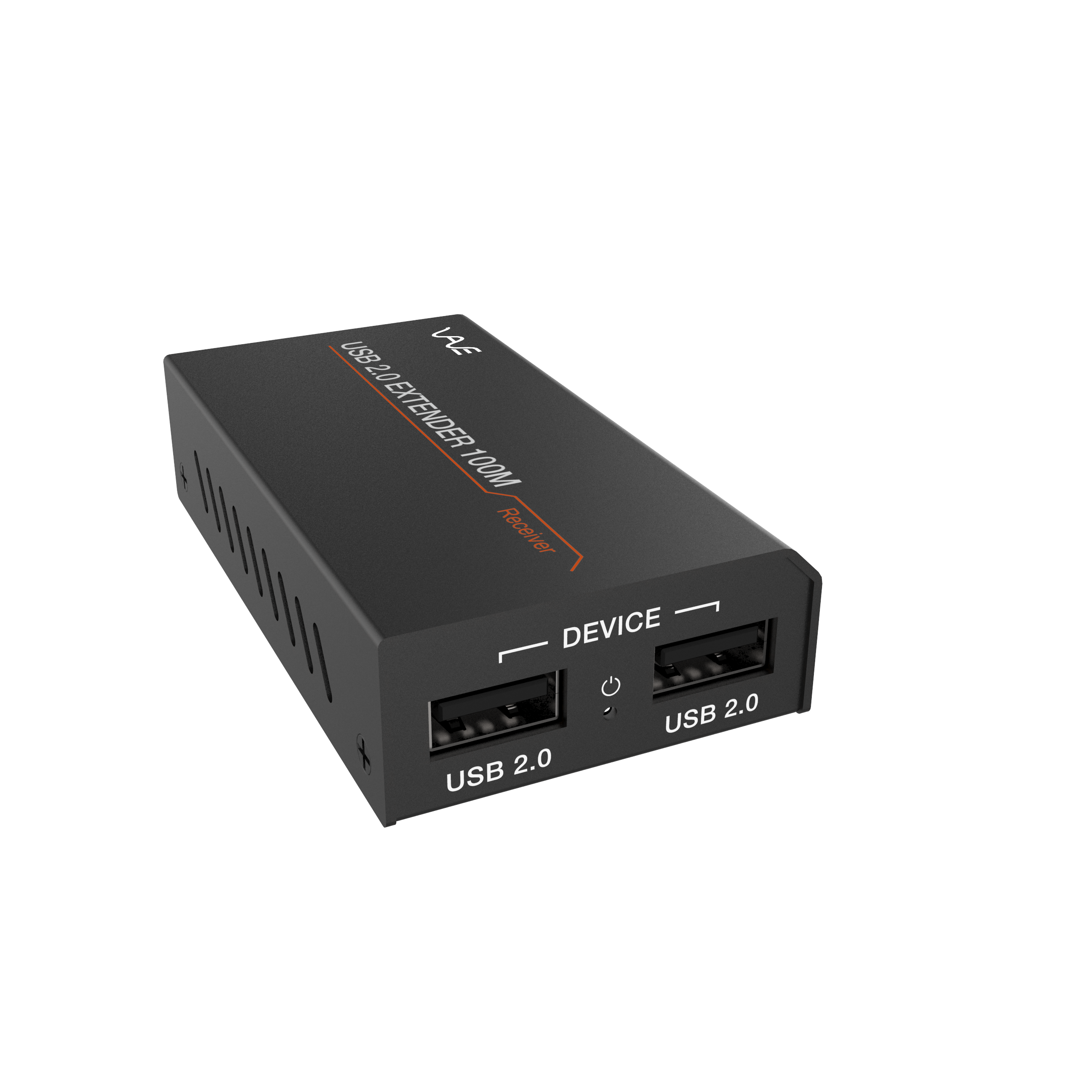

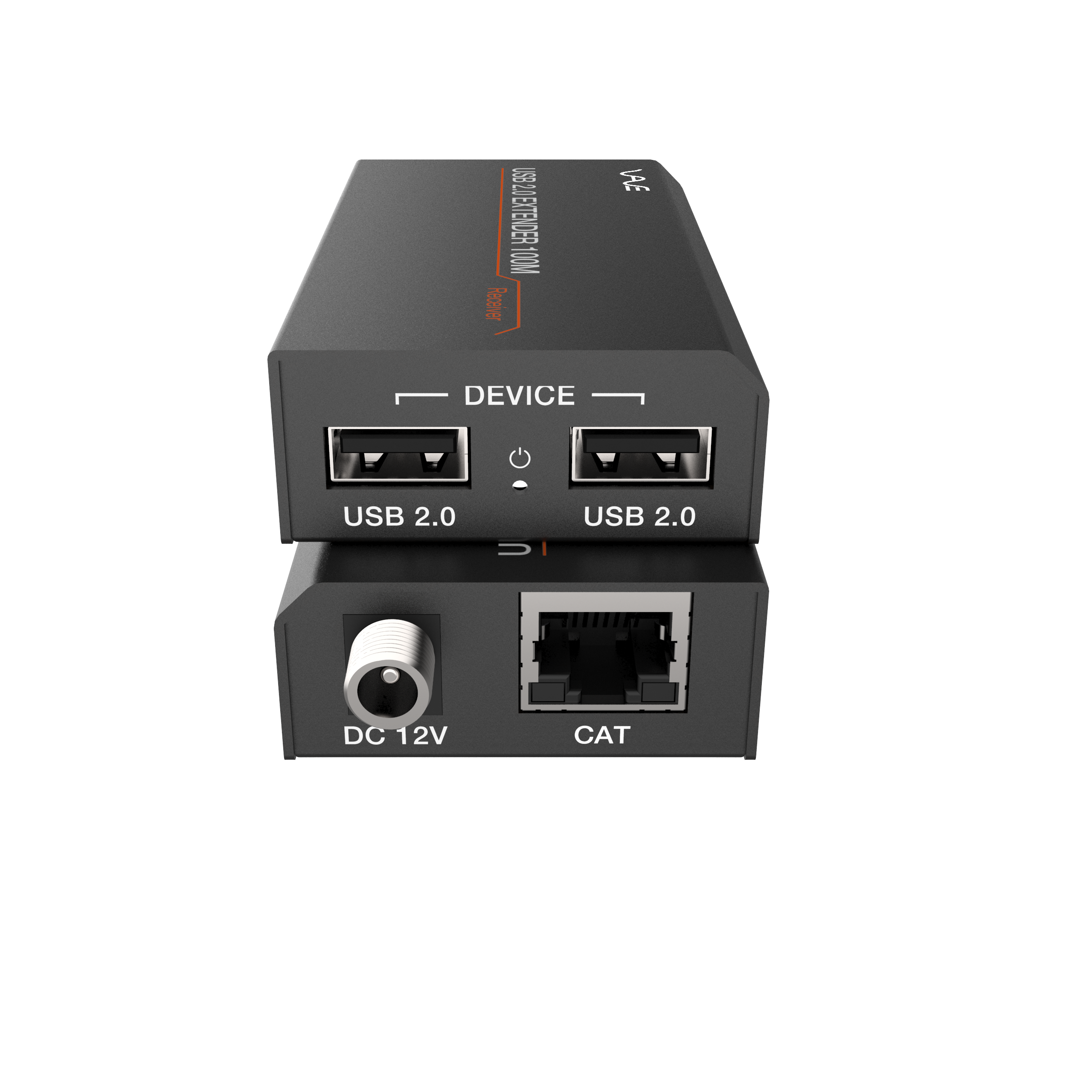

EX-USB-100-U2 - VAVE USB2.0 over CAT Extender 100 maters The USB 2.0 Extender extends USB signals up to 100m (328ft) using a single Cat5e/6 cable. The transmitter connects to a PC via a USB-B port, while the receiver allows you to connect USB devices, such as flash drives or printers, through two USB ports. Both the transmitter and receiver support POC (Power over Cable) functionality. This extender is ideal for long-distance signal transmission between a PC and USB devices, and it offers a simple plug-and-play setup with no drivers or installation required.

EX-USB-100-U2 - VAVE USB2.0 over CAT Extender 100 maters



The USB 2.0 Extender extends USB signals up to 100m (328ft) using a single Cat5e/6 cable. The transmitter connects to a PC via a USB-B port, while the receiver allows you to connect USB devices, such as flash drives or printers, through two USB ports. Both the transmitter and receiver support POC (Power over Cable) functionality. This extender is ideal for long-distance signal transmission between a PC and USB devices, and it offers a simple plug-and-play setup with no drivers or installation required.

Feature :



  • Support USB 2.0 protocol, transmission rate up to 480Mbps
  • Transmission distance is up to 100m / 328ft via a single CAT5e/6 cable
  • Support one USB-B port input in transmitter
  • Support two USB 2.0 ports output in receiver
  • Support POC function, it means that either transmitter or receiver is powered through 12V/1A power adapter, the other doesn’t need power supply.
  • Simple plug and play, no drive and installation setting required
  • Compact design for easy and flexible installation

Specifications

Technical
USB Protocol USB 2.0
Transmission Rate Up to 480Mbps
Transmission Distance 100M (328ft)
ESD Protection Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)
Connections
Transmitter Input port: 1x USB [USB-B, female]
Output port: 1x CAT [RJ45, female]
Receiver Input port: 1x CAT [RJ45, female]
Output port: 2x USB [USB-A, female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 82mm [W] x 49mm [D] x 22mm [H]
Weight Transmitter / Receiver: 100g
Power Supply Input: AC 100 – 240V 50/60Hz
Output: DC 12V/1A
Power Consumption Transmitter: 1.3W, Receiver: 2.3W
Operation Temperature 0°C – 40°C / 32°F – 104°F
Storage temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20- 90% RH (no condensation)
