EX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/Ethernet

EX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/Ethernet
EX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/EthernetEX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/EthernetEX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/EthernetEX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/EthernetEX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/EthernetEX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/EthernetEX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/EthernetEX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USB/eARC/Ethernet
รหัสสินค้า SKU-02372
หมวดหมู่ vave
ราคา 0.00 บาท
VAT7% สอบถามเพิ่ม
สถานะสินค้า Pre-Order
ลงสินค้า 17 ม.ค. 2568
อัพเดทล่าสุด 17 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : HDBaseTExtender, 18GbpsTransmission, 4K120mRange, FullHD150mRange, 4KHDMIExtender, VideoTransmissionSolutions, AVOverLongDistances

รายละเอียดสินค้า

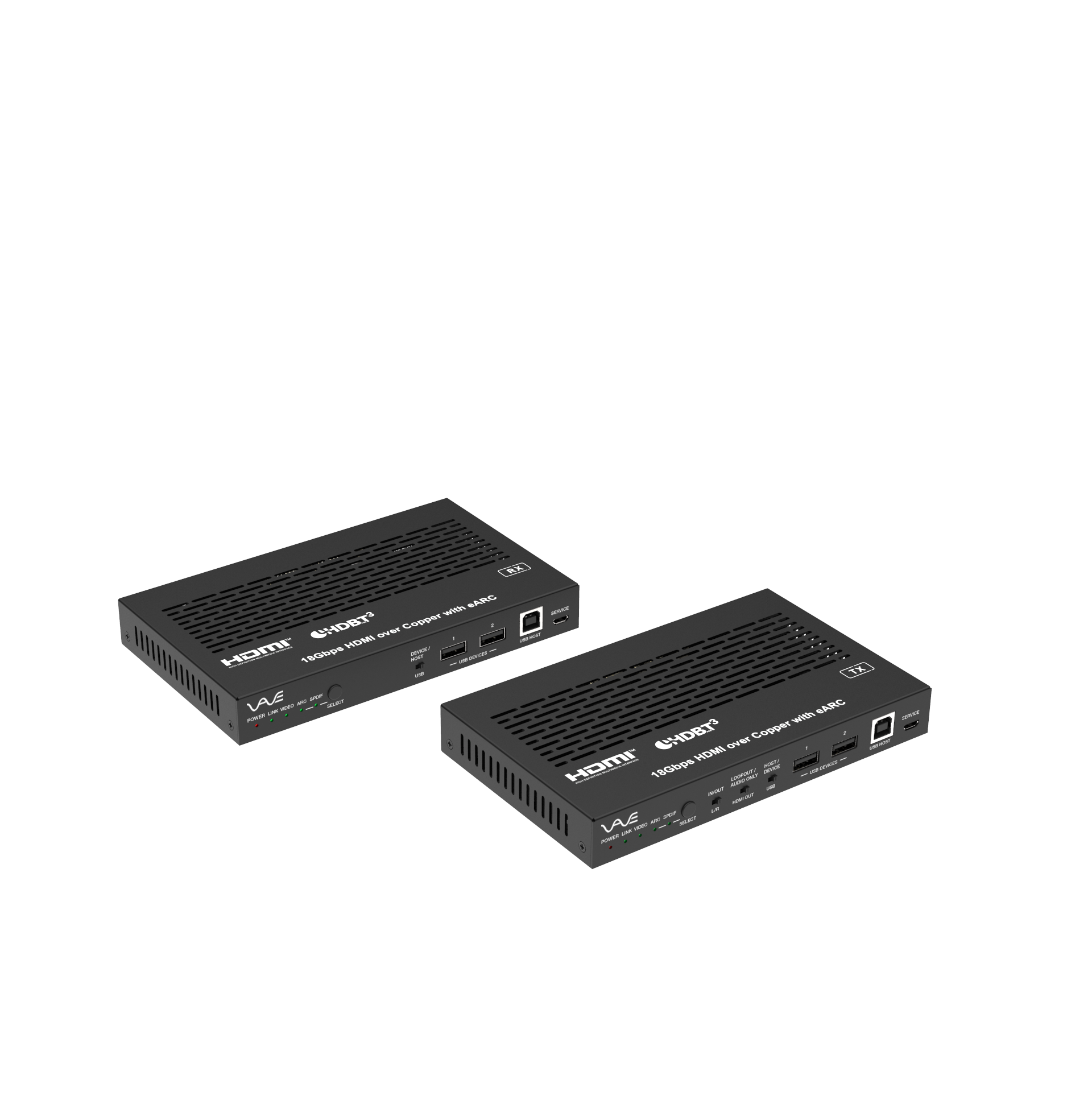

EX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USBeARCEthernet This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver

EX-HDBT-100- V3U2 - VAVE HDMI 4K 18Gbps HDBaseT 3.0 Extender 100m with USBeARCEthernet



This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX’s HDMI output pass through to TX’s HDMI input or de-embedding to TX’s HDMI audio only and SPDIF output ports, USB 2.0 (Host/Device is configurable) and bi-directional POC. The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for home/commercial application.

Feature :

  • HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant
  • Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth
  • HDR, HDR10, HDR10+, Dolby Vision and HLG pass through
  • LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass through
  • Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable
  • Supports eARC/ARC function (the audio is returned to the HDMI IN port, HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
  • Supports SPDIF audio reverse transmission
  • Bi-directional IR, RS-232 and 1G Ethernet signal pass through
  • Supports USB2.0 transmission, Host/Device is configurable
  • Bi-directional 24V POC function

Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution

HDBaseT Bandwidth

 Up to 4K@60Hz 4:4:4
16Gbps on main and 2Gbps on return link
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit
HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats PCM 2.0
SPDIF Audio Formats

IR Level

 LPCM2.0, AC3 5.1, DTS 5.1
12Vp-p
IR Bandwidth 20K – 60KHz
USB Bandwidth Up to 350Mbps
Ethernet 1000Mbps
RS-232 Up to 921600bps
Transmission Distance 100m (via a single CAT 6A/7 cable)
ESD Protection Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)
Connections

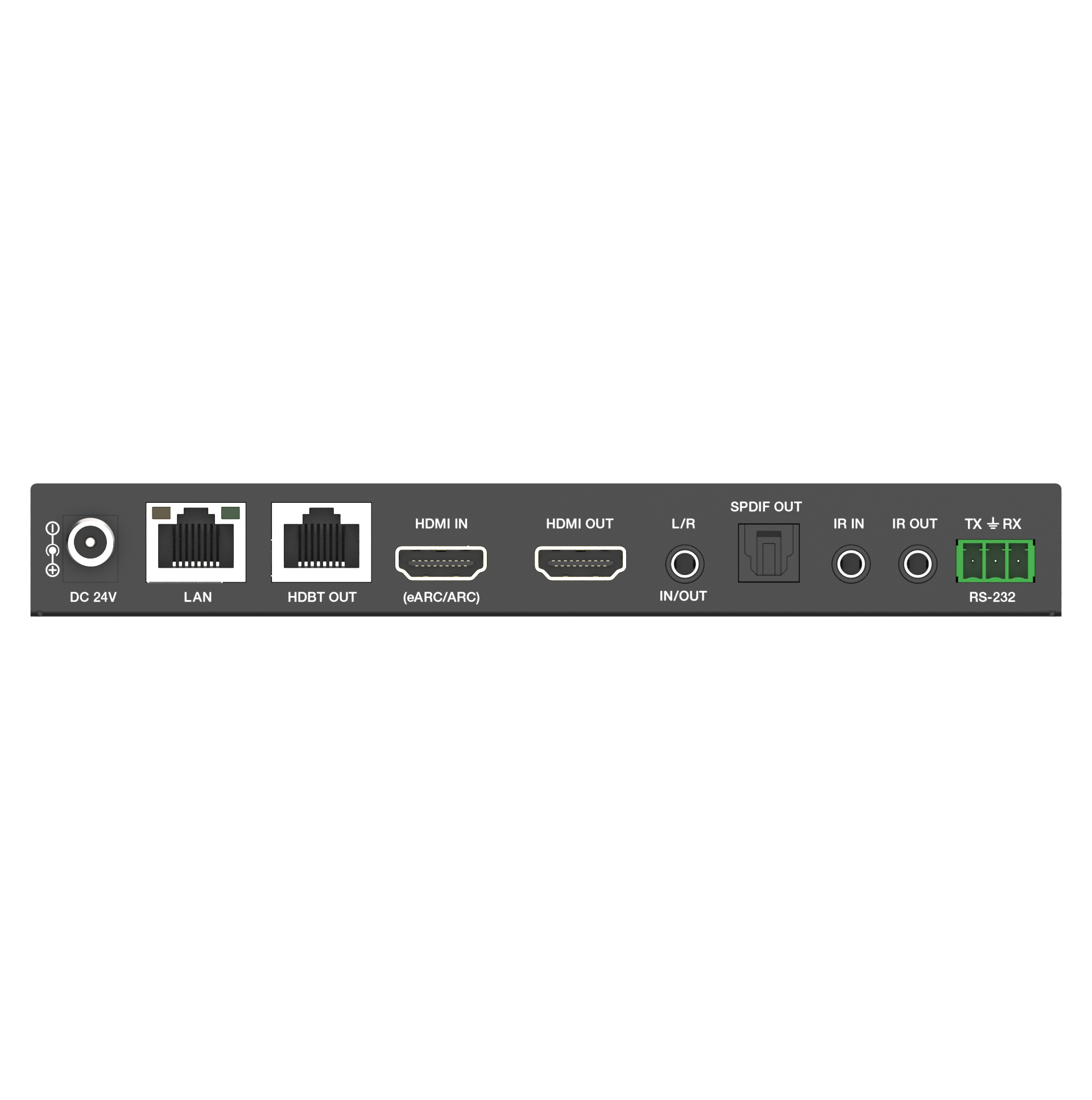

Transmitter
Input 1x HDMI IN [Type A, 19-pin female]
Output 1x HDMI OUT [Type A, 19-pin female]
1x HDBT OUT [RJ45, 8-pin female]
1x SPDIF OUT [S/PDIF]
1x L/R OUT [3.5mm Stereo Mini-jack]
Control 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [3pin-3.81mm Phoenix jack]
1x SERVICE [Mini-USB, Update port]
1x USB HOST [USB Type B]
2x USB DEVICES [USB Type A]
1x LAN [RJ45]

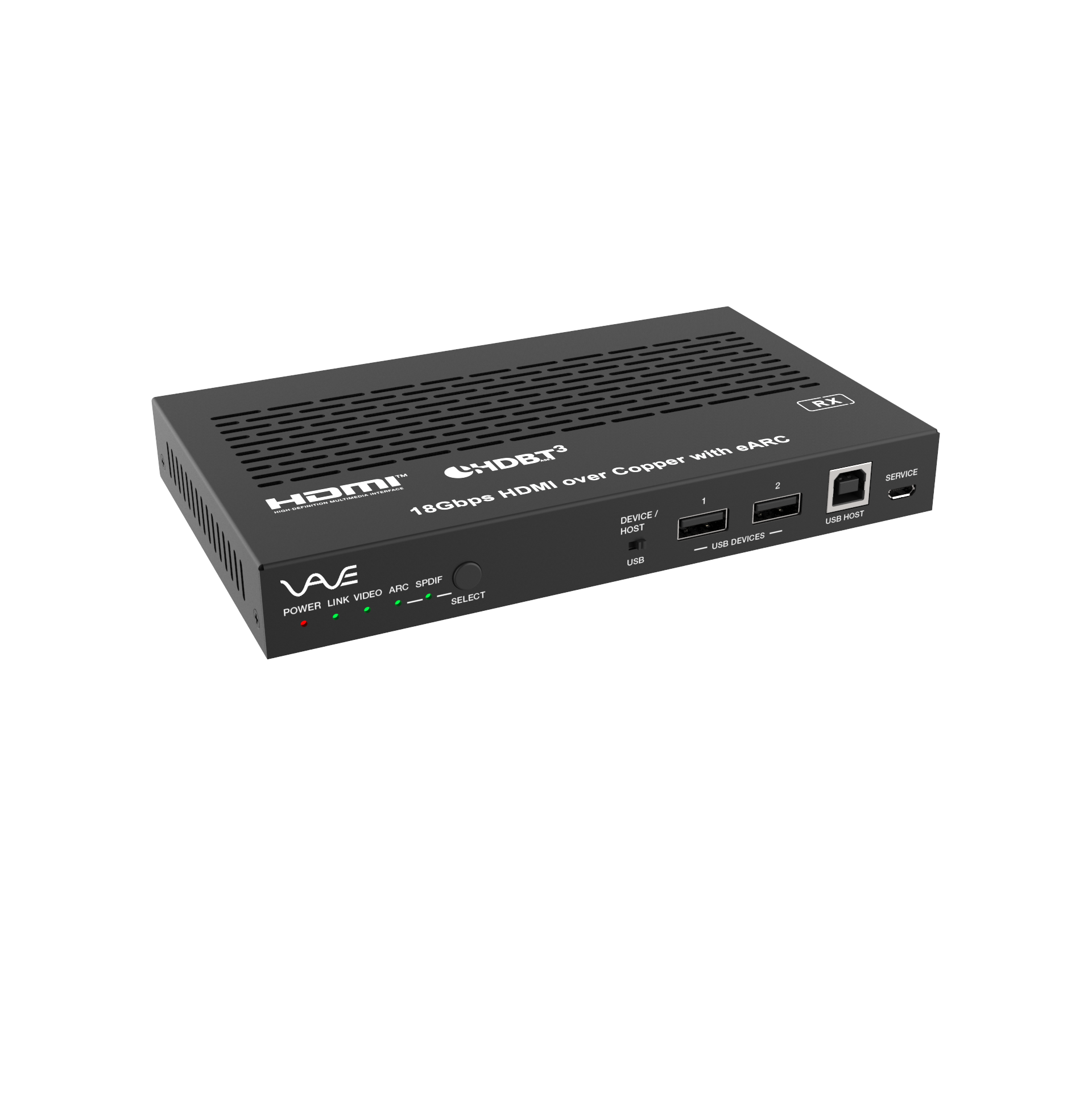

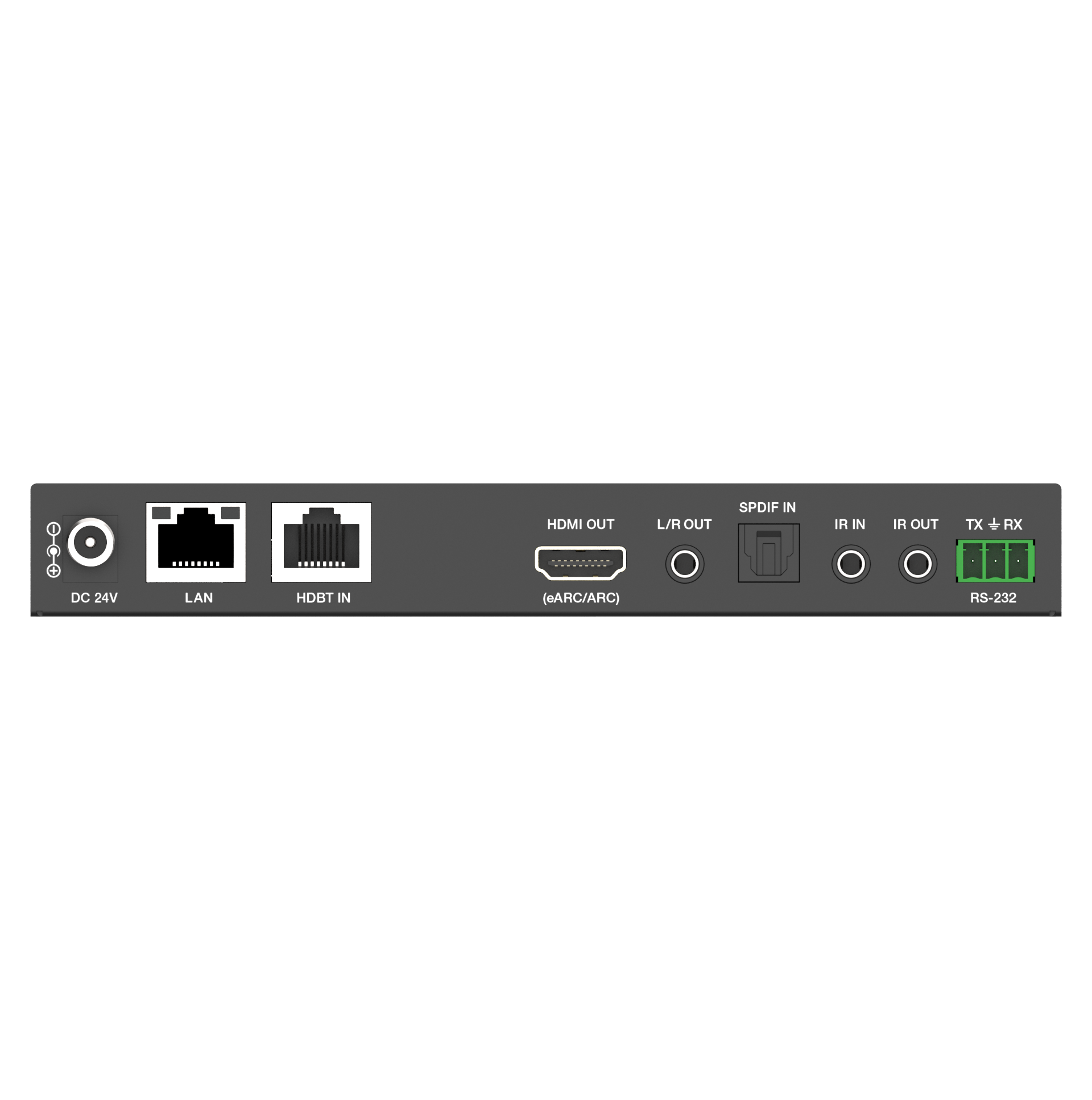

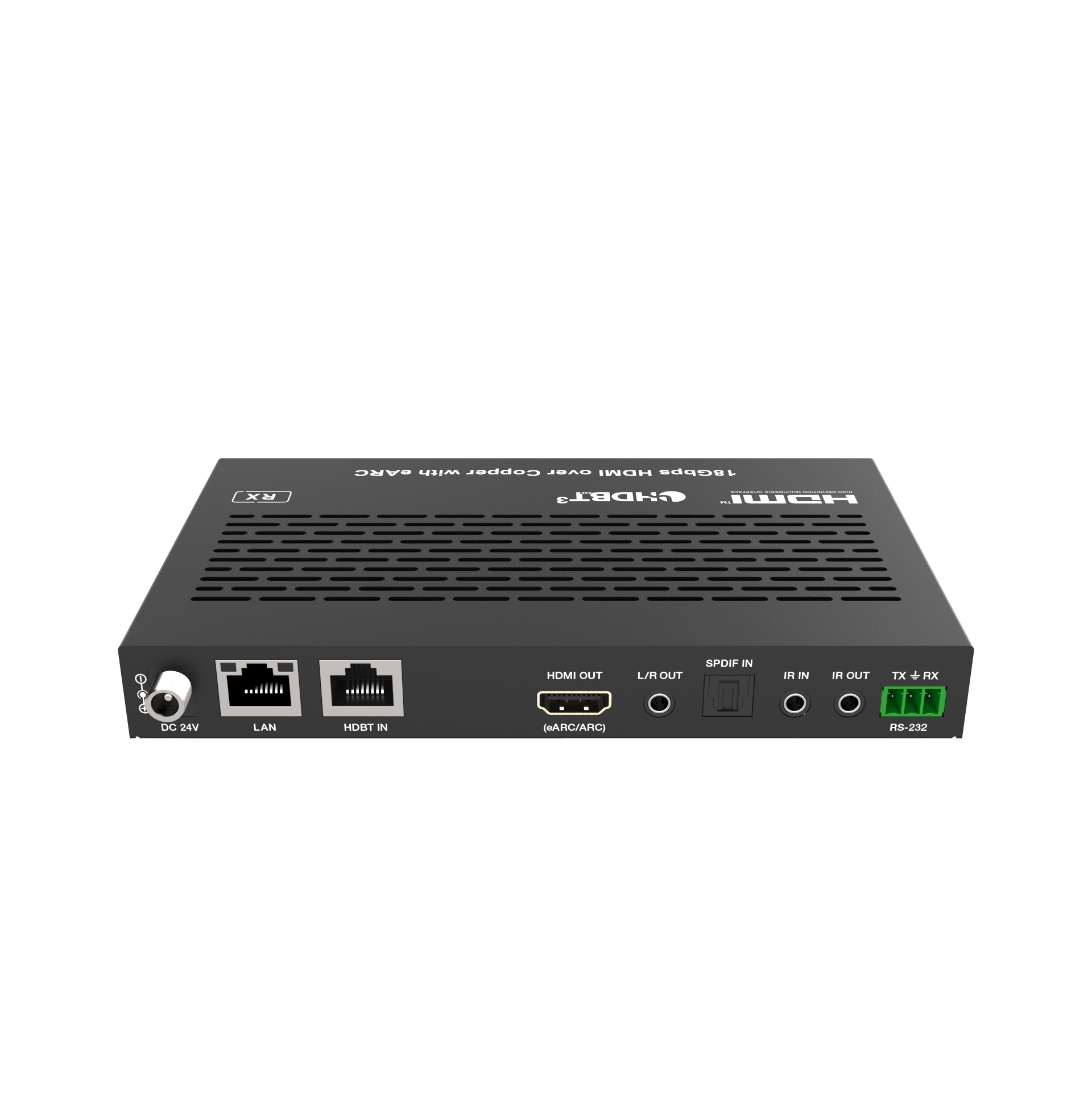

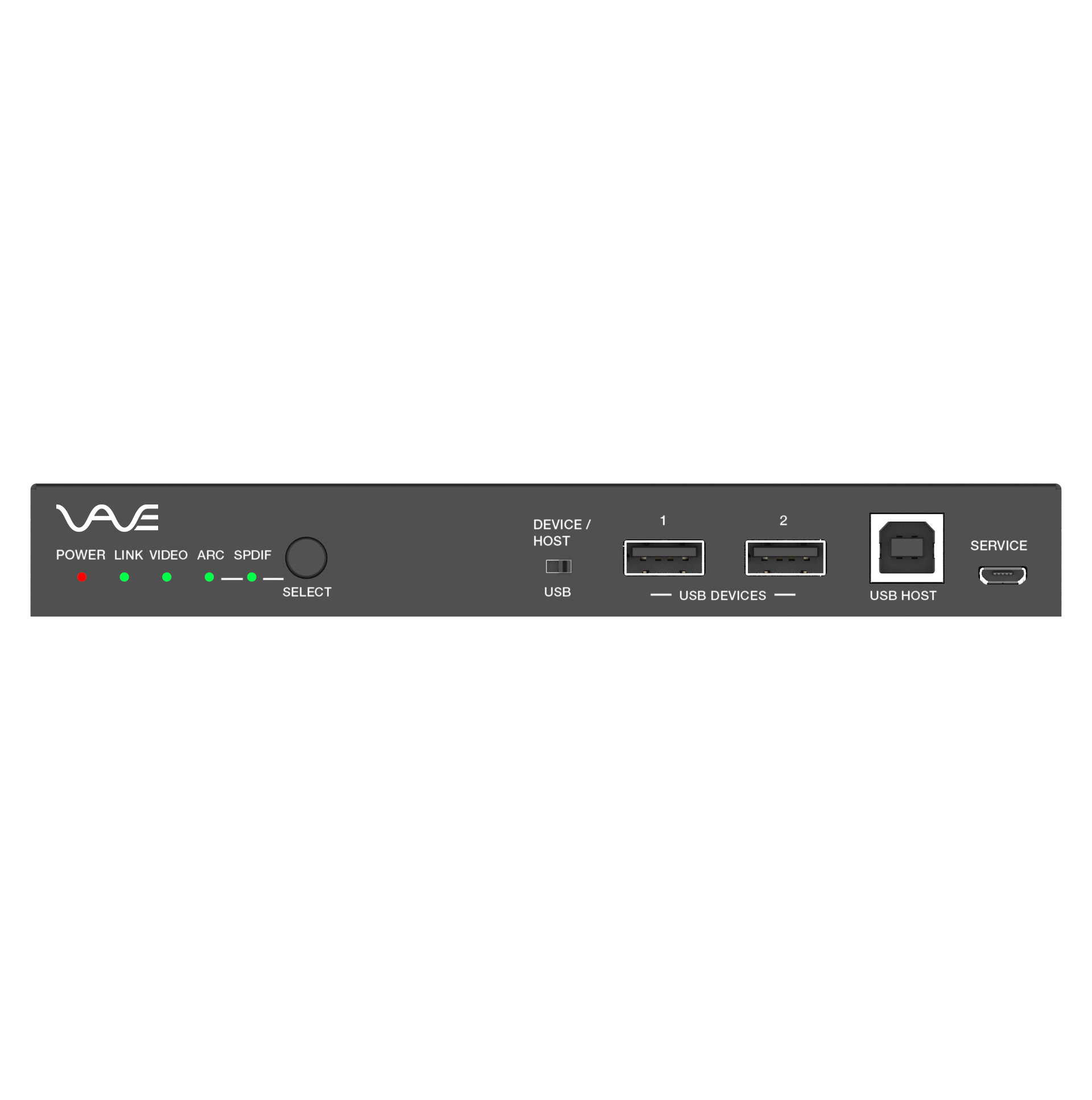

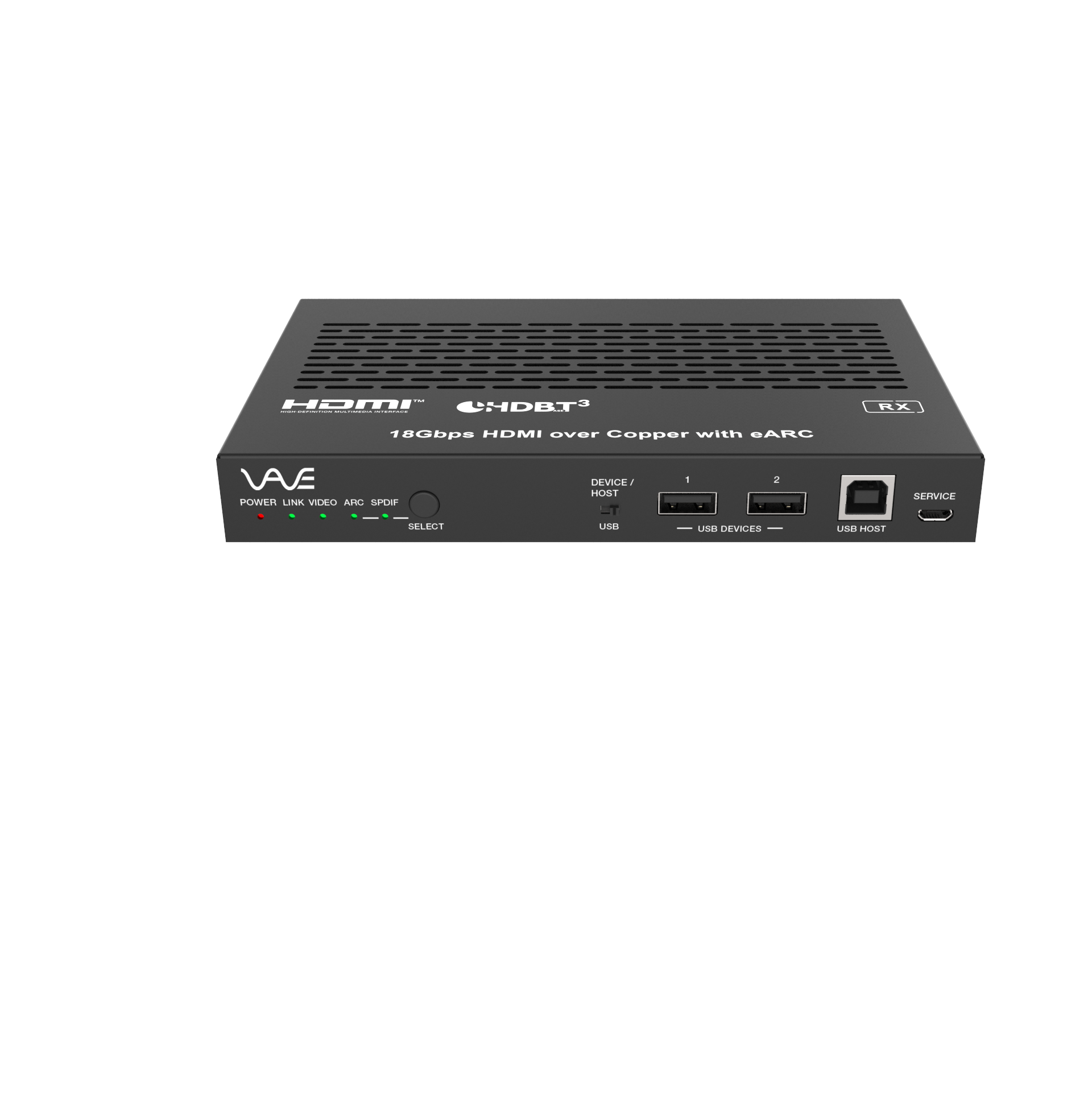

Receiver
Input 1x HDBT IN [RJ45, 8-pin female]
1x SPDIF IN [S/PDIF]
Output 1x HDMI OUT [Type A, 19-pin female]
1x L/R OUT [3.5mm Stereo Mini-jack]
Control 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [3pin-3.81mm Phoenix jack]
1x SERVICE [Mini-USB, Update port]
1x USB HOST [USB Type B]
2x USB DEVICES [USB Type A]
1x LAN [RJ45]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 170mm [W] x 102mm [D] x 22mm [H]
Weight Transmitter: 425g, Receiver: 437g
Power Supply Input: AC 100 – 240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption 15.36W (POC)
Operation Temperature 32°F – 104°F / 0°C – 40°C
Storage temperature -4°F – 140°F / -20°C – 60°C
Relative Humidity 20- 90% RH (no condensation)
