EX-HDBT-100-U - VAVE HDMI 8K 40 Gbps HDBaseT Extender 100 meters with USB/eARC/Ethernet
Tags : HDBaseTExtender, 18GbpsTransmission, 4K120mRange, FullHD150mRange, 4KHDMIExtender, VideoTransmissionSolutions, AVOverLongDistances
รายละเอียดสินค้า
EX-HDBT-100-U - VAVE HDMI 8K 40 Gbps HDBaseT Extender 100 meters with USB/eARC/Ethernet This 8K HDMI & USB over HDBaseT Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 90m/295ft via a single CAT 6A/7 cable. Video
EX-HDBT-100-U - VAVE HDMI 8K 40 Gbps HDBaseT Extender 100 meters with USB/eARC/Ethernet

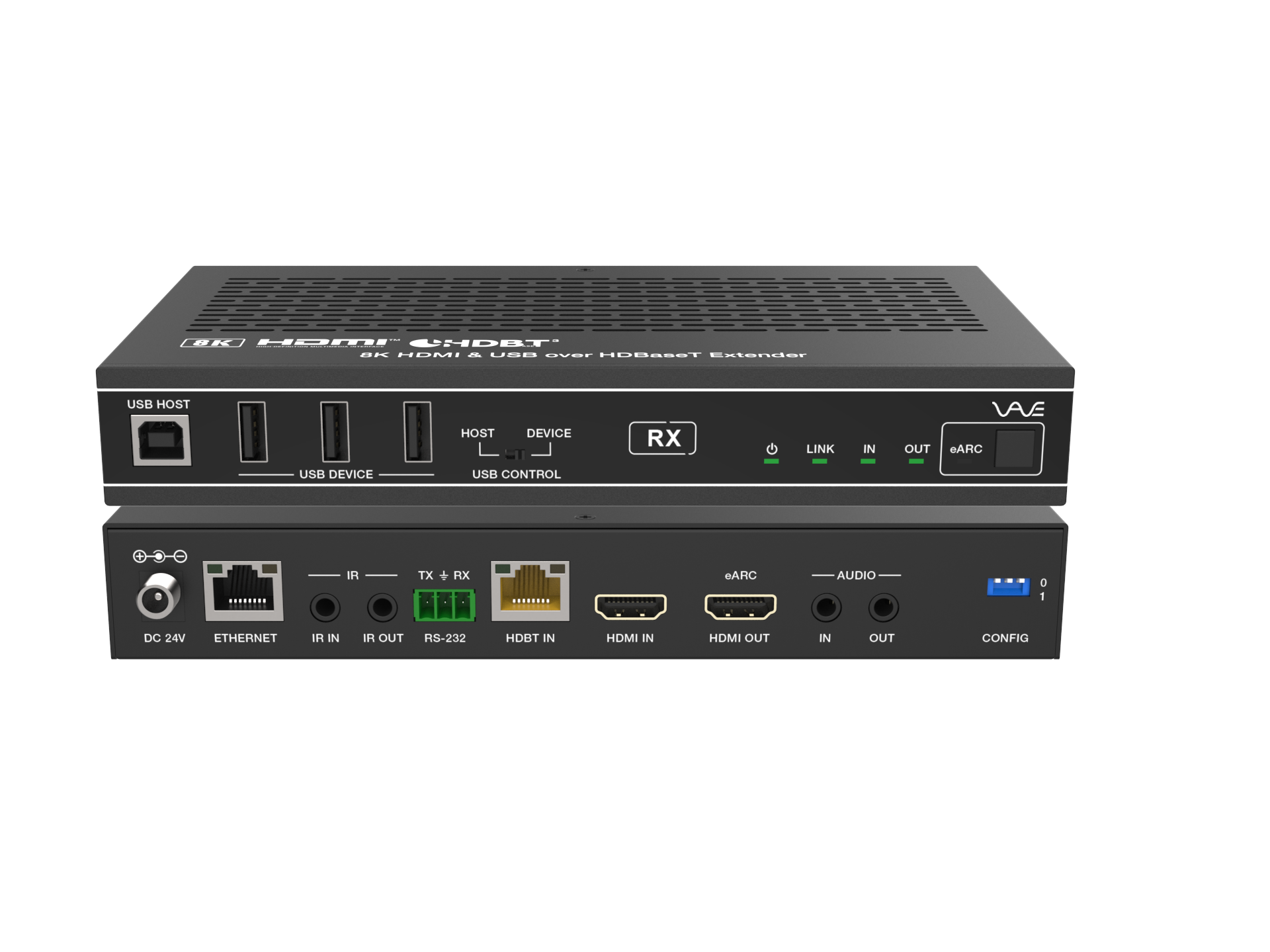

This 8K HDMI & USB over HDBaseT Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 90m/295ft via a single CAT 6A/7 cable. Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, 4K60Hz 4:4:4. It supports eARC/ARC from RX’s HDMI output pass-through to TX’s HDMI input or de-embedding to TX’s HDMI output port. Besides, it supports USB 2.0 signal transmission (Host/Device is configurable) and bidirectional POC function. The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for home/commercial application.
Feature :
- HDMI 2.1, HDCP 2.3 and HDBaseT 3.0 compliant
- Support up to 40Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- Support all industry standard video resolutions including VGA-WUXGA and 480i-8K30
- VRR, FVA, ALLM support
- HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Signal transmission distance can be extended up to 90m/295ft via a single CAT 6A/7 cable
- Support eARC/ARC from RX to TX sound system
- Advanced EDID management through EDID DIP switch
- With CONFIG DIP switch, allowing the RS-232 serial port to feature different functions
- Support USB2.0 transmission (with speeds up to 350Mbps), Host/Device is configurable
- Bi-directional Ethernet (1Gb), analog audio, IR & RS-232 signal pass-through
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
- Bi-directional 24V POC function
Specifications
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | Up to 40Gbps FRL and 18Gbps TMDS | |||
| Video Resolution
USB Bandwidth |
Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | |||
| Up to 350Mbps | ||||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HL | |||
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 | |||
| Color Depth | 8/10/12-bit | |||
| Audio Formats | HDMI: PCM2.0, LPCM5.1, LPCM7.1,
(32K/44.1K/48K/88.2K/96K/176.4K/192K)(16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X |
|||
| Analog: PCM 2.0 48K | ||||
| IR Level | 5Vp-p/12Vp-p | |||
| IR Bandwidth | 20K – 60KHz | |||
| Transmission Distance | MAX: CAT 6 — 60m/197ft CAT 6A/7 — 90m/295ft | |||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connections | ||||

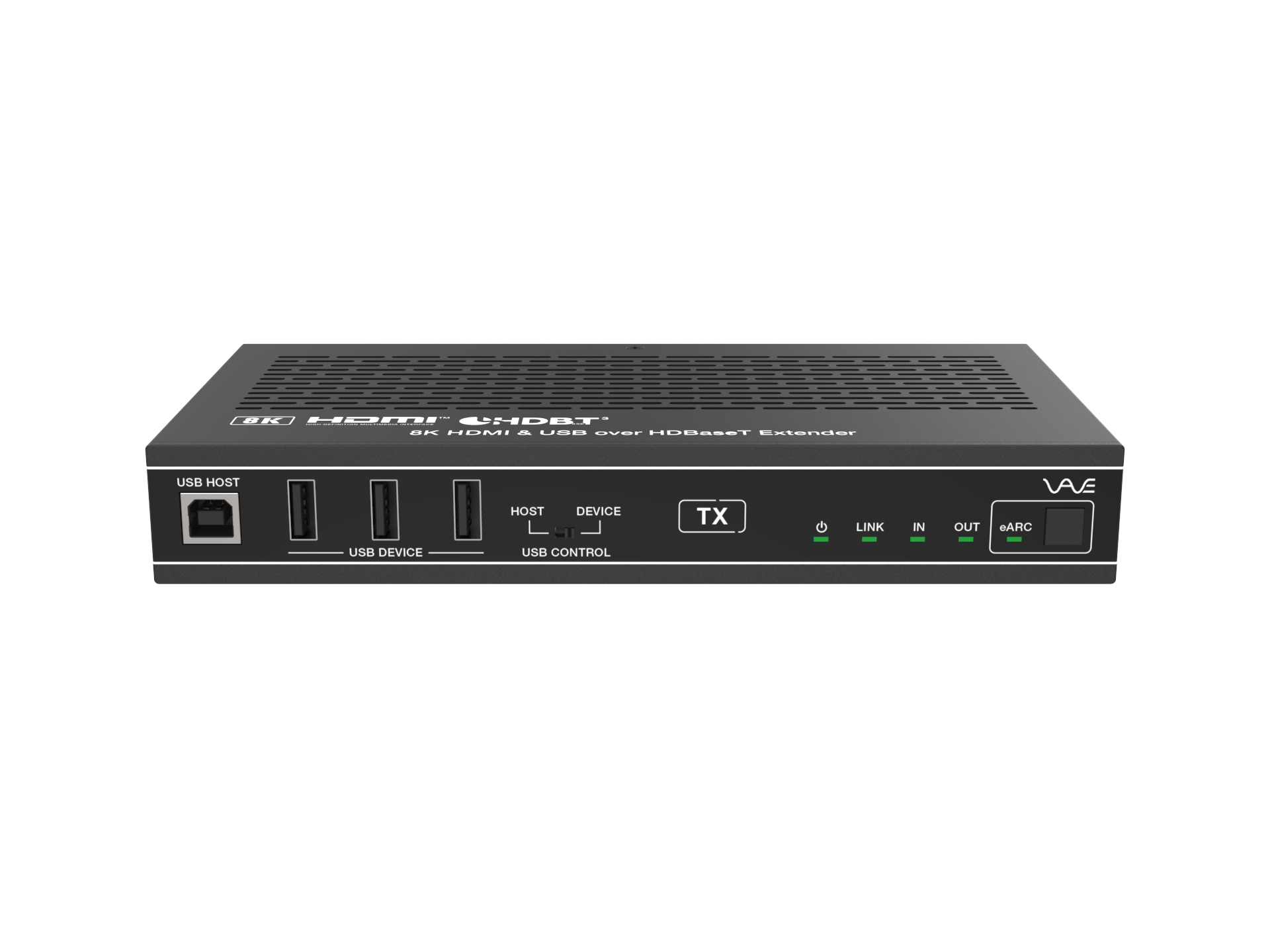

| Transmitter | ||||
| Input | 1 x HDMI IN [Type A, 19-pin female] | |||
| 1 x AUDIO IN [3.5mm Stereo Mini-jack] | ||||
| Output | 1 x HDMI OUT [Type A, 19-pin female] | |||
| 1 x HDBT OUT [RJ45, 8-pin female] | ||||
| 1 x AUDIO OUT [3.5mm Stereo Mini-jack] | ||||
| Control | 1 x IR IN [3.5mm Stereo Mini-jack] | |||
| 1 x IR OUT [3.5mm Stereo Mini-jack] | ||||
| 1 x RS-232 [3pin-3.81mm Phoenix jack] | ||||
| 1 x USB HOST [USB Type B] | ||||
| 3 x USB DEVICE [USB Type A] | ||||
| 1 x ETHERNET [RJ45] | ||||

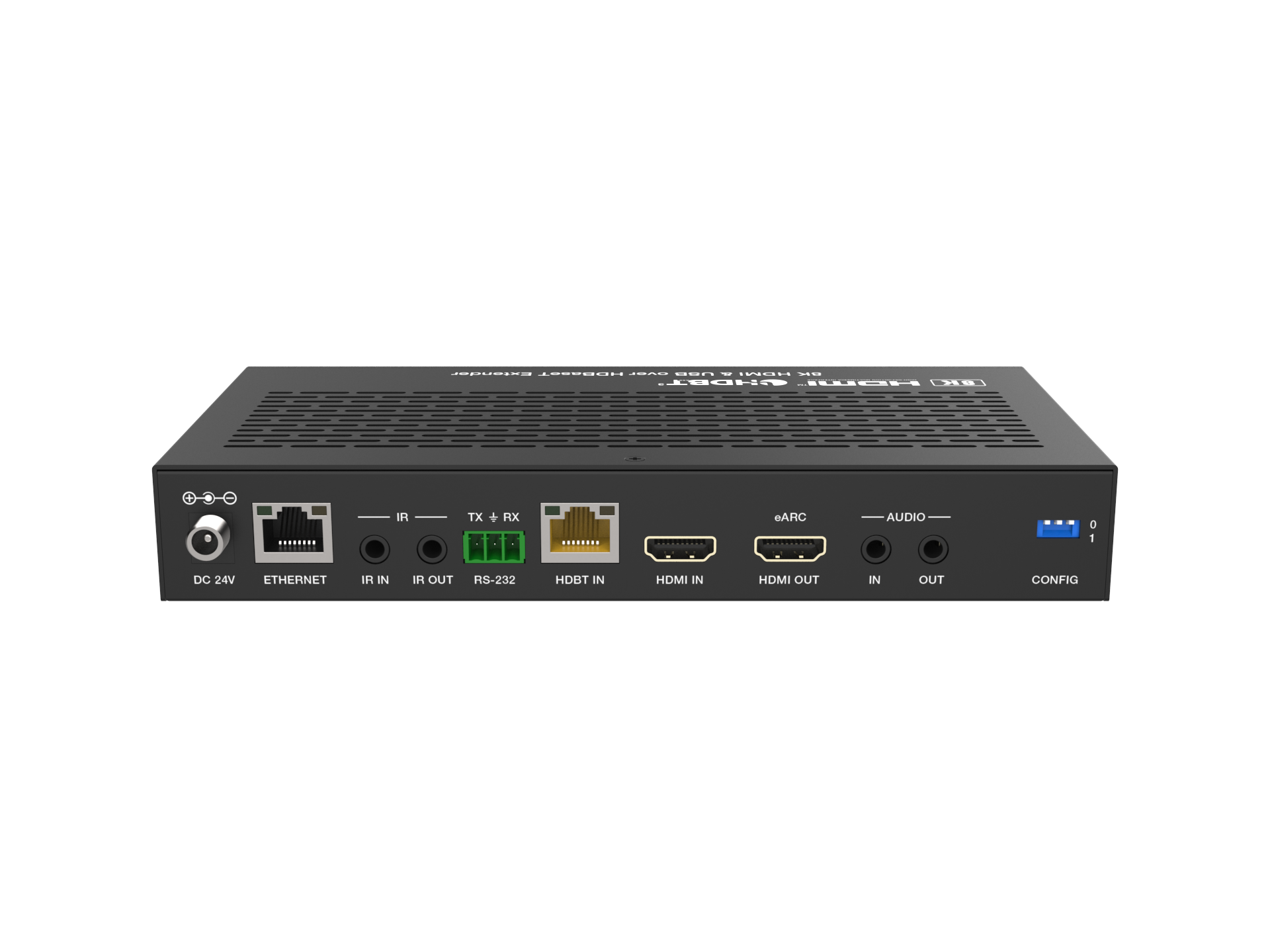

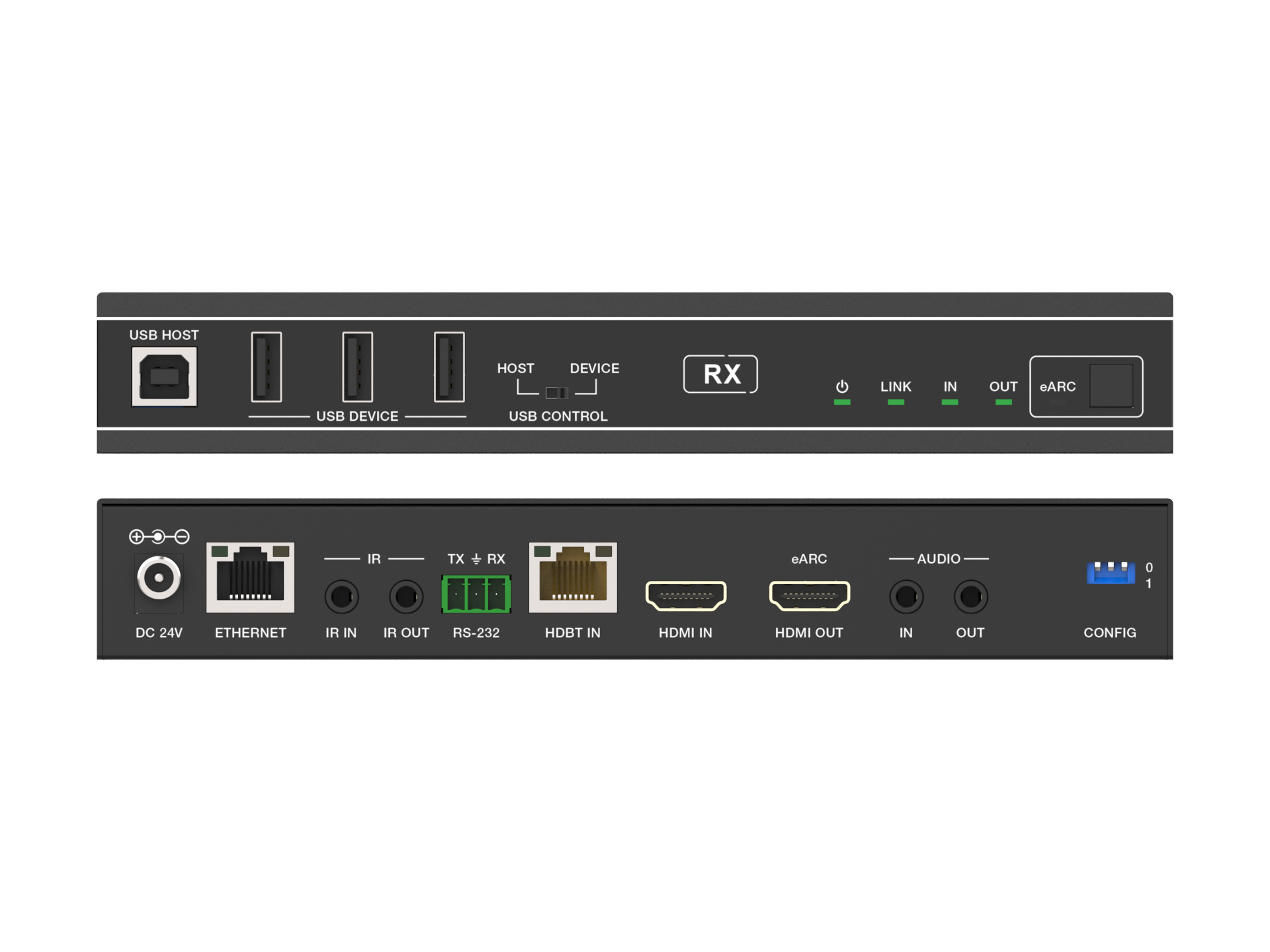

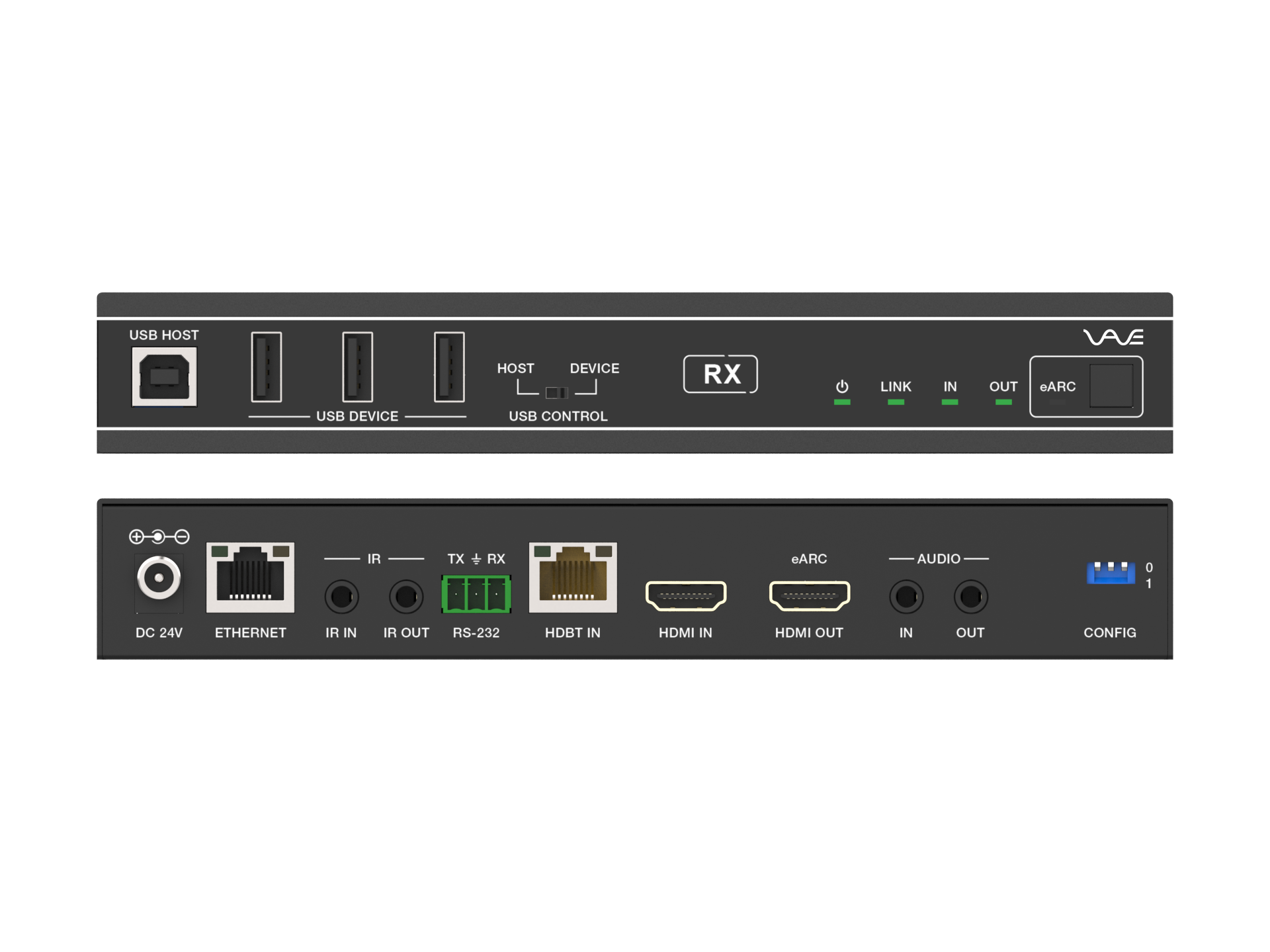

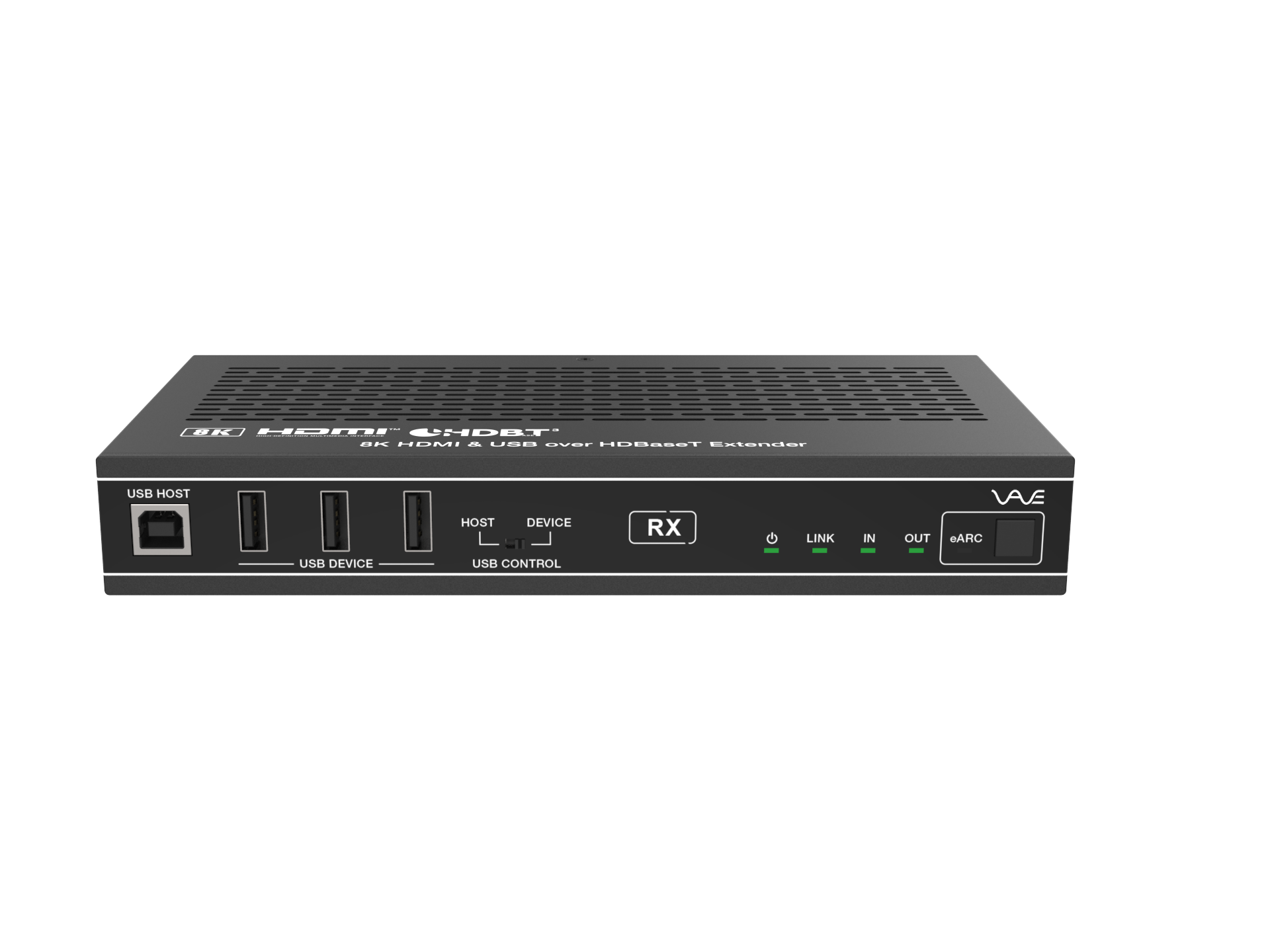

| Receiver | ||||
| Input | 1 x HDMI IN [Type A, 19-pin female] | |||
| 1 x HDBT IN [RJ45, 8-pin female] | ||||
| 1 x AUDIO IN [3.5mm Stereo Mini-jack] | ||||
| Output | 1 x HDMI OUT [Type A, 19-pin female] | |||
| 1 x AUDIO OUT [3.5mm Stereo Mini-jack] | ||||
| Control | 1 x IR IN [3.5mm Stereo Mini-jack] | |||
| 1 x IR OUT [3.5mm Stereo Mini-jack] | ||||
| 1 x RS-232 [3pin-3.81mm Phoenix jack] | ||||
| 1 x USB HOST [USB Type B] | ||||
| 3 x USB DEVICE [USB Type A] | ||||
| 1 x ETHERNET [RJ45] | ||||
| Mechanical | ||||
| Housing | Front Panel — Aluminium Enclosure; Case — Metal Enclosure | |||
| Color | Black | |||
| Dimensions | Transmitter / Receiver: 200mm [W] x 100mm [D] x 30mm [H] | |||
| Weight | Transmitter: 571g, Receiver: 571g | |||
| Power Supply | Input: AC 100 – 240V 50/60Hz | |||
| Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified) | ||||
| Power Consumption | Total power consumption: 20.4W (POC) TX/RX full load: 9.36W/9.84W; TX/RX no-load: 2.46W/3.36W |
|||
| Operation Temperature | 32 – 104°F / 0 – 40°C | |||
| Storage temperature | -4 – 140°F / -20 – 60°C | |||
| Relative Humidity | 20 – 90% RH (no condensation) | |||
| Resolution / Cable Length | 8K30 – Feet / Meters |
4K60 – Feet / Meters |
4K24 – Feet / Meters |
1080P60 – Feet / Meters |
| HDMI IN / OUT | 9.8ft / 3m | 16ft / 5m | 32ft / 10m | 66ft / 20m |
| The use of “Premium High Speed HDMI” cable is highly recommended. | ||||
