EX-HDBT-40-WP-USBC - VAVE HDMI/USB-C 4K 18 Gbps Wall Plate 40m with USB (US 1-Gang)
Tags : HDBaseTExtender, 18GbpsTransmission, 4K120mRange, FullHD150mRange, 4KHDMIExtender, VideoTransmissionSolutions, AVOverLongDistances
รายละเอียดสินค้า
EX-HDBT-40-WP-USBC - VAVE HDMI/USB-C 4K 18 Gbps Wall Plate 40m with USB (US 1-Gang) The wall plate is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K@50/60Hz 4:4:4. It supports bidirectional RS-232 pass-through, and the RS-232 control signal can be transmitted up to 131ft / 40m. The product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.
EX-HDBT-40-WP-USBC - VAVE HDMI/USB-C 4K 18 Gbps Wall Plate 40m with USB (US 1-Gang)
The wall plate is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K@50/60Hz 4:4:4. It supports bidirectional RS-232 pass-through, and the RS-232 control signal can be transmitted up to 131ft / 40m. The product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.
Feature :
- Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
- HDMI input supports 18Gbps video bandwidth; USB-C input supports 5.4Gbps video bandwidth
- Video resolution up to 4K2K@50/60Hz 4:4:4
- HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable
- Support 3D, HDR10 and Dolby Vision
- HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Support HDMI and USB-C input
- With USB-C charging port
- US one-gang enclosure for Decora-style wall plate openings
- Input signal selection supports automatic mode and manual mode
- Support POE function (only from Receiver to Transmitter)
- Available in white or black coating
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | Display Port 1.2a |
| Video Bandwidth | USB-C: 5.4 Gbps |
| HDMI: 18 Gbps | |
| Video Resolution | 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080P@60Hz)
8-bit (4K@60Hz) |
| HDR | Support |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | Max distance (1080P) : 230ft / 70m over CAT6/6a/7 |
| Max distance (4K): 131ft / 40m over CAT6/6a/7 | |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Transmitter | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| 1 x USB-C | |
| Output | 1 x HDBaseT Out [RJ45, 8-pin female] |
| 1x USB-C (only for charging) | |
| Control | 1x RS-232 [3-pin phoenix connector] |
| 1x FW [Micro USB, Update port] | |

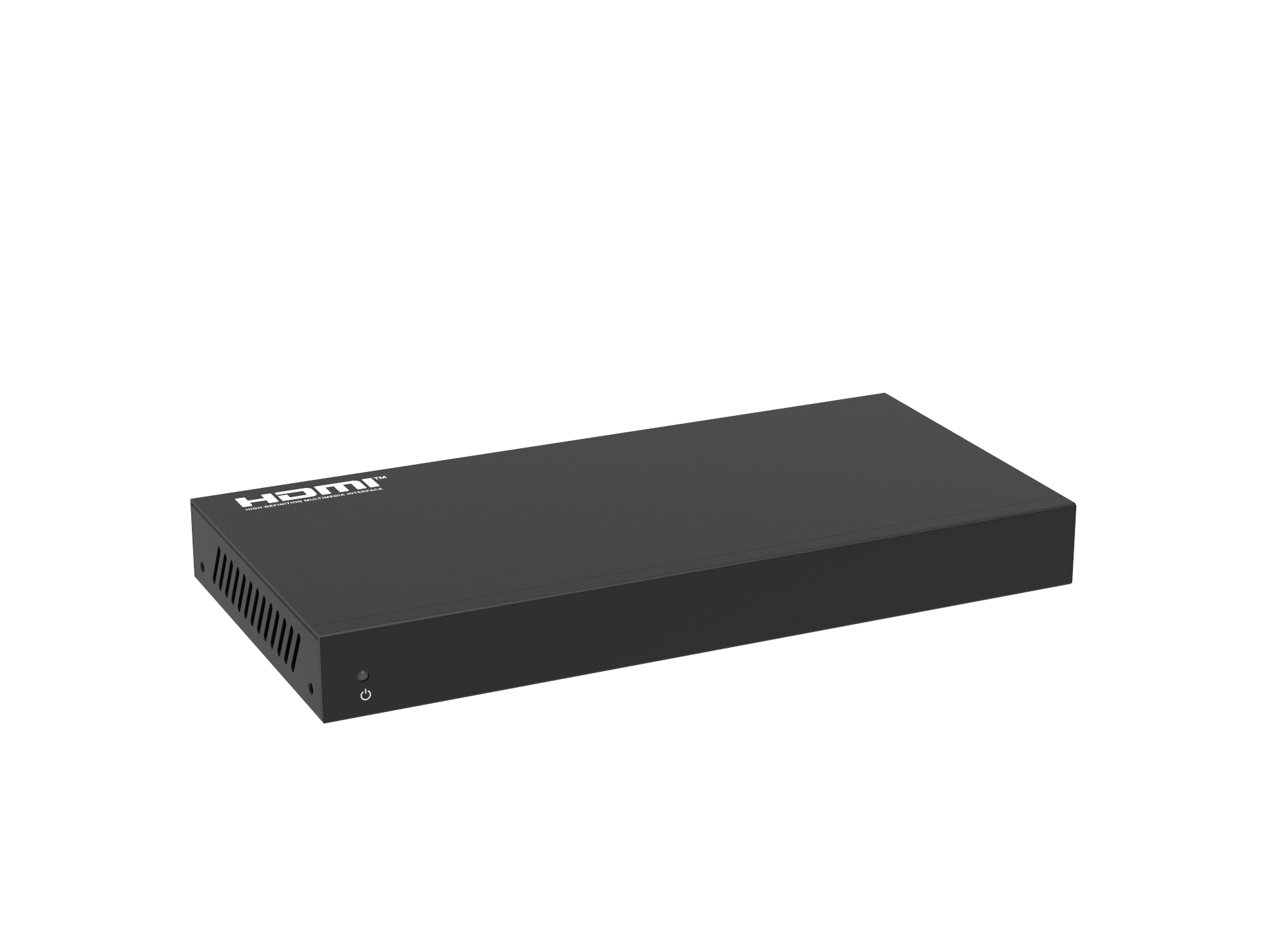

| Receiver | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| 1x HDBaseT IN [RJ45, 8-pin female] | |
| Output | 1x HDMI OUT [Type A, 19-pin female] |
| 1x AUDIO OUT [Phoenix jack] | |
| Control | 1x RS-232 [3-pin phoenix connector] |
| 1x FW [Micro USB, Update port] | |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White / Black |
| Dimensions | Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] |
| Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] | |
| Receiver: 200mm [W] x 102.8mm [D] x 22mm [H] | |
| Weight | Wall plate: 197g, Receiver: 517g |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 7.92W (Max), Receiver: 6W (Max) |
| Operation Temperature | 32°F – 104°F / 0°C – 40°C |
| Storage temperature | -4°F – 140°F / -20°C – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
