HDMI-CAP-4K - VAVE 4K60 HDMI to USB3.0 Video Capture

HDMI-CAP-4K - VAVE 4K60 HDMI to USB3.0 Video Capture
HDMI-CAP-4K - VAVE 4K60 HDMI to USB3.0 Video CaptureHDMI-CAP-4K - VAVE 4K60 HDMI to USB3.0 Video CaptureHDMI-CAP-4K - VAVE 4K60 HDMI to USB3.0 Video CaptureHDMI-CAP-4K - VAVE 4K60 HDMI to USB3.0 Video Capture
รหัสสินค้า SKU-02376
หมวดหมู่ VAVE
ราคา 0.00 บาท
VAT7% สอบถามเพิ่ม
สถานะสินค้า Pre-Order
ลงสินค้า 18 ม.ค. 2568
อัพเดทล่าสุด 18 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : HDMI, 4K60, CAP, HDMI-CAP-4K

รายละเอียดสินค้า

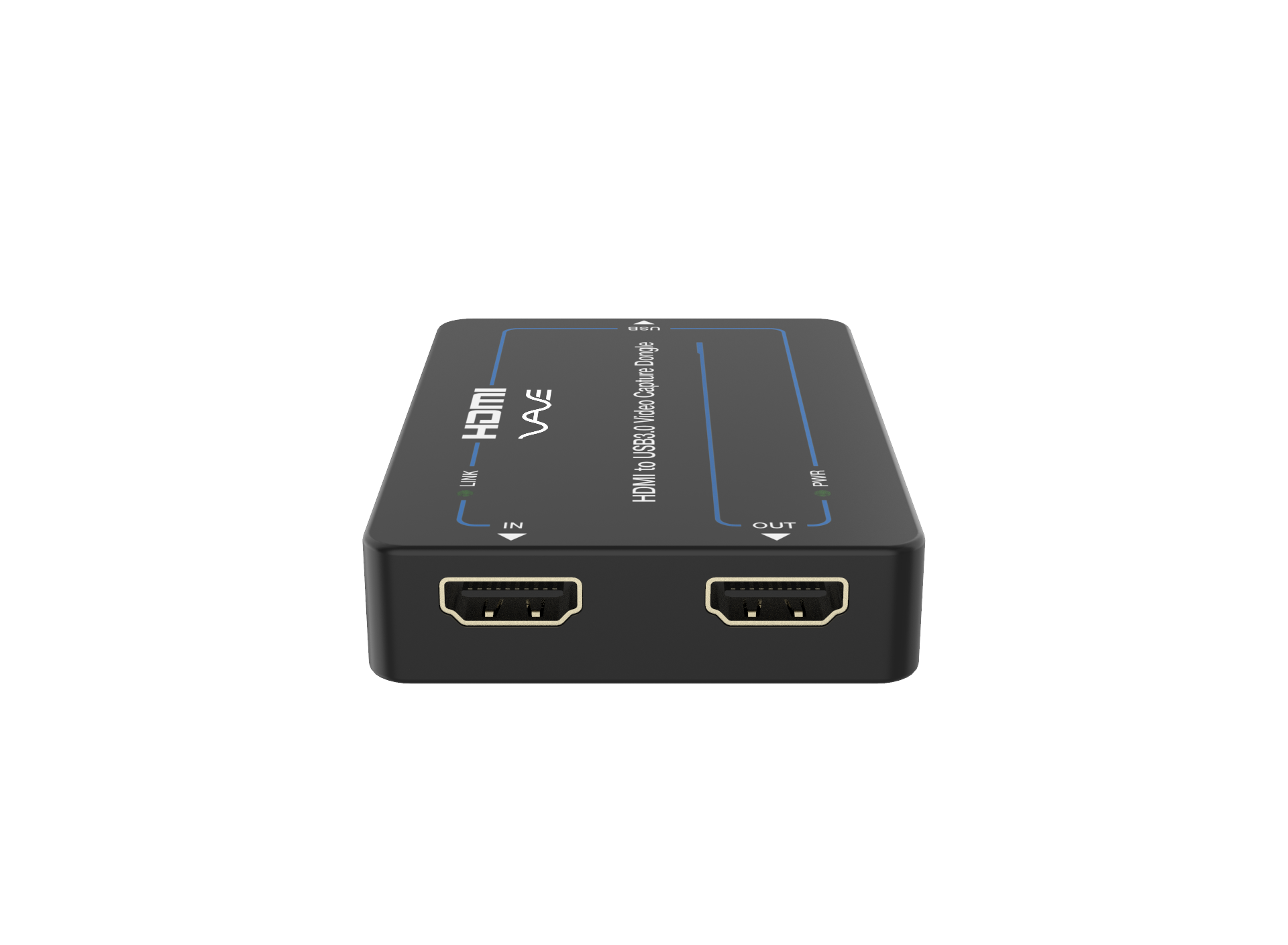

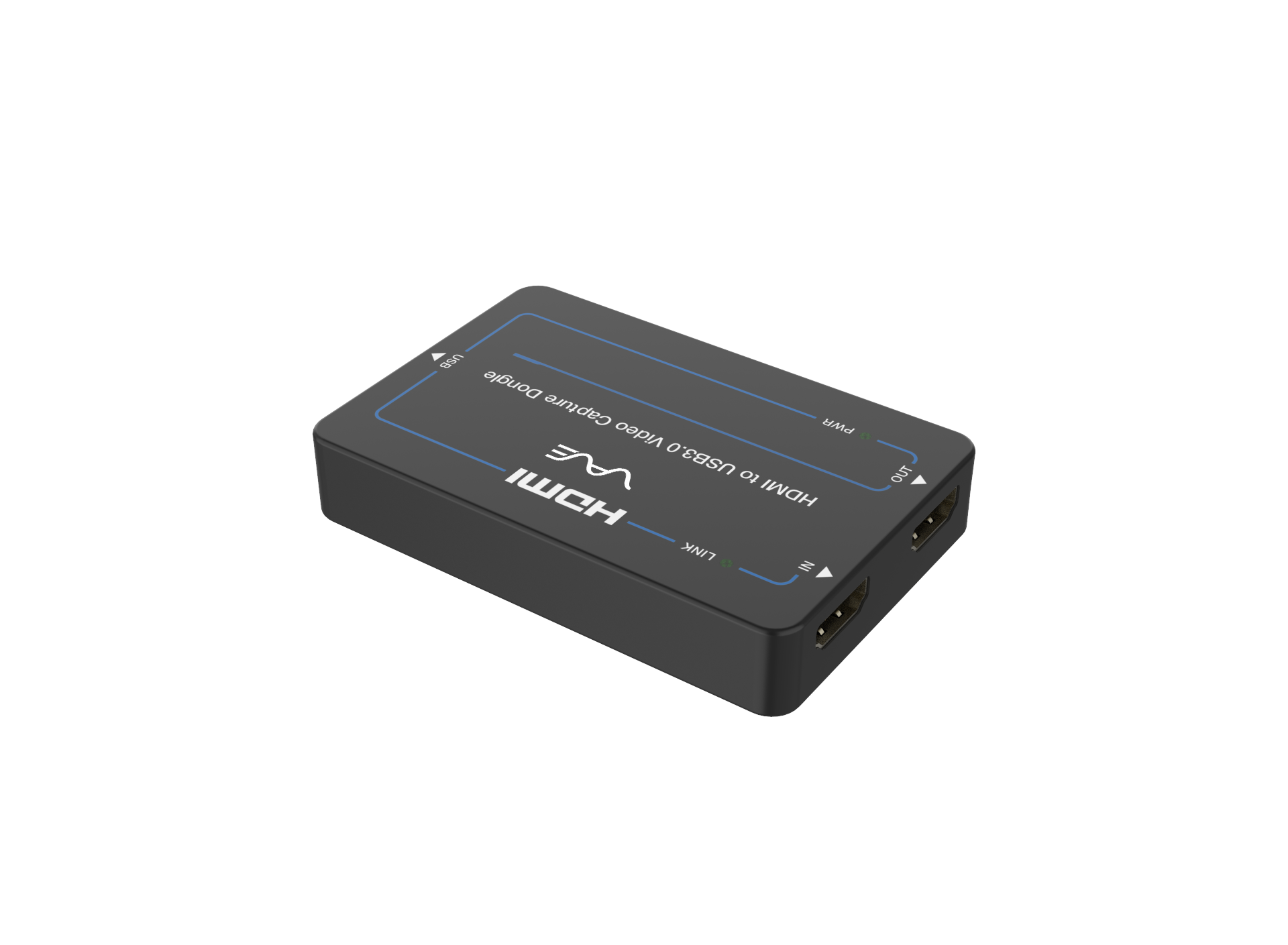

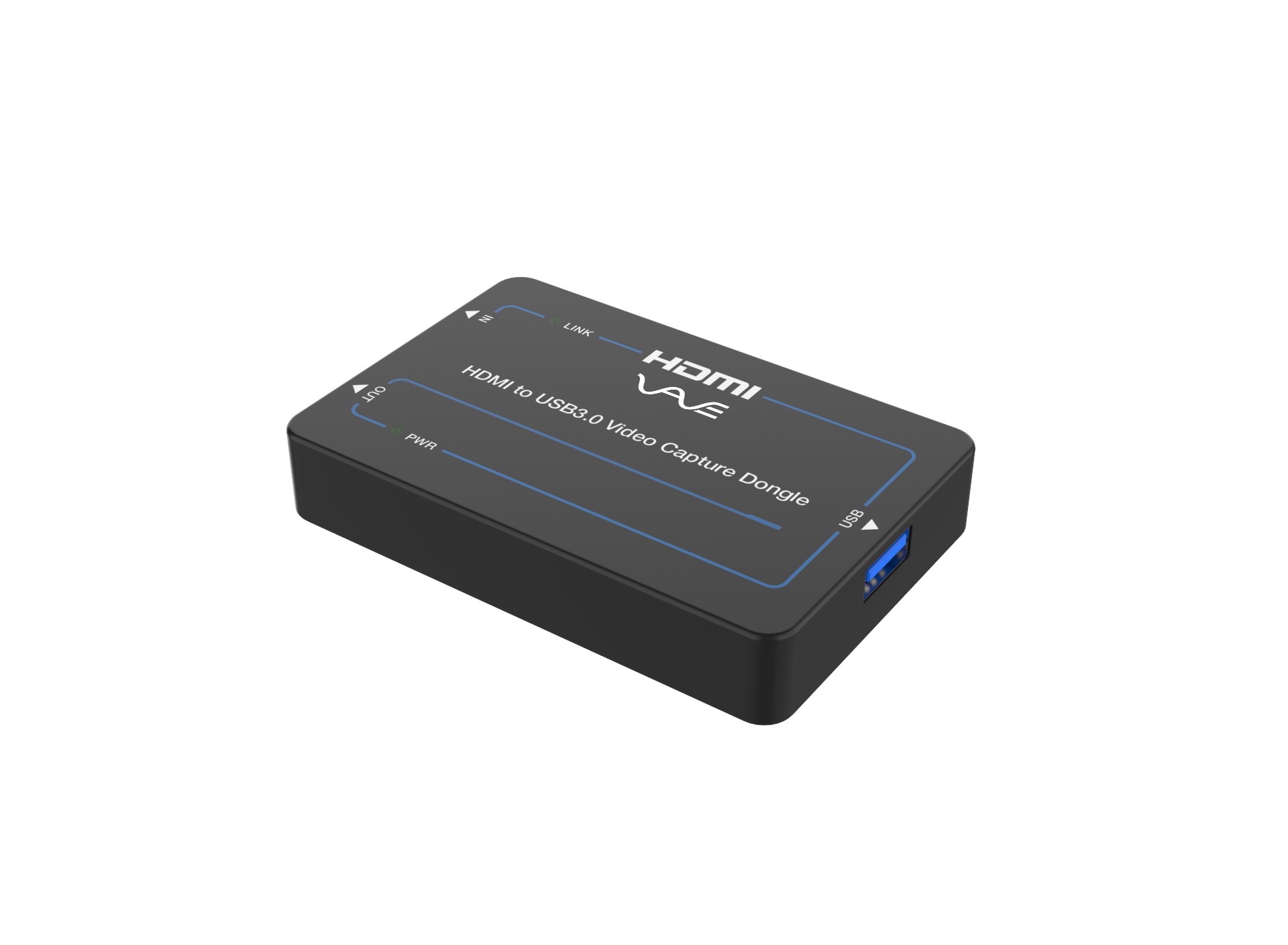

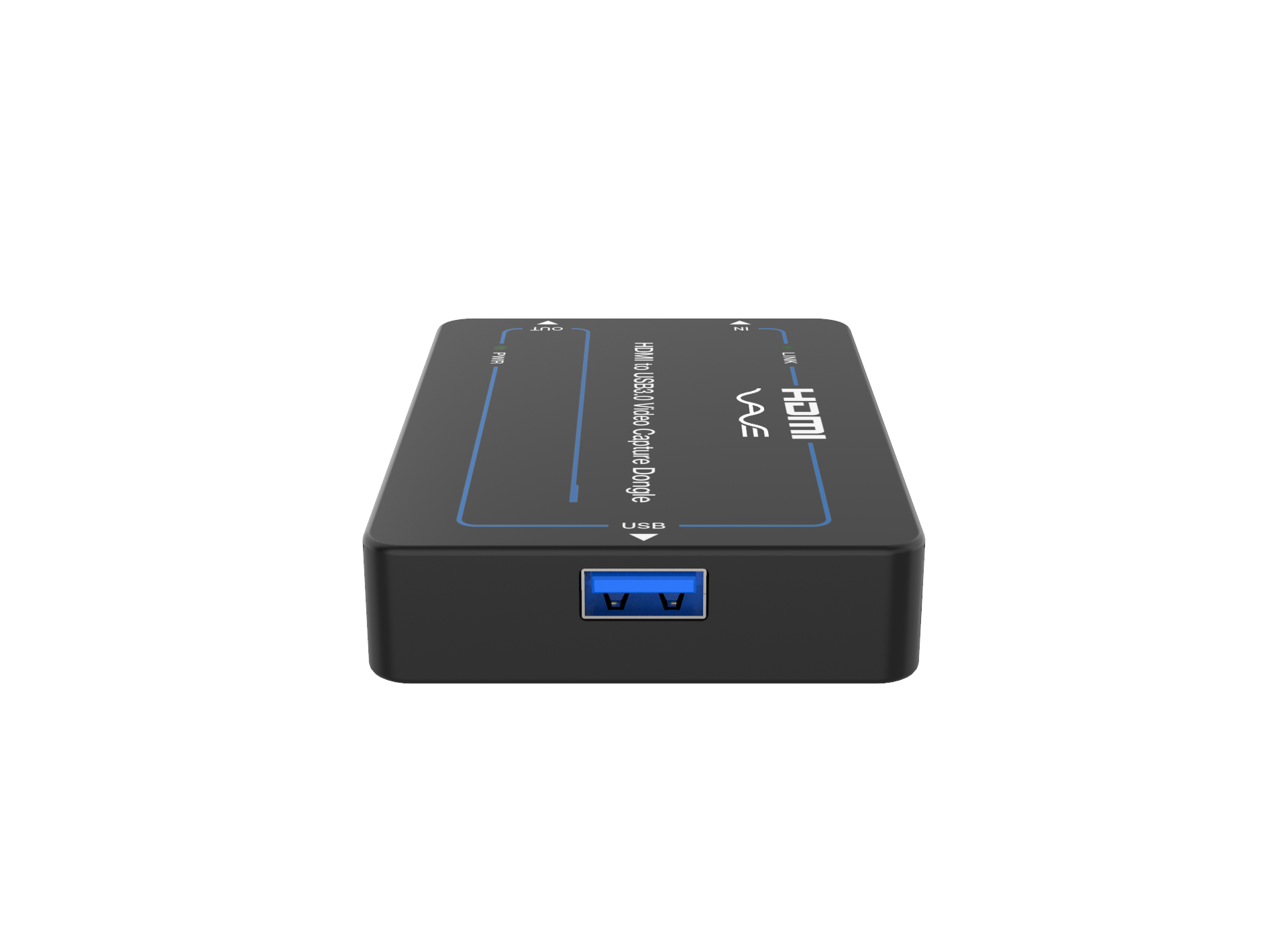

HDMI-CAP-4K - VAVE 4K60 HDMI to USB3.0 Video Capture This HDMI to USB video capture dongle has 1 HDMI INPUT, 1 HDMI LOOP OUT and 1 USB OUTPUT. The HDMI INPUT supports inputting videos with resolution up to 4K60. The USB OUTPUT can be used to power the device and capture videos with resolution up to 1080P60. It can be wildly used in video conference, multi-media broadcasting and other HDMI video capturing occasions.

HDMI-CAP-4K - VAVE 4K60 HDMI to USB3.0 Video Capture



This HDMI to USB video capture dongle has 1 HDMI INPUT, 1 HDMI LOOP OUT and 1 USB OUTPUT. The HDMI INPUT supports inputting videos with resolution up to 4K60. The USB OUTPUT can be used to power the device and capture videos with resolution up to 1080P60. It can be wildly used in video conference, multi-media broadcasting and other HDMI video capturing occasions.

Feature :

  • HDMI 2.0b, HDCP 2.2, USB 2.0 and USB 3.0 compliant
  • 18 Gbps HDMI video bandwidth, 5 Gbps USB video bandwidth
  • HDMI INPUT video resolution reaches up to 4K2K@60Hz;
  • USB OUTPUT video resolution has a range between 480i to 1080p60Hz
  • Support 4K2K@60Hz downscaling to 1080p60Hz
  • Support 4K60 4:4:4 HDMI loop out
  • Operative in Windows, Linux and OS X
  • USB transmission speed up to 300~350Mb/s
  • Compatible with VLC, OBS, XSPLIT, AMCAP and other video capturing software.
  • Compact in design, plug and play

Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth HDMI: 18 Gbps; USB: 5 Gbps
Video Resolution Up to 4K2K@60Hz 4:4:4
Video Compression Video will be in YUV2 with no compression if outputting via a USB 3.0 port;
Standards Video will be compressed in MJPEG if outputting via a USB 2.0 port
USB OUTPUT Support 4K24/25/30/50/60 INPUT down scaling to 1080P OUTPUT;
Resolution For resolutions lower than 1080P, INPUT keeps the same as OUTPUT
Color Depth 8/10/12-bit
Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDMI Audio Format PCM 2.0
USB Audio Format PCM 2.0
USB Version USB 3.1 GEN 1
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Input 1x HDMI Type A [19-pin female]
Output 1x HDMI Type A [19-pin female]
1x USB Type A [female]
Mechanical
Housing Plastic Enclosure
Color Black
